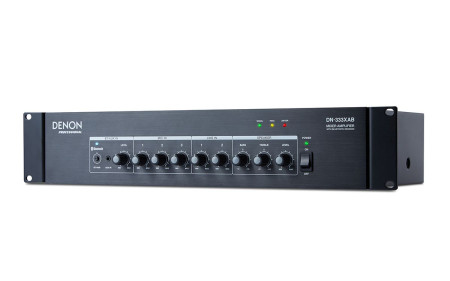

Perfect for driving in-ceiling or wall-mounted speaker systems, the DN-333XAB features 120 watts of built-in Class D amplification at ultra-low distortion for exceptional clarity. Dedicated mixing controls for three XLR+1/4-inch combination microphone inputs, two pairs of stereo line level RCA jack inputs, and a front-panel 1/8-inch (3.5mm) auxiliary input gives users the ability to create a seamless blend of audio from a plethora of source types. A front-panel Bluetooth pairing control with LED status indicator provides a fast and simple wireless connection to smartphones and tablets. A quick-responding limiter eliminates the negative audible effects of excessively high input signals from microphones or playback material.
Denon SplitMix6 Features• Audio mixer with Bluetooth receiver and 120 Watt amplifier
• Accepts & mixes all common audio input types
• Independent volume controls for mic, line and Bluetooth inputs
• (3) XLR+1/4" combo mic inputs with selectable +15V phantom power
• (2) RCA line level stereo inputs; front panel 1/8" (3.5mm) Aux input
• Built-in limiter automatically prevents erratic audio sources from clipping

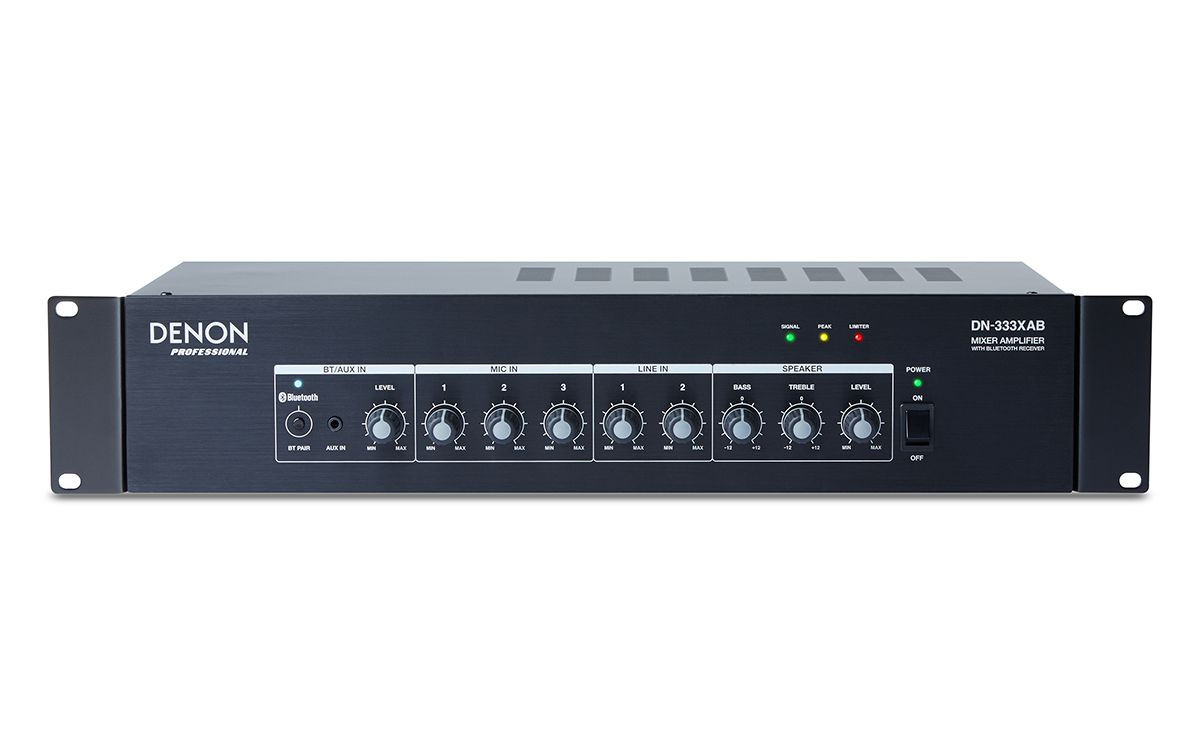

• Front panel Bluetooth pairing control with LED status indicator
• Master level control with system Bass and Treble adjustments
• Euroblock connections for Common, 4 Ohm transformer bypass, 70V, 100V, Alarm, Chime and Mic 1 Priority Ports.
• RCA line-level send-return connections
• Stereo RCA Aux outputs
• Space-saving 2RU design
Inputs• Mic In: 3 XLR-TRS connector
• Line In: 2 RCA connectors
• Aux In: 1/8" TRS Input
Outputs• Aux Out: RCA connector
• Speaker Out: Euroblock connector
• 4 O, 70V Line, 100V Line
Control Ports• Alarm/Chime/Mic 1 Priority Port: Euroblock connector
Frequency Response• Line: 60 Hz - 20 kHz (-3 dB)
• Mic: 120 Hz - 20 kHz (-3 dB)
• S/N Ratio: >90dB
• THD <0.1%
• Power Amplifier 120W (RMS) Class D
• Aux Output Level 0 dBV
• Bluetooth Specifications
• Version: 3.0
• Supported Profiles: A2DP
• Maximum Transmission Power: Class 3, +4 dBm
• Transmission Frequency: 2.4 GHz
• Transmission Range: Up to 100 feet / 30.5 meters
• Receiver Sensitivity: < -70 dBm @ 0.1% BER
Power• Connection: Standard IEC (switching power supply)
• Input Voltage: 100-240V AC, 50/60Hz
• Dimensions (width x depth x height): 19" x 8.25" x 3.75", 48.3 cm x 21 cm x 9.5 cm
• Weight: 12.85 lbs 5.8 kg

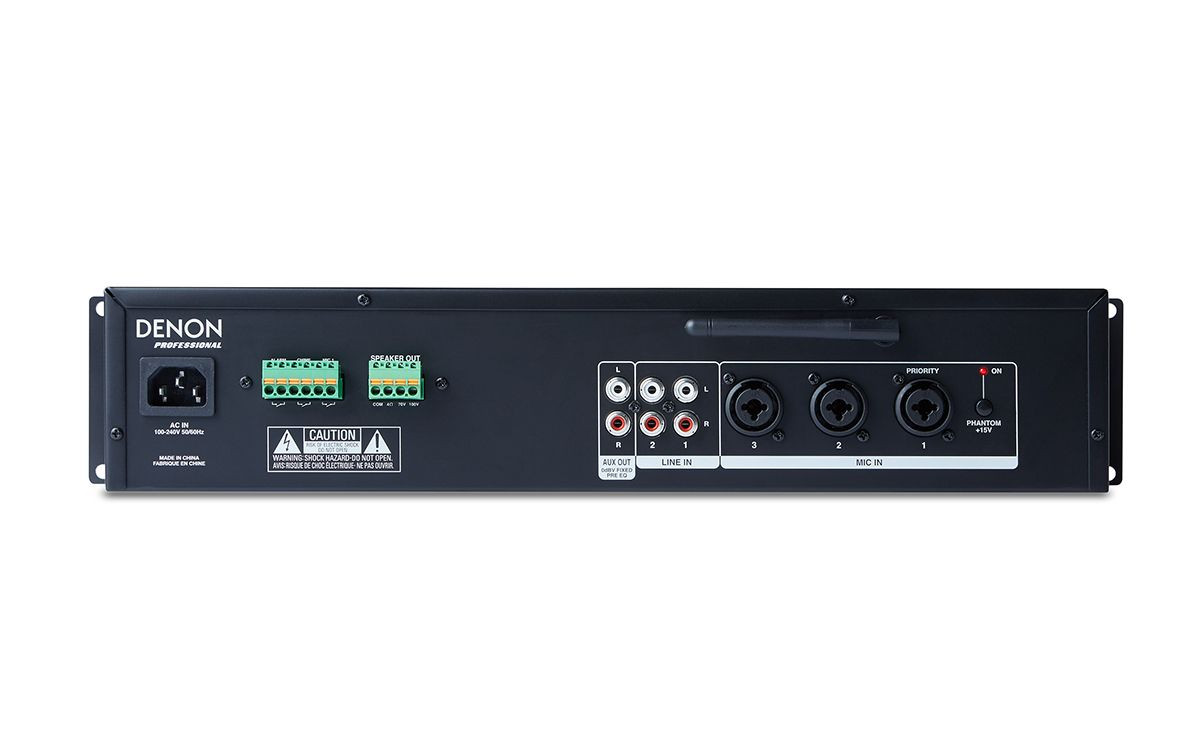

The DN-333XAB output section offers detachable Euroblock 70V and 100V outputs with a 4-ohm transformer bypass output, as well as Chime, Alarm, and Mic 1 priority facilities. An RCA line-level send and return connector lets the installer integrate external audio processors, if desired. The compact 2RU unit fits neatly with other rack-mounted equipment for an integrated system appearance, or may sit on a shelf via the attached rubberized feet.
More than ever before, commercial installations require utmost flexibility without compromising sound quality or increasing complication. That's why we developed the DN-333XAB. It fuses comprehensive source mixing and simple, intuitive operation with professional amplification, in a compact and affordable package that works with virtually every mobile device imaginable.
