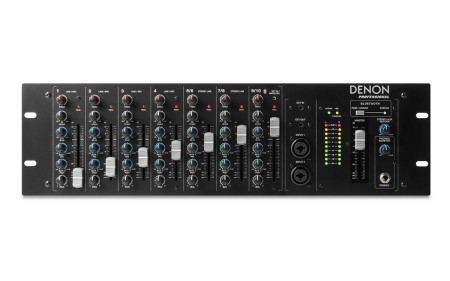

Comprehensive Input FacilitiesThe DN-410X provides you with a wealth of inputs to accommodate every popular type of audio device including A/V sources, microphones and instruments. Channels 1-4 each provide an XLR mic input with available +48v phantom power; a balanced -inch (6.3mm) TRS line input, plus a TRS -inch insert jack for incorporating additional effects (optional). Channels 5-8 have been set as stereo pairs, offering -inch left and right inputs. Channels 7-8 also provide left and right RCA inputs.
Bluetooth FlexibilityYou can stream a wireless stereo audio signal from any Bluetooth device to Channels 9-10 of the DN-410X. Single-button pairing makes connecting an audio source simple, so you can play music during breaks in the presentation, stream audio from a computer during a multimedia event, or even play a specific track from a smartphone to handle a special situation. The articulating Bluetooth antenna provides optimum reception while a dedicated volume control conveniently integrates additional audio sources at the touch of a button.
Input/Output ConvenienceThis is a mixer with a "flexibility-first" approach. With two front-panel XLR inputs, you can quickly adapt to performance changes on the fly without reaching behind their rack of A/V equipment. The DN-410X puts an end to snaking cables from front to back, reaching around to the back and blindly guessing at the input, or worst of all, un-mounting the mixer to get at the jacks you need.
The wealth of input and output types ensure adapter-free connection to loudspeakers or amplification systems: XLR, balanced -inch and RCA. An internal power supply and rigid metal construction complement the intuitive layout with long-term reliability.
Your Reliable SolutionUntil now, commercial A/V professionals had limited choices for integrating the countless audio sources they run into on a daily basis. However, the Bluetooth-enabled DN-410X is the reliable solution that will confidently handle every audio switching and integration requirement that comes along.
Denon DN-410X Features• 4 XLR inputs; 2 in the front for convenience
• Pre-fader and post-fader aux sends; stereo aux return
• Dual multi-segmented LED meters and a Master output fader allow you to easily monitor and control your levels
• Convenient front panel jacks add versatility
• Space-saving 3U rackmount design is perfect for venues and mobile rigs
• Bluetooth streaming with simple single-button pairing
• 4 high-gain mic/line preamps with inserts
• 2-band high and low shelving EQ on every channel
InputsChannels 1-4 (mono)• Mic: XLR with switchable phantom power
• Line: 1/4" Mono
• Insert: 1/4" TRS
• Front: XLR+1/4" combo jacks
• (Channels 1 and 2 onlyoverrides rear jacks
• Channels 5-6 (stereo pair): Line: 1/4" Left, Right
• Channels 7-8 (stereo pair): Line: 1/4" Left, Right, CA: Left, Right
• Channels 9-10 (stereo pair): Bluetooth: Stereo Streaming In, Ext: 1/8" Stereo (front panel), Aux Return: 1/4" TRS Balanced Left, Right
Outputs• Main: 1/4" TRS Balanced Left, Right
• Monitor: 1/4" Left, Right
• Aux Send 1: 1/4"
• Aux Send 2: 1/4"
• Headphones: Stereo 1/4"
• Ext: 1/8" Stereo (front panel
Design3U Rackmount chassis
Detachable power cable
Dimensions• Height: 5.25"
• Depth: 6.25"
• Width: 19"
• Weight: 8.9lbs
• Frequency Response: 20 Hz 50 KHz, 0.5 dB
• Dynamic Range: 108 dB, THD+N, < 0.005% (Mic/Line Input to Main Out)
• Maximum Gain: 70 dB (Mic Input to Main Out)
• Headroom: 24 dB
• Bluetooth Specifications: Version: 3.0
• Maximum Transmission Power: Class 3, +4 dBm
• Transmission Frequency: 2.4 GHz
• Transmission Range: Up to 100 feet / 30.5 meters
• Receiver Sensitivity: < -70 dBm @ 0.1% BER
• Supported Profiles: A2DP
• Input Voltage: 115 VAC, 60 Hz; 230 VAC, 50 Hz
• Rear panel voltage selector
• Fuse: 115 VAC, 60 Hz: T630 mAL 250 V / 230 VAC, 50 Hz: T315 mAL 250 V
• Dimensions (width x depth x height): 19.0" x 6.25" x 5.25" / 48.3 cm x 15.9 cm x 13.3 cm
• Weight: 8.9 lbs. / 4.0 kg
