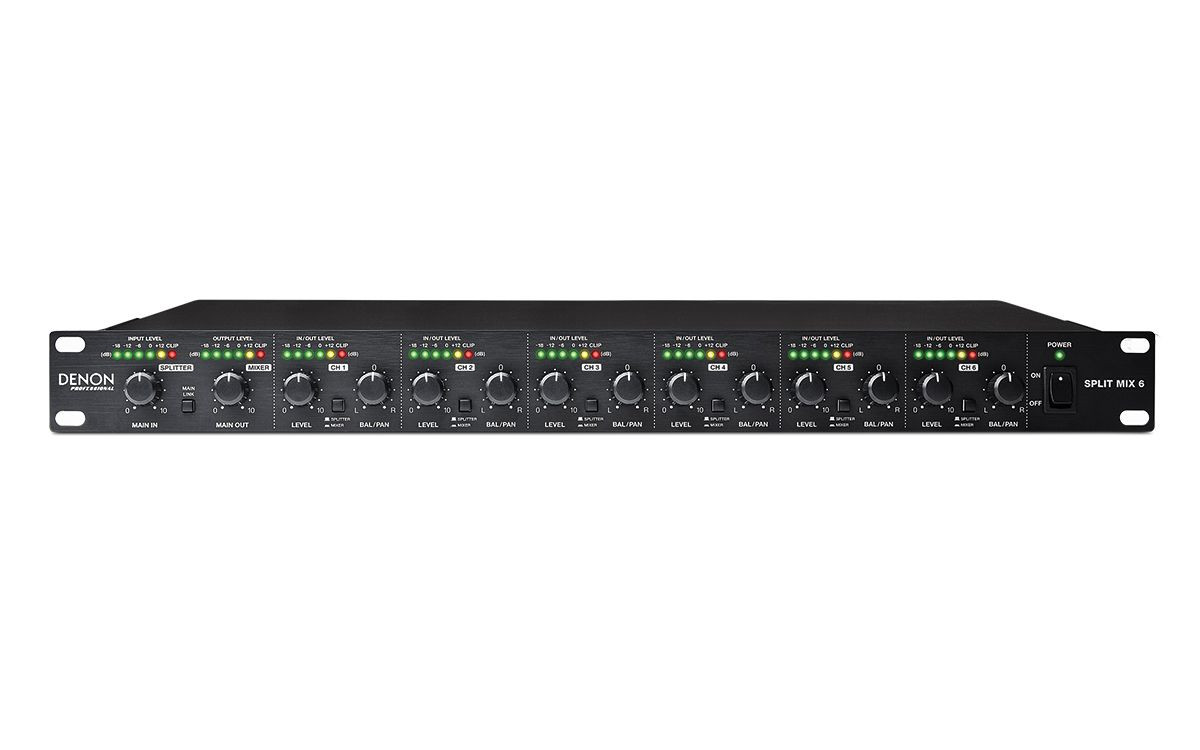

The Split Mix 6 from Denon Professional was designed as a versatile, 1U rackmountable mixer for mixing up to 4 XLR inputs and 2 1/4" inputs. It can be used as either a 6-channel mixer or 8-output splitter, and is perfect for sending a stereo signal to separate zones or amplified systems.
Denon SplitMix6 Features• Used as a 6-channel mixer or 8-output splitter
• Perfect for sending a stereo program to separate zones or amplified speaker systems
• Create custom mixes utilizing mixed and separate audio feeds
• Balanced and unbalanced inputs and outputs
• Balance and level controls with 6-segment LED meters on mono input channels
• Main input and output level controls with 6-segment LED meters

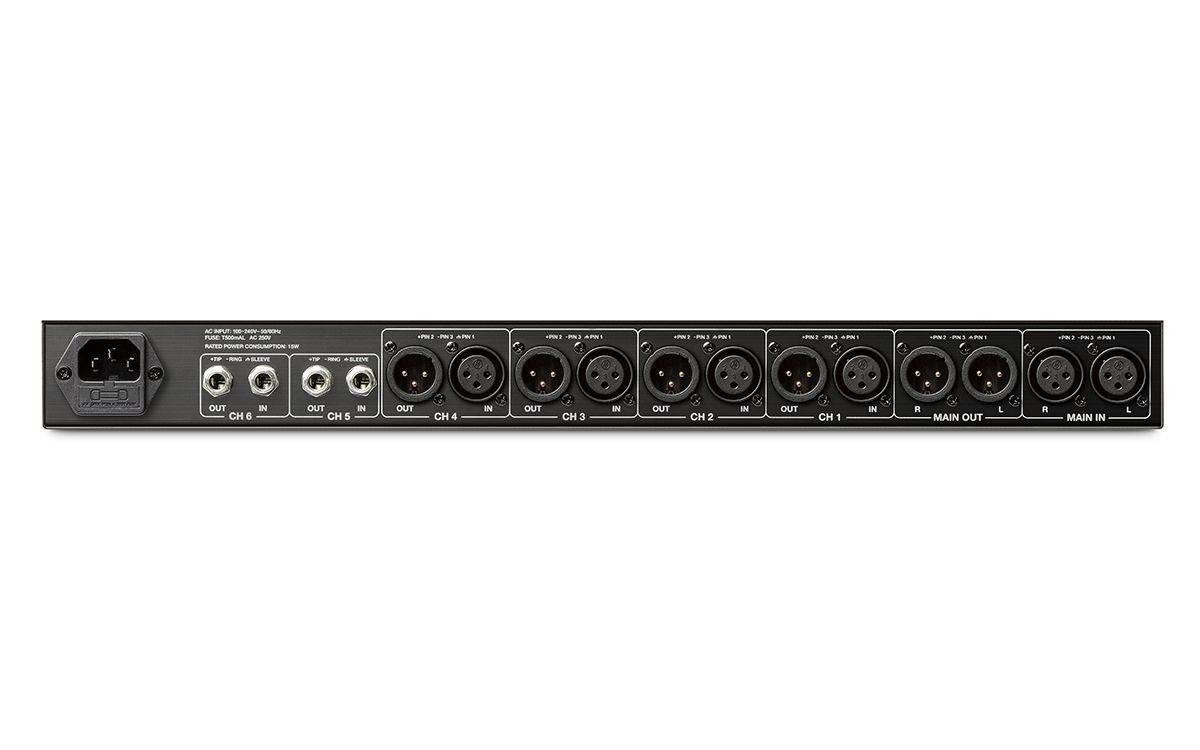

SplitMix6 SpecsAudio Inputs• Mono channel inputs: (4) XLR, balanced, (2) 1/4" TRS balanced, unbalanced
• Max input level: +21dBu balanced
• Main signal inputs: (2) XLR balanced
• Max input level: +21dBu balanced
• CMMR (Common Mode Rejection Ratio): typically 40dB, > 55dB @ 1kHz
Audio Outputs
• Mono channel outputs: (4) XLR and (2) 1/4" TRS electronically servo-balanced
• Impedance: 60 balanced / 30 unbalanced
• Max output level: +22dBu balanced and unbalanced
• Frequency Response: 5Hz - 20kHz, 3dB
• Signal-to-Noise Ratio: >95dBu, unweighted (20 - 20kHz)
• THD: <0.002% typ @ +4dBu, 1kHz
Function Switches
• Main Link: Links main input signal to the main output
• Split/Mix: Changes from Split mode to Mix mode for each channel
• Power Supply: USA/Canada: 120VAC, 60Hz
• Dimensions: 19 x 7.5 x 1.7" (483 x 195 x 44mm)
• Weight: 5.7 lbs (2.6kg)
