Digidesign DIGI-002-RACK FireWire Digital Rack System

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

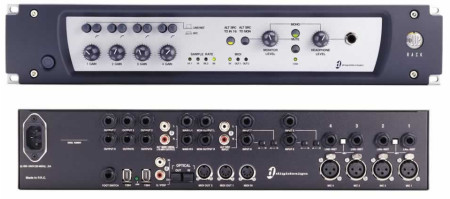

digidesign digi-002-rack
Images may show accessories or configurations not packaged with this item.
The latest FireWire-based Pro Tools LE system from Digidesign, offers all of the integrated I/O facilities of Digi 002 in an affordable, portable 2U rack-mountable chassis.

The latest 32-track Pro Tools LE software for Macintosh OS X* provides the same award-winning interface for which Pro Tools is renowned, enabling you to easily take your projects in virtually any direction while guaranteeing pristine sound quality. And, of course, your sessions remain cross-platform compatible with other Pro Tools systems, from Mbox to Pro Tools|HD.

Each Digi 002 Rack system includes Pro Tools LE software, a host of DigiRack plug-ins, the Music Production Enhancement Suite and the recently integrated Free Bomb Factory plug-ins.

Digi 002 Rack is a single-box design that includes a sole FireWire (or 1394) connection to handle the exchange of information to and from your computer, so you just plug in and go. Along with the included Pro Tools LE software, Digi 002 Rack provides the means to create everything from top-notch demos to masterful DJ mixes to superb radio spots, all with 24-bit clarity and up to 96 kHz sample rate support. Its analog, digital, and MIDI capabilities enable Digi 002 Rack to handle a wide variety of I/O configurations, while dedicated monitor and headphone outputs allow you to keep a close ear on progress.

Getting your Digi 002 Rack system up and running involves a quick, simple, five-step process. First, you load your Pro Tools LE software onto your computer. Second, you connect your computer to the Digi 002 Rack with the included FireWire cable (If your PC some Sony computers, for instance utilizes a 4-pin FireWire port, you'll need to purchase a special 4-pin to 6-pin FireWire to make the connection). Third, you power up Digi 002 Rack. Fourth, you connect your signal sources mics, instrument cables, patch cords, etc. to the I/O on the back of Digi 002 Rack. Lastly, you launch Pro Tools LE software. At that point, you're ready to go.

The Essentials:
Digi 002 Rack is a full-featured studio-in-a-box that works with your Window XP- or Mac OS X-based computer to give you all you need to capture your ideas and to achieve superior audio and MIDI production results. Comprised of a single unit that includes analog, digital, and MIDI I/O, along with four high-quality mic preamps, Digi 002 Rack communicates with your computer and your Pro Tools LE software via a single included FireWire cable so you're able to take it with you anywhere to make the most of your creativity and time. Included Pro Tools LE software comprises the very user-friendly interface component, offering 32 tracks of simultaneous record and playback, 128 virtual tracks, 256 MIDI tracks, and a host of additional powerful features. Lastly, all Pro Tools LE systems ship with a variety of free bundled software tools and plug-ins.

• Sample rate: 44.1, 48, 88.2, 96 kHz
• Max Input:
Inputs 1-4 (mic): +3 dBu
Inputs 1-4 (line): +18 dBu
Inputs 5-8 (line/+4 mode): +18 dBu
• Gain Range:
Inputs 1-4: Mic Setting: +18 - +65 dB; Line/DI Setting: +0 - +50 dB
Inputs 5-8: fixed +4 dBu or -10 dBV
Mic E.I.N (unweighted):
Inputs 1-4: -127 dBu @ 65 dB gain, 150 ohm source, 20 Hz - 20 kHz
• THD+N @ 40 dB gain (mic input) @ 1 kHz:
Inputs 1-4: 0.004% @ 1kHz, -1dBFS after 40 dB gain
• THD+N (line input): see notes 1 and 3
Inputs 1-4: 0.004% @ -3 dBFS input level (minimum gain)
Inputs 5-6: 0.002% @ -1 dBFS input level
Inputs 7-8: 0.003% @ -1 dBFS input level
• Dynamic range: see notes 1 and 2
Inputs 1-4: 101 dB A-weighted, 98 dB (unweighted)
Inputs 5-8: 108 dB A-weighted, 105 dB (unweighted) see note 5
Alt Source Inputs: 99 dB A-weighted, 97 dB (unweighted)
• Frequency Response: see note 3
+0.15 / -0.5 dB, 20 Hz - 20 kHz
• Input Impedance:
Inputs 1-4 (XLR): 2 kohm
Inputs 1-4 (1/4"): 10 Mohm

• Sample Rate: 44.1, 48, 88.2, 96 kHz
• Max Output:
Main, Monitor, and Outputs 3-8: +18 dBu
Alt. -10 dBV Outputs: +4 dBV
Headphone Outputs: +15 dBu, 150 ohm load
• Dynamic range: see notes 1, 3, and 4
Main Outputs: 114 dB A-weighted, 112 dB (unweighted)
Monitor Outputs: 112 dB A-weighted, 110 dB (unweighted)
Outputs 3-8: 114 dB A-weighted, 112 dB (unweighted)
Alt. -10 dBV Outputs: 98 dB A-weighted, 95 dB (unweighted)
• THD+N: see notes 1, 3, and 4
Main Outputs: <0.0016% (-95 dB)
Monitor Outputs: <0.0016% (-95 dB)
Outputs 3-8: <0.0023% (-93 dB)
Alt. -10 dBV Outputs: <0.0023% (-93 dB)
• Frequency Response: see note 3
+0.15 / -0.5 dB, 20 Hz - 20 kHz
• Output Impedance:
50 ohms
• Note 1: Measurement made using balanced connectors
• Note 2: ADC measured -60 dBFS method with a gain setting such that +24 dBu = 0 dBFS at S/PDIF output
• Note 3: Measured relative to level at 1 kHz
• Note 4: Measured with digital input at -60 dBFS @ 1 kHz
• Note 5: Measured using "+4" setting

Width: 19 in / 48.26 cm
Height 3.5 in / 8.89 cm
Depth: 12.75 in / 32.39 cm
Weight: 12.13 lbs / 5.5 kg
