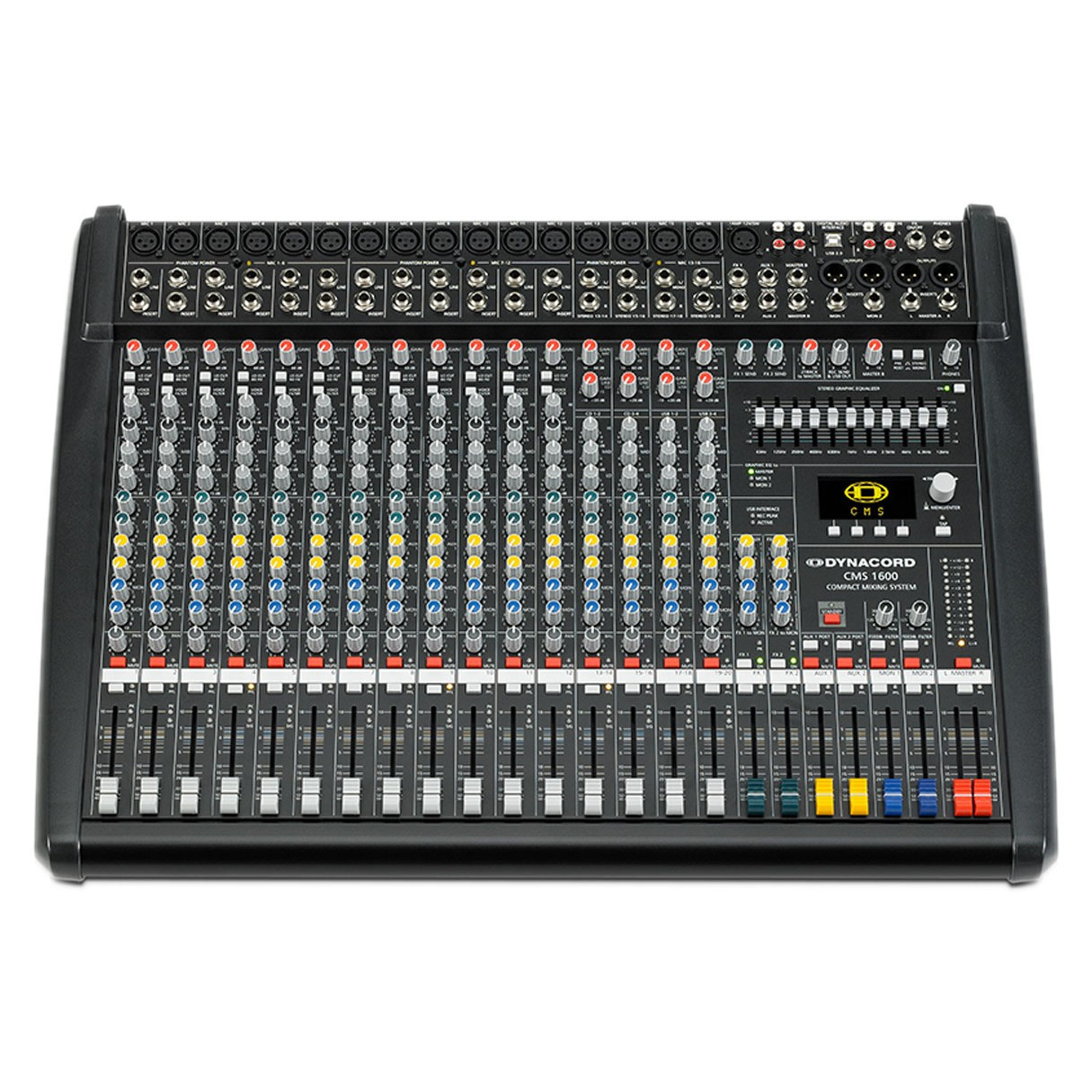

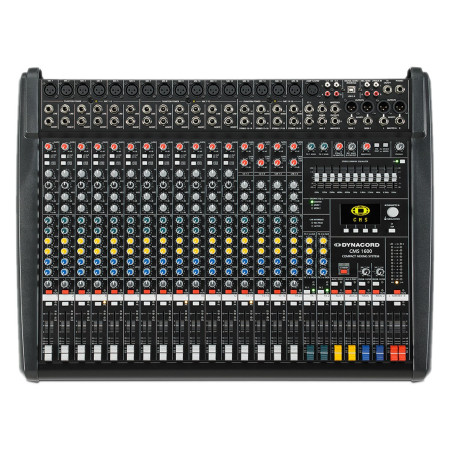

The mixing section starts with 16 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. A TAP key allows precise setting of delay times. Further, each preset can be edited and stored to 20 User memories.
The built in uncompromising USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac, following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package.
The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels.
For dark environments an optional gooseneck light can be connected. All faders are dust protected and not least the balanced XLR outputs for master and monitor underline the professional approach.
Optional a very robust cover lid with an integrated handle is available. A solution that offers optimal protection for the device as well as greater carrying comfort without the need of adding a large, heavy flight case.
• Intuitive mixer with 16 input channels (12 Mic/Line + 4 Mic/Stereo-Line)
• 2 High-Quality editable effects, 100 factory and 20 user presets
• Professional 4x4 24-bit / 96 kHz USB interface with MIDI
• 11 band stereo graphic equalizer
• Optional robust cover-lid with integrated handle
SpecificationsChannels (Mono + Stereo) 12 + 4
Auxiliarys (MON, FX, AUX) 2 Pre, 2 Post, 2 Pre/Post switchable
MIC GAIN (Mono / Stereo) 0 to +60 dB / +10 to +60 dB
LINE/CD/USB GAIN (Stereo) -10 to +20 dB
THD, at 1 kHz, MBW = 80 kHz
MIC input to Master A L/R outputs, +16 dBu, typical < 0.005%
Frequency Response, -3 dB, ref. 1 kHz, any input to any Mixer output 15 Hz to 70 kHz
Crosstalk, 1 kHz
Fader & FX/AUX/MON-Send attenuation > 85 dB
Channel to Channel < -80 dB
CMRR, MIC input, 1 kHz > 80 dB
Input Sensitivity, all level controls in max. position MIC / LINE (Mono) / LINE (Stereo) / CD (Stereo) -74 dBu (155 V) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV)
Maximum Level, mixing deskMIC inputs +21 dBu
Mono Line inputs / Stereo Line inputs +41 dBu / +30 dBu
All other inputs +22 dBu
All other outputs +22 dBu
Input ImpedancesMIC / Insert Return 2 ? / > 3.3 ?
2Track Return & CD In 10 ?
All other inputs > 15 ?
Output ImpedancesPhones 47 O
All other outputs 75 O
Equivalent Input Noise, MIC input, A-weighted, 150 ohms -130 dBu
Noise, Channel inputs to Master A L/R outputs, A-weightedMaster fader down -97 dBu
Master fader 0 dB, Channel fader down -89 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity -82 dBu
EqualizationLO Shelving 15 dB / 60 Hz
MID Peaking, mono inputs 15 dB / 100 Hz to 8 kHz
MID Peaking, stereo inputs 12 dB / 2.4 kHz
HI Shelving 15 dB / 12 kHz
Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz) 10 dB / Q = 1.5 to 2.5
Power Consumptionwithout lamp / with lamp 50 W / 55 W
FilterLO-CUT, mono inputs f = 80 Hz, 18 dB/oct.
VOICE FILTER, mono inputs switchable
FEEDBACK FILTER, MON 1/2 70 Hz to 7 kHz, Notch, -9 dB
EffectsType, effects presets Dual stereo 24/48-bit multi effects processors, 100 Factory + 20 User, Tap-Delay
Remote control Footswitch, MIDI
Display 128 x 64 pixels, OLED
Digital Audio InterfaceChannels 4 In / 4 Out
AD/DA Conversion, Sampling Rate 24-bit, 44.1 / 48 / 88.2 / 96 kHz
PC Interface USB2.0, Female Type B
MIDI Interface 5-pin DIN connector, In / Out
ProtectionMixer Outputs (Relay controlled) MON 1, MON 2, MASTER A
Switching Mode Power Supply (C controlled) Mains Over/Undervoltage, High Temperature
Phantom Power, switchable in groups 48 V DC
Power Requirements (SMPS with auto range mains input) 100 V to 240 V AC, 50 Hz to 60 Hz
Dimensions (W x H x D, without lid), mm 663.5 x 155 x 498.5
Weight, without lid 12 kg
Optional AccessoriesLid DC-LID1600
Gooseneck Lamp, 12V/5W, 12", XLR 4 pol. DC-LITLITE-4P
FS 11 (Footswitch with LED) DC-FS11
