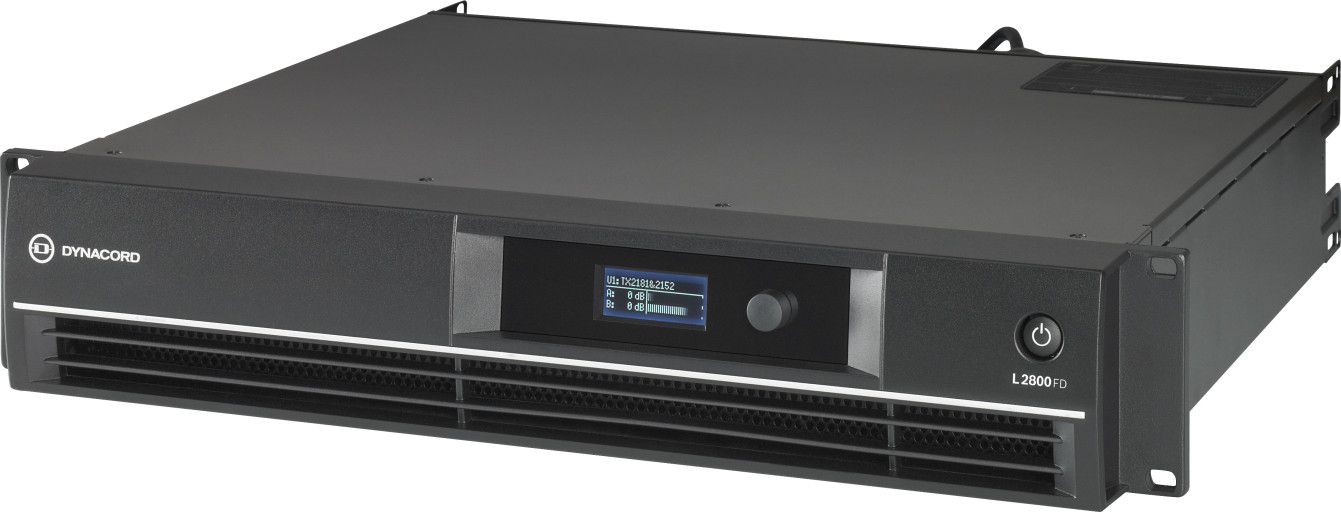

• DSP 2 x 1400 w power amplifier for live performance applications
• Professional DSP amplifier for live and mobile application
• Fully integrated professional speaker processing with FIR drive technology
• Market-leading acoustic performance and rock solid reliability
• Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0
SpecificationsMaximum Output Power, Single Channel: 700W@8ohm, 1400W@4ohm, 2000W@2.6ohm, 2300W@2ohm
Maximum Output Power, Dual Channel: 650W@8ohm, 1300W@4ohm, 1800W@2.6ohm, 2200W@2ohm
Maximum Output Power, Bridged: 2600W@8ohm, 4400W@4ohm
Maximum RMS Voltage Swing THD = 1%, 1 kHz 78.8 V
Voltage Gain Ref.1 kHz 32.0 dB
THD at 900 W/4 O MBW = 80 kHz, 1kHz < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu
Crosstalk ref. 1 kHz, at 100W/4 O < -80 dB
Frequency Response, ref. 1 kHz 10 Hz to 21 kHz (1 dB)
Input Impedance, Active Balanced 20 k O
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 O >107 dB
Output Noise, A-weighted < -68 dBu
Output Stage Topology Class H
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz(factory configured)
Power Consumption ? Maximum Output Power @ 4 O 700 W
Mains Fuse 240 V/230 V: T15AH; 120 V/100 V: T25AH
Protection Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5C to +40C (40F to +105F)
Safety Class I
Color Black
Dimensions (W x H x D), mm 483 x 88 x 462.4
Weight 16.2 kg (35.7 lb)
Signal Processing FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance
Remote Control SONICUE sound system software **
Accessories RMK15 (rear rack mount kit)
