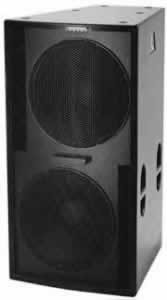

A dedicated subwoofer with two 18 in transducers in a trapezoidal enclosure. Tuned enclosure venting improves LF response, and the addition of an MX Series processor with factory settings can further optimize performance.
Applications
The LA128z subwoofer is engineered to complement the LA Series full range systems or any full range loudspeaker. Recessed cups on the top accept the footpads of an LA325, LA460, or another LA sub.
SPECIFICATIONS
Physical
* System Configuration Subwoofer
* SB Subsystem & Loading Two 18 in woofers, vented
* Enclosure Material Exterior grade Baltic birch plywood
* Finish Wear resistant textured black paint
* Connector Two Neutrik NL4 Speakon
* Grille Powder coated perforated steel
* Companion Fullrange LA212, LA215, LA325, LA460, or any full range loudspeaker
Dimensions (0.13 in / 3 mm)
* Height 45.00 / 1143
* Front Width 23.63 / 600
* Rear Width 13.66 / 347
* Depth 29.66 / 753
* Trapezoid Angle (degrees) 10 per side
Weights (pounds / kilograms)
* Net Weight 176.0 / 80.0
* Shipping Weight 183.0 / 83.2
Performance
Frequency Response
* 3 db 31 Hz (40 Hz w/out CCEP) to 200 Hz
* -10 dB 25 Hz (27 Hz w/out CCEP)
* Recommended High-Pass Frequency 25 Hz, 24 dB / octave
Axial Sensitivity (dB SPL, 1 watt @ 1 m)
* Subbass 98
Nominal Input Impedance (ohms)
* Subbass 4
Power Handling (watts, continuous)
* Subbass 2000
Calculated SPL Limit (referenced to 1 m)
* Subbass Peak 137.0
* Subbass Long Term 131.0
Additional Information
UPC | N/A |
---|
SKU | LA128Z |
---|
Manufacturer | EAW |
---|
Price | $1,599.99 |
---|
Product Condition | New - On Clearance |
---|
