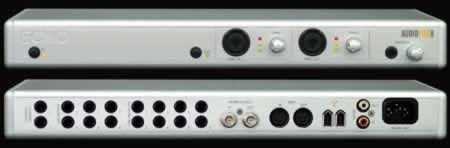

AudioFire8 offers the same high quality hardware and software found in our popular Layla3G product, but with the addition of a FireWire interface.
AudioFire8 is the perfect center for any professional studio, whether at home or on the road. It has 2 universal inputs with mic preamps, phantom power, channel inserts, and trim knobs so you can just plug in your microphone or instrument and record whenever or wherever you want. AudioFire8 also comes with 6 balanced analog inputs (TRS), 8 balanced analog outputs (TRS), a stereo headphone output, 2 FireWire ports, S/PDIF I/O, MIDI I/O, word clock synchronization, and 10 channels of full duplex 24 bit 96kHz recording and playback.
FEATURES:• FireWire (IEEE 1394a) interface with 15' cable
2 auto-sensing universal inputs (mic/guitar/line):
• Meters, trim knobs, phantom power, & channel inserts
• 6 balanced " analog inputs:
113dB (A-weighted) dynamic range
+4dBu / -10dBV nominal levels
• 8 balanced " analog outputs:
114dB (A-weighted) dynamic range
+4dBu / -10dBV nominal levels
• S/PDIF I/O at 24-bit/96kHz
MIDI I/O
• Stereo headphone output with volume knob
Sync via word clock or S/PDIF
• Supports full duplex 10 channel in, 10 channel out operation at 24 bit, 96 kHz sample rate
• Rack mountable single space interface box
• Heavy-duty aluminum case
• 32-bit / 1.6 gigaflop DSP for digital mixing
• Near zero latency hardware monitoring
SOFTWARE FEATURES:• Software console for monitoring, metering, and setting levels
• Low-latency drivers support all major pro audio software:
Low Latency ASIO 2.0
GSIF 2.0 (Gigastudio 3 w/ low latency MIDI)
CoreAudio & CoreMIDI
SYSTEM REQUIREMENTS:• PC System requirements:
Windows XP
256 MB RAM (512 MB recommended)
• Mac System Requirements:
Mac OS X (10.3.7 or later)
G4 or better processor
256 MB RAM (512 MB recommended)
