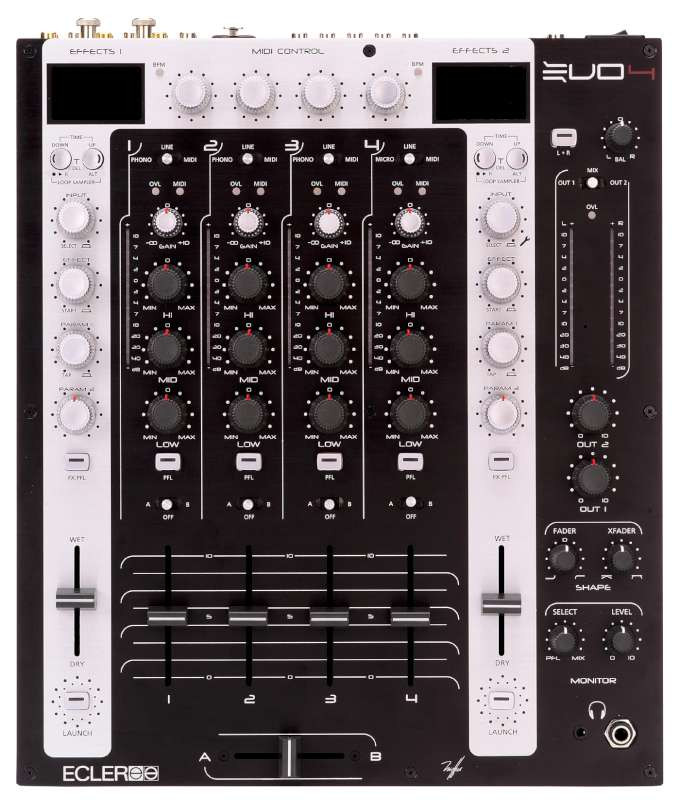

The EVO 4 is a 4 channel digital mixer addressed to professional DJ and club installations. It features the highest quality digital audio at 24bit 96kHz, 2 independent effects processors, 2 independent loop samplers and fully assignable MIDI control.
In despite of the music style, the EVO 4 is tailored to any professional DJ as it is packed with plenty of features, such as a precise and ergonomic full cut EQ, send and return loop to external effects units, fader and crossfader shape adjustment, output limiter and much more. Its superb sound quality, robust format and output limiter make it the perfect choice for a club installation.
Features• 4 mixing channels

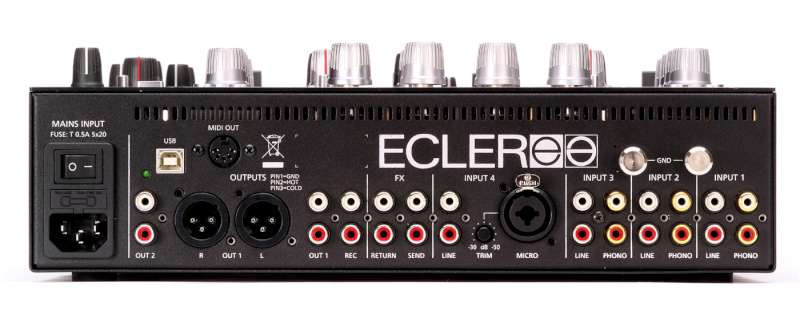

• 3 PHONO and 4 LINE inputs
• 1 balanced XLR3 MICRO input
• Master output - balanced XLR and unbalanced RCA
• Booth output - unbalanced RCA
• MIDI output - DIN5 180 and USB
• VU Meter per channel
• 3 band full cut EQ
• Extra large ergonomic EQ knobs
• Fully assignable crossfader
• 60mm long life faders
• 45mm long life crossfader
• Fader and crossfader shape adjustment
• FX Send and Return loop to external effects units
Digital Audio • 24 bit stereo A/D and D/A converters
• 96kHz sampling rate
2 Effects Processors • 18 advanced sound effects synchronized with BPM
• Automatic/manual BPM counter on each processor
• LCD screen on each processor
• Dry/Wet crossfader and 3 parameter adjustment
• 2 independent processors chainable or assignable to different channels
• Send and return control to external effects processors
Sound Effects • High Pass Filter
• Low Pass Filter
• Band Pass Filter
• LFO High Pass Filter
• LFO Low Pass Filter
• LFO Band Pass Filter
• Delay/Echo
• Ping Pong Delay
• Sweep
• Bit Crusher
• Flanger
• Phaser
• Pitch
• Reverb
• Pan
• Trans
• Vocoder
• Loop Sampler
2 Loop Samplers • 2 bank loop samples
• 1/8, 1/4, 1/2, 1/1, 2/1, 4/1 or 8/1 beats (automatic beat detection)
MIDI Control • 29 assignable MIDI controls
• Dedicated MIDI panel with 4 rotary and push encoders
• MIDI Clock
Output Limiter • Output limiter for a safe performance
• Protected with password
