EKS OTUS RAW Dual Deck Controller including Traktor LE

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

eks otusraw
eks otusraw EKS OTUS RAW Dual Deck Controller including Traktor LE

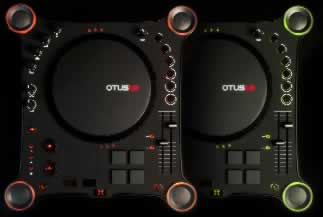

Otus RAW is a 2-in-1 DJ controller with tough, battle-hardened design. The integrated multichannel audio interface which enables the artist to play two virtual decks, sturdy pitch sliders, high resolution 7.5" scratch wheel and other fully configurable innovative controls make Otus RAW a robust tool for the dirty work.

Designed to Rock the House
All the controls are designed for extreme robustness and quality. As with our Otus Dualdeck, the layout of the controls is optimized both for usability and show factor. The controls are backlit with bright LED's for easy utilization in poorly illuminated situations. Extra physical controls and selectors are provided for tactile response.

Otus RAW is also designed to fit on top of a standard vinyl turntable. This makes it easy to quickly plug in into an existing setup. Otus RAW weights 2kg, so it's firm and sturdy but still retains its portable nature.

Compared to Otus Dualdeck
In designing the Otus RAW we decided to trade in some of the Dualdeck's futuristic control flexibility for extra hands-on feel with two heavy-duty, physical pitch sliders, enlarged custom buttons and velocity-sensitive rubber pads for banging the beat. The RAW is the tool for exercising both your muscles and muscle memory - playing it live and RAW.

FEATURES INCLUDE:
• 7,5" Jog Wheel
An illuminated, high resolution 7.5" jog wheel with sensitivity adjustments is the heart of Otus RAW. The touch sensitive top part allows you to scratch or cue the track by rotating the wheel. The outer rim of the wheel functions as a pitch bender.

• Two Heavy Duty Pitch Sliders
Otus RAW is equipped with two long and sturdy SL-turntable-style pitch sliders. Use them for two decks or to control pitch and tempo separately.

• Velocity Pads
The four large, velocity-sensitive buttons similar to modern samplers enable creative control over rhythmic patterns and launching effects.

• Four Selector Jog Wheels
Each corner of Otus RAW features an assignable jog wheel controller with an integrated select button in the middle - created for optimal file browsing or effects work.

• 2 Rotary + 4 Continuous-Rotary Knobs
Designed for Headphone control, EQ's and effects. The continuous knobs act also as push buttons for EQ kills or effect launching.

• 6 Large Custom Buttons with Group Selector
The Group Selector switch effectively quadruples the number of Custom Buttons you can use for actions such as jumping to cue points or launching effects.

• Touch Pad
A Touch Pad with two buttons for mouse or X/Y effects control. This makes touching computer while playing unnecessary.

• Deck Switch Button
Otus RAW features two layers of controls, which can be swapped by double clicking the switch button. This enables operating two virtual decks with just one controller.

• Integrated Soundcard with Analog and Digital Output
Professional level analog and digital outputs make connecting Otus RAW to your favourite mixer or PA system quick and easy. The Otus RAW also features a separate heaphone output for mixing in software.

• Works with Your Favorite DJ/VJ/MIDI Software
The advanced MIDI mapper and ASIO drivers make creating configurations for your favourite DJ/VJ software easy and intuitive. The EKS support pages contain downloads and instructions for setting Otus RAW up with different software.

• Fully Compatible with Other EKS Gear
Otus RAW is designed to be fully compatible with all the previous and future EKS controllers and products. If you have an XP10, XP5 or an Otus Dualdeck, they can all be used simultaneously to control different functions, decks or even different MIDI software altogether. With EKS ASIO drivers you can easily route out audio through all of your EKS controllers if needed.

SPECIFICATIONS:
• Compatibility
ASIO
Core Audio
MIDI
USB2.0/USB1.1
Win / OSX

• Controls
High resolution 7.5" touch sensitive wheel
4 jog dial type controls with switch
12 low travel buttons
Deck switch button
6 buttons under 4-way group selector
6 assignable control knobs
Built-in touchpad/assignable X/Y control surface
Two 100mm pitch sliders

• Audio interface
Integrated 24-bit 4ch audio interface
16bit/24bit, 44.1kHz/48kHz
Frequency response 4Hz-24kHz
Burr-Brown I2S DAC
2,5V RMS (7Vpp)

• Connectors
USB
4 x RCA Output (two stereo outputs)
2 x SPDIF Output
6.3mm stereo headphone output
Input for optional external PSU

• Dimensions
365mm x 335mm x 70mm

• Weight
2 kg

• Power supply
USB powered (450mA)
Optional external PSU (5V, 2000mA)

Additional Information

UPCN/A
SKUOTUSRAW
ManufacturerEKS
Product ConditionNew - On Clearance
ReturnableNo
