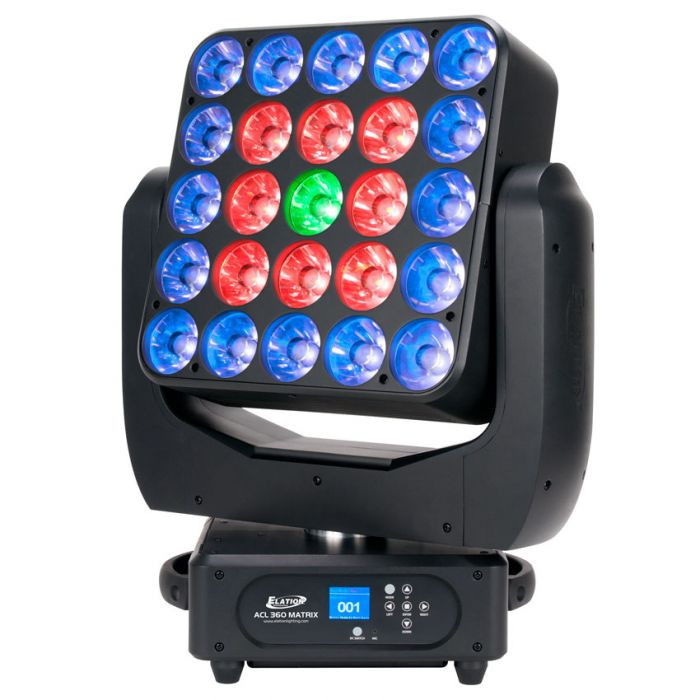

Elation ACL 360 MATRIX Moving Head

Features
• Versatile 14 Moving Head Effect Luminaire
• New Advanced Collimator Lens
• (25) Pixel Control RGBW 4-in1 LEDs
• Laser-Like Homogenized 4 Color Changing Beams
• Fast and Precise 16-Bit Continuous 360 Pan/Tilt Rotation
• Strobe and Selectable Dimming Curve Effects
• DMX, RDM, KlingNET' and Art-NET (DMX Over Ethernet) Support
• Flicker Free Operation for Broadcast TV and FILM

Specifications

SOURCE
• (25) 15W RGBW 4-in-1 LEDs
• 100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA (14 Full ON)
• 77,344 LUX 7,185 FC @3.3' (1m)
• 70,370 LUX 6,537 FC @6.6' (2m)
• 54,413 LUX 5,055 FC @9.8' (3m)
• 40,505 LUX 3,763 FC @13.1' (4m)
• 29,722 LUX 2,761 FC @16.4' (5m)

EFFECTS
• Individual Pixel Control
• Strobe and Selectable Dimming Curves

COLOR
• RGBW

CONTROL / CONNECTIONS
• (3) DMX Channel Modes (17 / 19 / 115)
• RDM (Remote Device Management)
• 6 Button Touch Control Panel
• Full Color 180 Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement

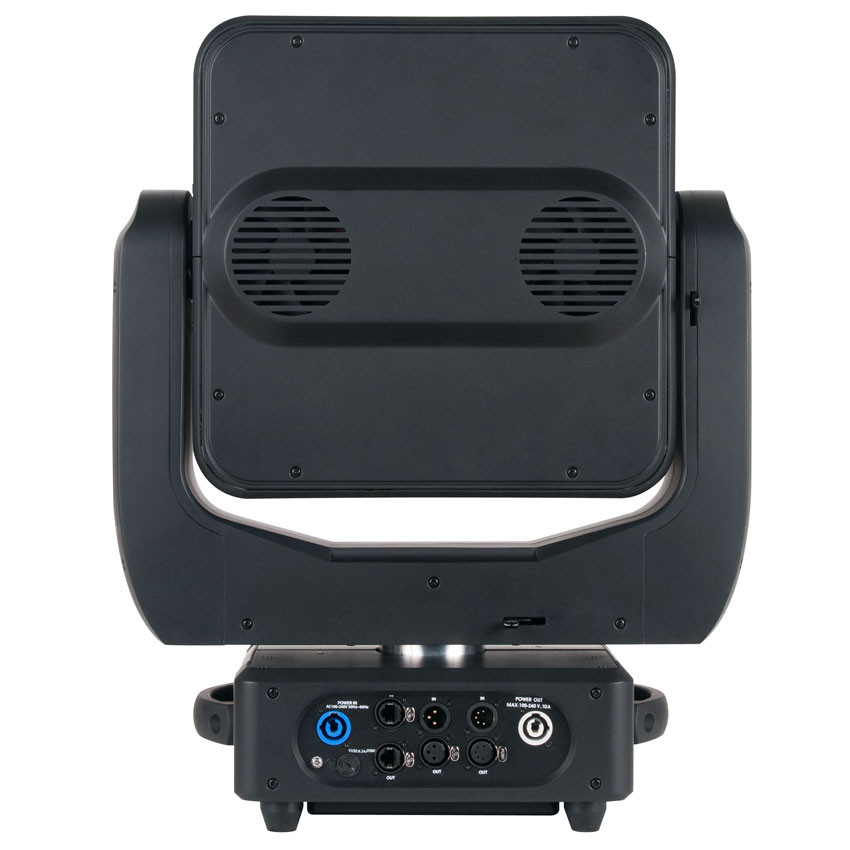

• 3pin/5pin DMX In/Out
• RJ45 Ethernet In/Out (Art-NET)
• powerCON Power In/Out

SIZE / WEIGHT
• Length: 19.0" (481mm)
• Width: 13.8" (350mm)
• Vertical Height: 23.0" (583mm)
• Weight: 42.0 lbs. (19 kg)

ELECTRICAL / THERMAL
• AC 100-240V - 50/60Hz
• 425W Max Power Consumption
• 5F to 113F (-15C to 45C)

APPROVALS / RATINGS
• CE | cETLus | IP30

INCLUDED ITEMS
• Omega Brackets
• powerCON Cable
