Elation ACTIVE-SCAN-SYS 4 Active Scans & DMX-Solo

elation active-scan-sys
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Not In Stock We're currently out of stock
In Stock It may be available on Amazon
In Stock Free shipping on most orders over $35
Buy on Amazon
This system is just the catch for your next club or stage gig! 4 active scans and a DMC controller are just the match to make the stage glow!

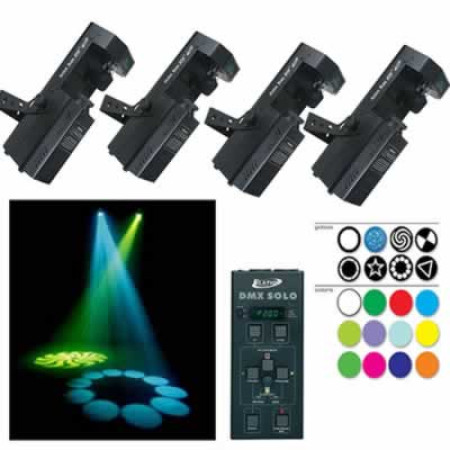

SYSTEM INCLUDES:
• (4) Active Scan-250s
• 1 DMX-SOLO

ACTIVE-SCAN-250:
Control Features:
• USITT DMX-512 (8-bit resolution)
• 6 DMX Channels
• 4 Digit LED display
• Self test & stand alone settings
• 3 Pin XLR Serial input/output

Features & Specs:
• High luminous parabolic reflector system
• 19 Beam Angle
• Manual Focus
• 11 colors + white
• 7 gobos + spot
• 1 Glass Dichro Gobo
• Color & Gobo Scroll
• Gobo Shake Effect
• Rotating gobos
• Master/slave Operation
• Linkable with ACTIVE WAVE-250
• Sound activated built-in programs
• Mechanical Dimming 0-100%
• Mechanical Shutter
• Strobe & Pulse effect
• Variable Speed Strobe (1-15fps)
• Fan Cooled
• GOBO SIZE: 26.9mm x 23mm

Technical Specifications:
• Lamp: MSD250/2 (250W, 8500K, 2000H)
• Dimensions (LxWxH): 10.25" x 11.75" x 25.5"
(260x299x650mm)
• Weight: 30 lbs / 13.5 kgs
• Fuse 10A
• Voltage: 115V/60Hz
• Power Consumption: 300VA

DMX-SOLO:
The DMX-Solo is a Recordable/ Re-recordable Mini DMX controller that can receive DMX Data to run different combinations of DMX fixtures. Using a DMX operator or Show designer controller you can download your favorite scenes into these easy to use controller directly via XLR cable.
Combine these scenes to create your favorite programs, or buy them with programs already preset from the factory for the X-Caliber', Pocket Scan', Spiral Scan', Might Scan' and the Rainbow-250'

FEATURES:
• 96 DMX channels
• Blank Mini DMX Recorder, Store up to 8 pre-programs & 8 Strobe programs
• 9 chase programs & a AP program
• 9 strobe programs & a AS program
• Each chase/strobe program can record a maximum of 48 scenes
• Either AS or AP program can record a maximum of 60 scenes
• Each AS or AP scene enables to has its individual speed or fade time
• Auto/Audio/Manual chase of programs
• A continuous cycle of Manual or Auto programs
• Access the scenes from any DMX controller
• All data can be swapped between two or more units
• Built-in microphone for Music triggering
• DMX polarity select
• Power failure memory
• New programs can be created using the Show • Designer for other DMX Products

Additional Information

UPCN/A
SKUACTIVE-SCAN-SYS
ManufacturerElation Professional
Price$3,199.99
Product ConditionNew - On Clearance
