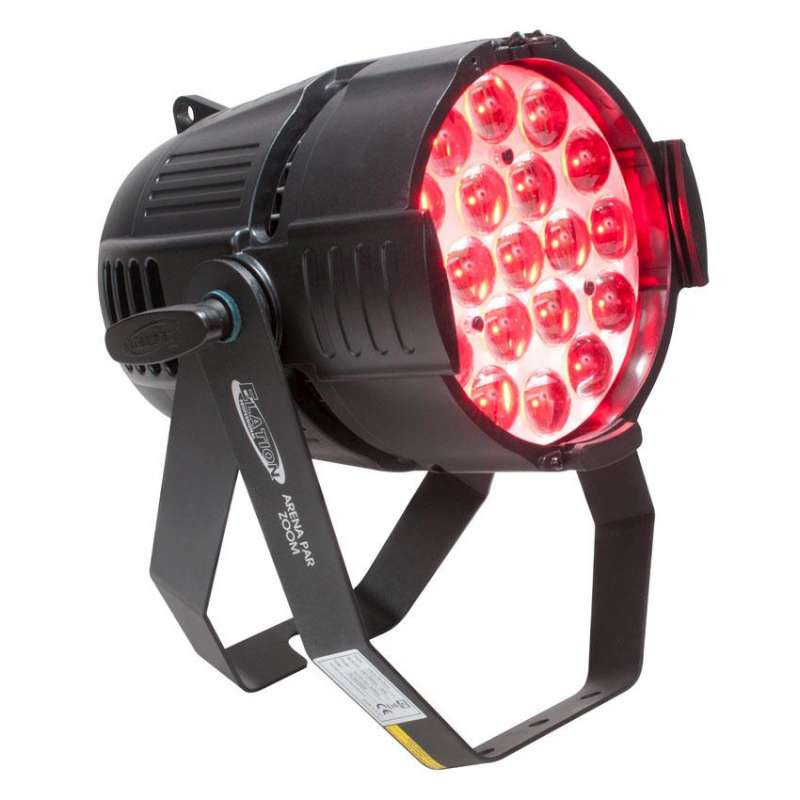

The Arena Par Zoom features (19) 10W QUAD Color LEDs from Osram', 10 to 60 motorized zoom, variable strobe macros, selectable dimming curves, flicker free operation for TV and FILM, 3 and 5pin in/out DMX and powerCON in/out connections, 4 button touch control panel, integrated dual rigging yoke / floor stand, linkable power for up to 4 units at 120V and up to 8 units at 230V, 220W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
VIDEO
Elation Arena Par Zoom Features • 1000-Watt Comparable Lumens Output
• Motorized 10 - 60 Zoom
• Selectable Dimming Curves
• Flicker Free Operation for TV and FILM
Elation Arena Par Zoom Specs SOURCE • 19x 10W Osram' QUAD Color (RGBW) LEDs
• 50,000 Hour Average Life
PHOTOMETRIC DATA • 12,600 LUX @3M 10 Min Zoom
• 900 LUX @3M 60 Max Zoom
EFFECTS • Strobe + Variable Strobe Macros
• Electronic Dimming: 0% - 100%
COLOR • RGBW
CONTROL / CONNECTIONS • 3 DMX Channel Modes (5/6/8)

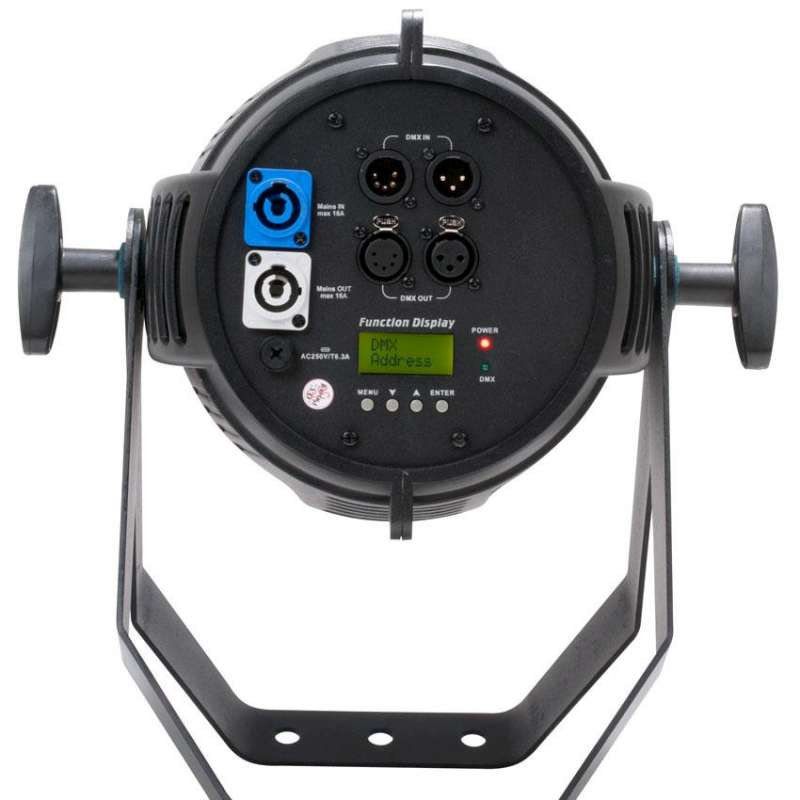

• 3pin & 5pin DMX In/Out
• 4 Button Control Panel
• LCD Menu Display
• powerCON Power In/Out
• Power Link Up To (4) Units at 120V (8) Units at 230V
SIZE / WEIGHT • Length: 12.8" (324mm)
• Width: 10.9" (276mm)
• Vertical Height: 14.5" (368mm)
• Weight: 15.9 lbs. (7.2kg)
ELECTRICAL / THERMAL • AC 100-240V - 50/60Hz
• 220W Max Power Consumption
• -4F (-20C) to 104F (40C)
APPROVALS / RATINGS • CE Approved
• cETLus Pending
• IP20 Rated
INCLUDED ACCESSORIES • (1) Power Cable
