Elation ART-1024 Touch SensiTVe, Wall Mount DMX Controller

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

elation art1024
elation art1024 Elation ART-1024 Touch SensiTVe, Wall Mount DMX Controller Elation ART-1024 Touch SensiTVe, Wall Mount DMX Controller Elation ART-1024 Touch SensiTVe, Wall Mount DMX Controller

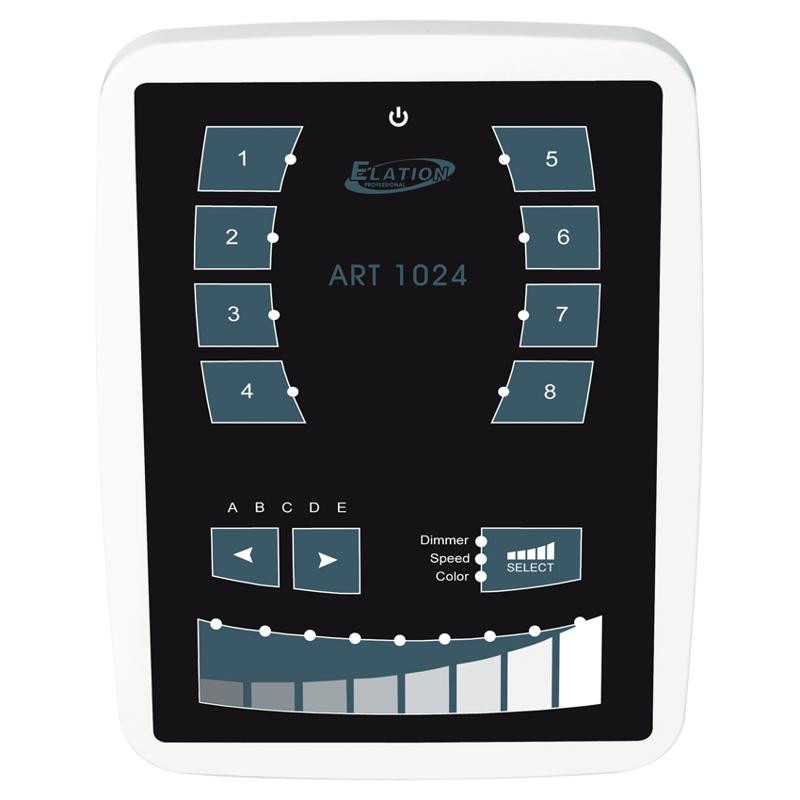

TOUCH SENSITIVE, WALL MOUNT, DMX LIGHTING CONTROLLER.

THE NEXT GENERATION LIGHTING CONTROLLER OPTIMIZED FOR THE ARCHITECTURAL LIGHTING INDUSTRY.

Easily create your own "ART" with the new ART-1024 wall mount controller form Elation!
• User interface 14 buttons, 1 fader, 28 leds - Touch Sensitive Keypad (extension socket rear connectors - 2x20 pins)
• Programming software included to run on PC

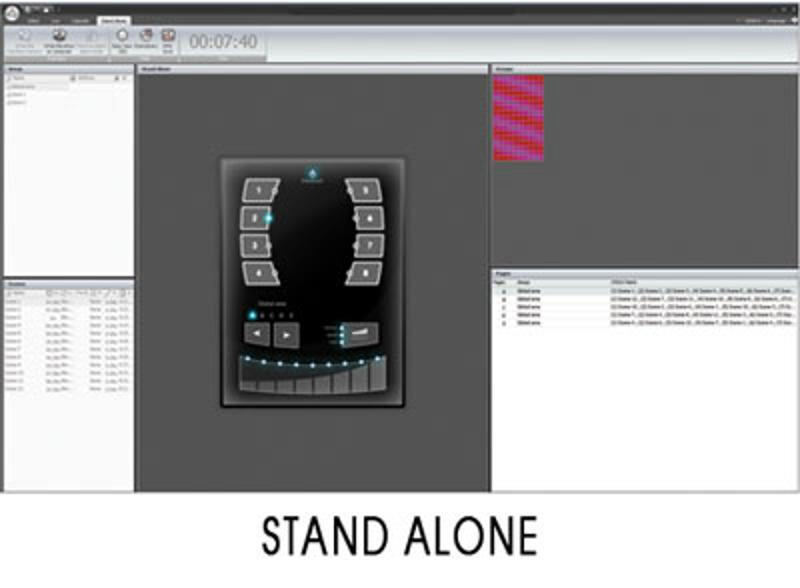

• SD Card Mini SD (included) card for stand alone memory use (Built-in features) & (front access connections - open cover)
• RESET Push button for reset operation (front access connections - open cover)
• RS232 RS232 serial communication for external synchronization (extension socket rear connectors - 2x20 pins)
• Output relay Automatic stand by 5V signal (extension socket rear connectors - 2x20 pins)

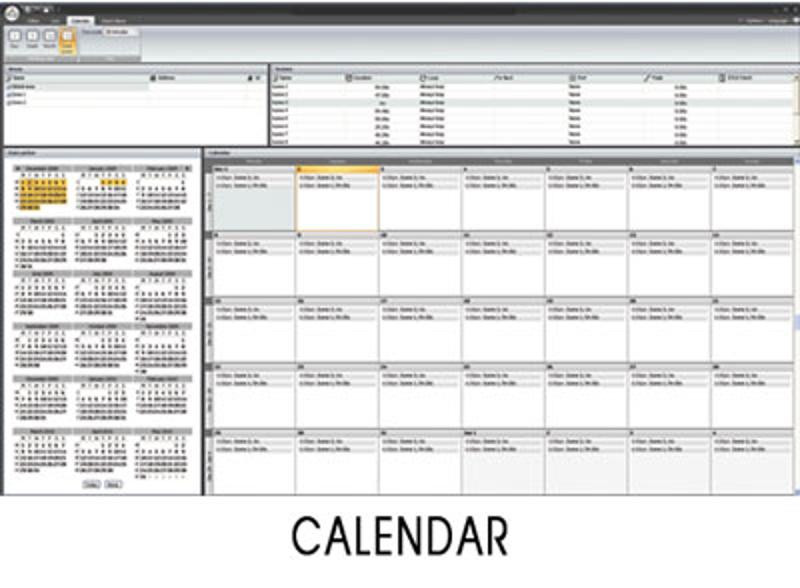

• Real time clock and calendar, 10 minutes saving without power (Built-in features)
• IR Receiver* Easy learning triggering from any 36Khz remote control (Built-in features)
• DMX Output #1 Universe 1, 512 channels DMX512 Output (screw-terminal rear connector - 9 pins)
• DMX Output #2* Universe 2, 512 channels DMX512 Output (extension socket rear connectors - 2x20 pins)
• USB USB 2.0 communication for PC/software (extension socket rear connectors - 2x20 pins)
• Ethernet** Advanced networking features (front access connections - open cov

Package Content: Interface, SD card, user manual, cdrom, USB cable, power supply (*)
PC Requirement Computer using Windows XP/VISTA 32 bits and USB 2.0

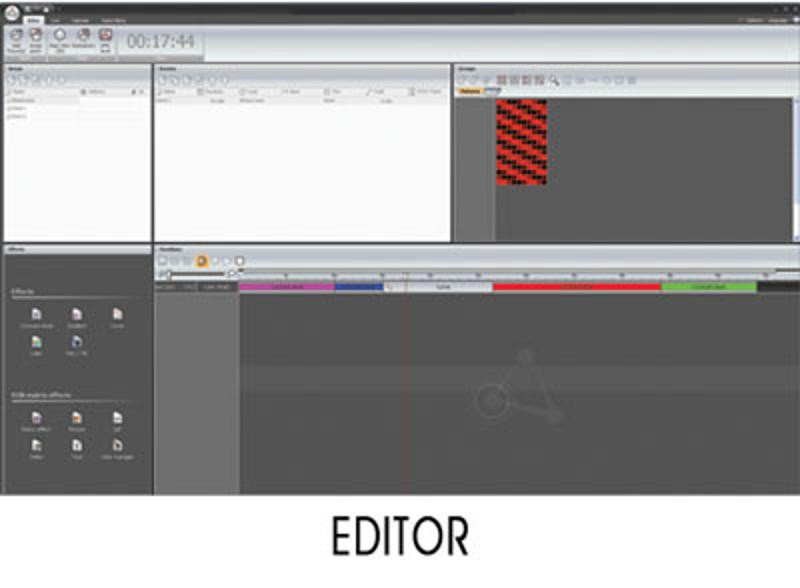

PC Software Included: ART 1024
Options Dedicatted remote control (**), Ethernet extesion (**)
Safety Standards EC, EMC, ROHS
Temperature 14F to 122F (-10C to 50C)
Dimensions 6.62" x 5.04" x 0.45" Complete package (168 x 128 x 11,5mm)
Weight 0.44lbs. (0,2kg) Complete package 1.32lbs. (0,6kg)
• Power Supply 9VDC 0.65A, Supplied (screw-terminal rear connector - 9 pins)
• Ports 1,2,3,4 4 Contact closure inputs, connect to ground for operating (extension socket rear connectors - 2x20 pins)
• Ports 5,6,7,8 4 Contact closure inputs, connect to ground for operating (screw-terminal rear connector - 9 pins) & (extension socket rear connectors - 2x20 pins)
• Microphone** Built-in microphone for sound to light effect (Built-in features)
• Audio input** Audio input for sound to light effect (extension socket rear connectors - 2x20 pins)
