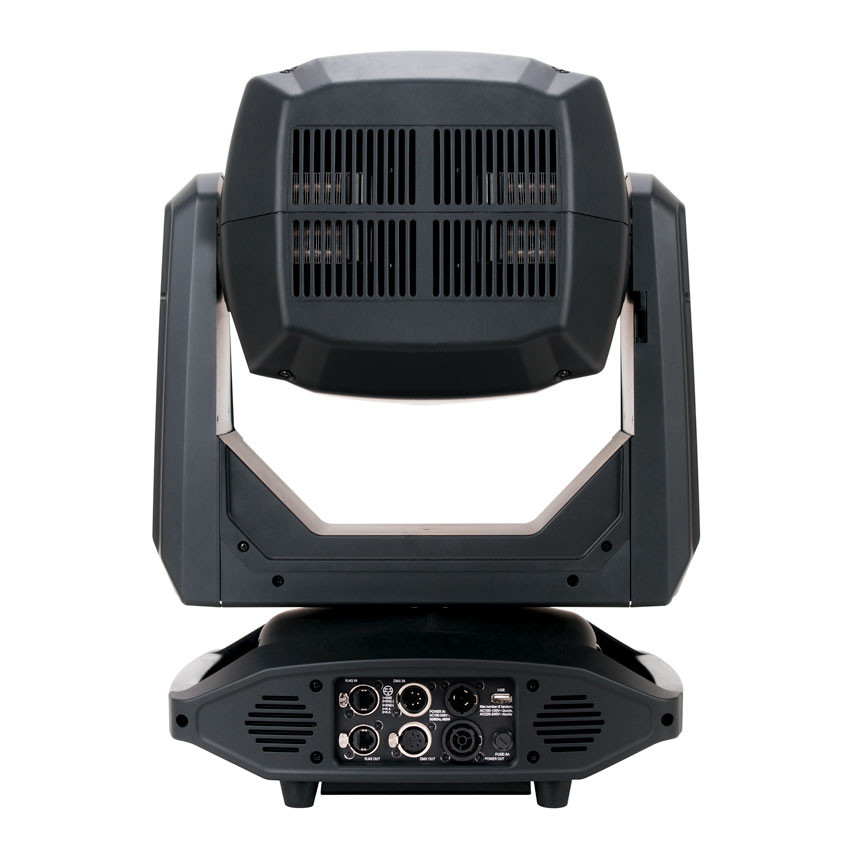

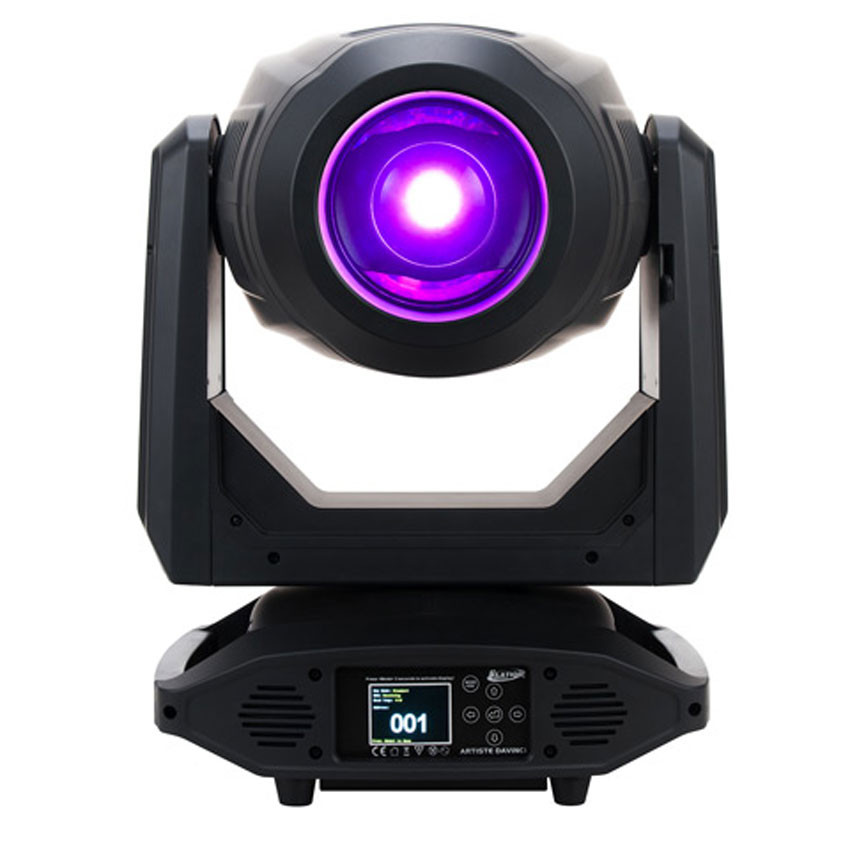

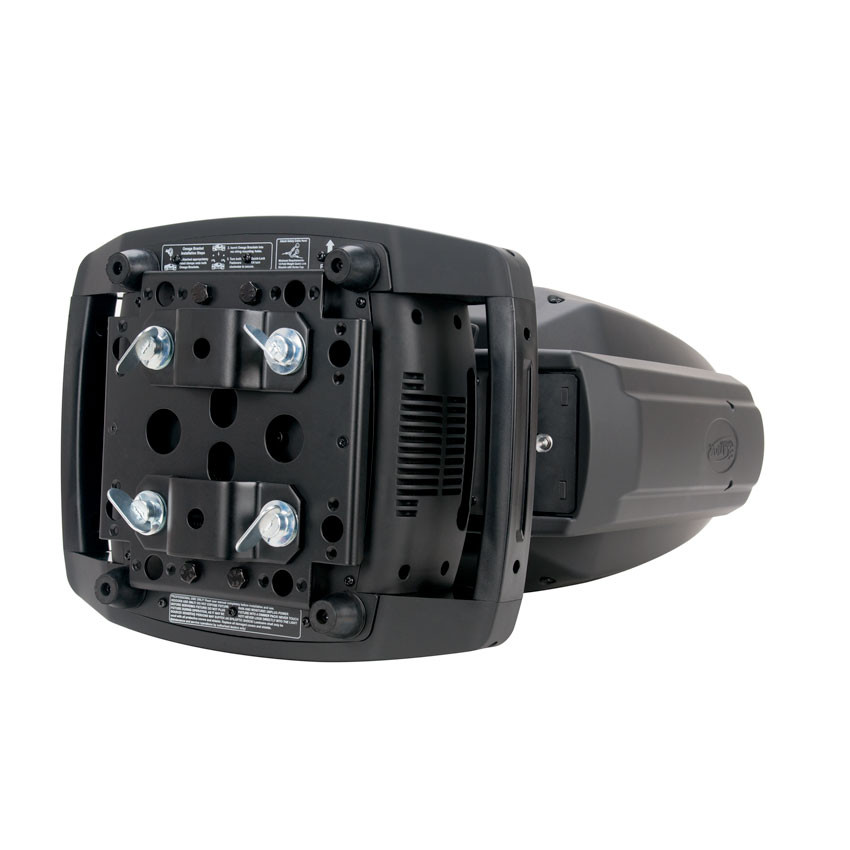

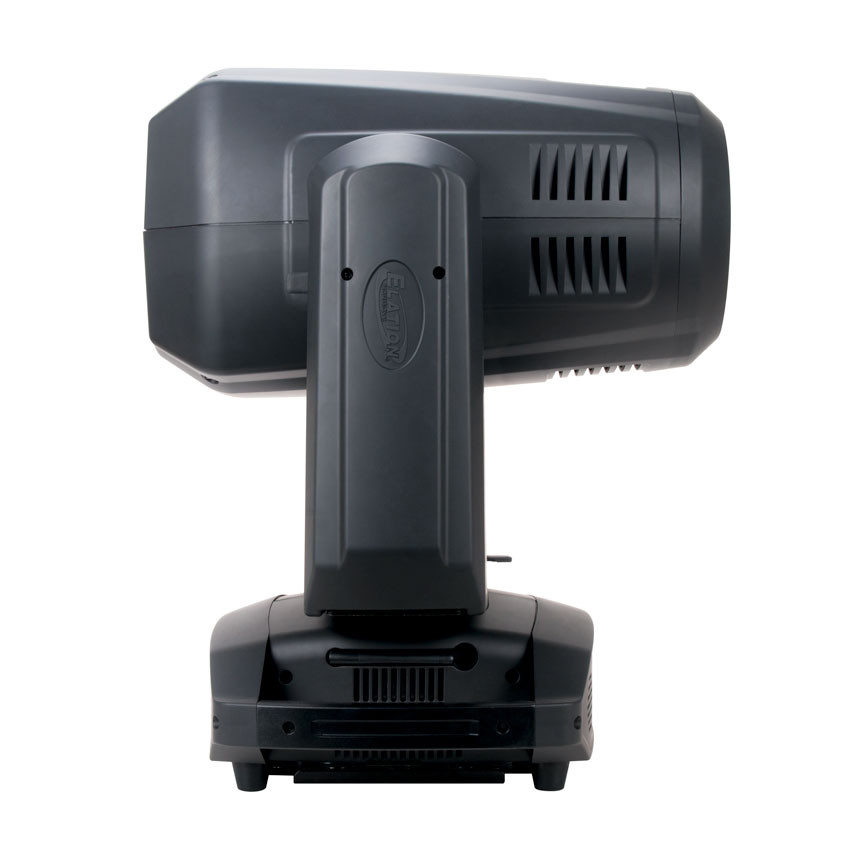

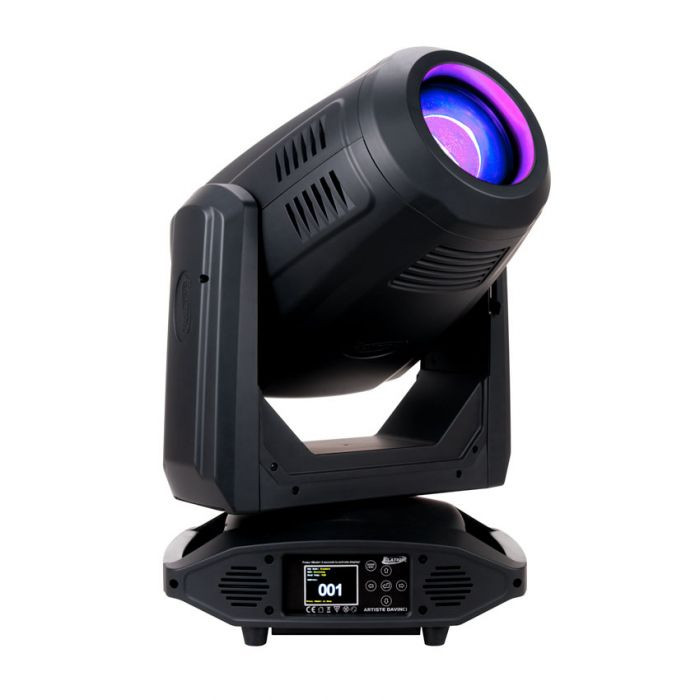

The Artiste DaVinci features a new 270W LED Cool White LED engine with advanced optics delivering over 12,000 total lumens, ultra wide 6 to 48 zoom, full CMY color mixing and linear CTO color correction, 7 dichroic colors including CTB and Violet, 6 rotating glass and 9 static-stamped metal interchangeable gobos, 3-facet and linear rotating prisms, frost filter, full 360 bi-directional animation wheel, motorized iris, focus, and auto-focus, variable dimming curve modes, high speed electronic shutter and strobe, hibernation mode, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation's E-FLY' internal wireless DMX transceiver, 5pin XLR, RJ45 etherCON, powerCON TRUE1 in/out connections, full color 180 reversible menu display with 6 button touch control panel, battery backup for display power, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
VIDEO
Features • 270W Cool White 12,000 Lumen LED Spot Luminaire
• 6 to 48 Motorized Zoom
• Full CMY Color Mixing and Linear CTO Color Correction
• 7 Dichroic Colors including CTB and Violet
• 6 Rotating and 9 Static-Stamped Interchangeable Gobos
• 3-Facet and Linear Rotating Prisms and Frost Filter
• Full 360 Bi-Directional Animation Wheel
• High Speed Electronic Shutter and Strobe
• Motorized Iris, Focus, and Auto-Focus
• Variable Dimming Curve Modes
• DMX, RDM, Art-NET, and sACN Protocol Support
• Elation's E-FLY' Internal Wireless DMX Transceiver
• Low Heat, Quiet Operation, Hibernation Mode
• Adjustable LED Refresh Rate Frequency and Gamma
• Flicker Free Operation For Broadcast TV and FILM
Specifications
SOURCE
270W Cool White LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Measurement @16.4 ft (5m) Full ON
23,560 LUX 2,189 FC (6 Min Zoom)
1,049 LUX 97 FC (48 Max Zoom)
EFFECTS
6 - 48 Motorized Zoom
3-Facet and Linear Rotating Prisms and Prism Macros
Full 360 Bi-Directional Rotating Animation Wheel
Frost Filter Hybrid Wash Effect
Motorized Zoom, Iris, Focus and Auto-Focus
High Speed Electronic Shutter and Strobe
Variable 16-Bit Dimming Curve Modes
Adjustable LED Refresh Rate Frequency and Gamma Brightness
COLOR
7 Dichroic Colors + CTB
Full CMY Color Mixing
Linear CTO Color Correction
GOBOS
2 Gobo Wheels
6 Interchangeable Rotating / Indexing Gobos
9 Interchangeable Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (40 total channels)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180 Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
Elation's E-FLY' Internal Wireless DMX Transceiver
5pin DMX In/Out
RJ45 etherCON In/Out (Art-NET, sACN)
powerCON TRUE1 Power In/Out
SIZE / WEIGHT
Length: 16.4" (416mm)
Width: 11..2" (284mm)
Vertical Height: 25.4" (645mm)
Weight: 56.0 lbs. (25.4kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
470W Max Power Consumption
14F to 113F (-10C to 45C)
APPROVALS / RATINGS
CE | cETLus | IP20
