Elation COLORSPOT-575 Pro DMX Moving Head

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

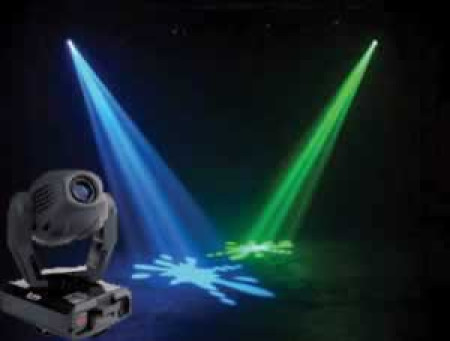

elation colorspot-575
This is a professional DMX moving head spot. With 15 colors + white, 32K, 56K, UV filters on 2 motorized wheels. 6 interchangeable rotating gobos, 9 fixed metal gobos, Iris, auto focus, dimming, and strobing in every color.


• DMX 512
• 8 and 16 bit pan/tilt 14-16 channels
• Four digit L.E.D menu panel
• Readout lamp usage, DMX values, etc
• Built in self test mode for all effects
• Remote lamp on/off
• Addressing, personality setting and effects
calibration via L.E.D menu panel
• Parabolic reflector
• Double condenser lens system
• 9000 lumens
• Lamp Source
Phillips MSR-575/2 (575W, 7200K,750HR LIFE)
Phillips MSD-575 (575W, 6000K, 2000HR LIFE)
Osram MSR-575/2 (575W, 6000K,1000HR LIFE)
• Silent fan cooling (speed controllable via DMX)
• Pan movement range 530 in 2.65 sec
• Tilt movement range 280 in 1.68 sec
• Automatic pan/tilt position correction
• 2 motorized color wheels
• 15 dichroic color filters + white
• 32K filter
• 56K filter
• UV filter
• 2 motorized gobo wheels
• 6 interchangeable 26.9mm Index-able gobos
• 9 fixed metal gobos with gobo shake function
• Combined mechanical dimmer/shutter
• Full range, smooth micro step driven dimming
• Variable Strobing 1-10 flashes per sec.
• Motorized iris
• Rotating 3-facet prism
• Motorized focus
• Motorized multi step zoom with 15, 18,
and 22 apertures
• Dimensions: 18.4" x 17.69" x 22.97"
(467 x 449 x 583 mm)
• Weight: 72 lbs (33 kg)
• 100/115/208/230V AC, 50/60 Hz
• 10A fuse
• 900 VA power consumption
(8A/120V) (4A/208V)
• Mounting plate (included)

Additional Information

ManufacturerElation Professional
Product ConditionNew - On Clearance
