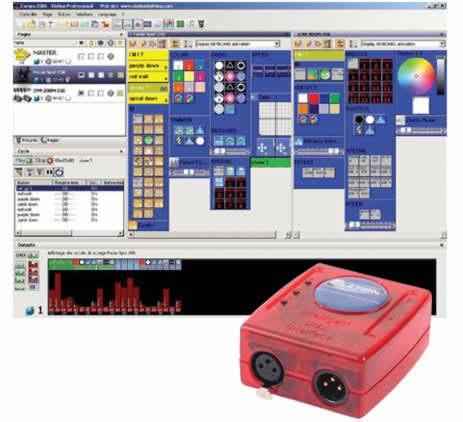

Elation COM2048FC+ Compu Live Software, Full 3D (20,480 art-

The advantage with a PC based system is the ability to see everything right in front of you.

Compu 2048FC+ features include: a vivid display of scenes and shows; the ability to name and rename all of your cues; plus have direct access to your colors and gobos.

Compu 2048FC+ has all the features for the professional lighting programmer but developed with the novice in mind, taking away fears and doubts about programming lighting.

Complete Package includes:
CD-Rom Bundle Software
USB to DMX Interface (dongle)
2.0 USB cable
User Manual

Compu 2048FC+ Main features
• 512 DMX channels per interface
• Maximum 512 DMX channels (to run more than 512 channels you must purchase more Compu Pro version dongles)
• Master Scene Page
• +40 Art-Net Universes (Ethernet Out)
• Unlimited number of Scenes!
• Unlimited number of Cycles! (shows)
• Fixtures only limited to channels used.
• Pre generated movements and shapes
• Live control button
• Large Library of Fixture profiles
• Easy Library Creator
• Easy View (Full Version 3D Offline visualizer)
- positioning Layers
- wire frame windows
- Multiple grid snaps
- Easy view video recording

Control features:
• Triggering by Timer/Date (pc clock)
• Hot key triggering (using keyboard)
• Touch Screen Ready!
• Triggering by Midi in (Midi Notes)
• Triggering Midi Time Code (In & Out)
• DMX triggering
• DMX-IN
• Audio Input
• Multi media triggering! Plays MP3's
• Easy to use Electronic Racks
- easy step - to program chases
- chaser - built in chases
- sequencer - built in sequencer
- x-fader - built in cross-fades
- follow spot - XY following
• EASY SHOW - time line sequencing - cue scenes to music and video files

USB interface (dongle) Technical Specs & Data:
• 3 Pin XLR out only
• Polarity (2-,3+)
• I/O ports
• Power by USB
• Optional external power: 9-12v DC
• Dimensions: 3.5" x 3" x 1.5"
• Weight: .2 lbs
• Can be used as stand alone device
• 96kb recording memory

CD-Rom bundle includes:
Compu 06 software
Compu 04 software
Compu 02 software
Easy Stand alone software
Magic 3D easy view software
DMX to USB interface drivers

Minimum System Requirements:
• Laptop or desktop computer with USB port
• Windows ME, XP or any up-to-date version
• 800x600 screen resolution
• 256Mb Memory
• Clock frequency: 800Mhz
• 32Mb RAM video card to use the "3D software" supporting Microsoft DirectX 9.0

Best Performance System Requirements:
• Laptop or desktop computer with USB port
• Windows XP or any up-to-date version
• 1280x1024 screen resolution
• 512Mb Memory
• Clock frequency: 1.5Ghz
• 128Mb RAM video card to use the "3D software" supporting Microsoft DirectX 9.0

For Compu Live Support, please call 866-245-6726 extension 548.

For use with windows XP or ME only. For Windows 98 or 2000, you must use Compu 02 edition.
