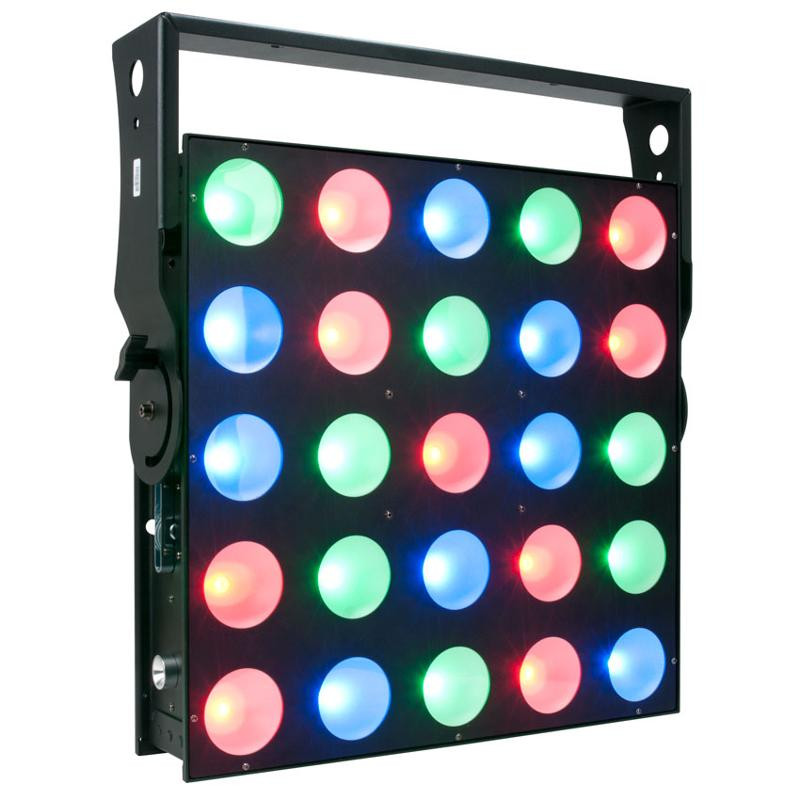

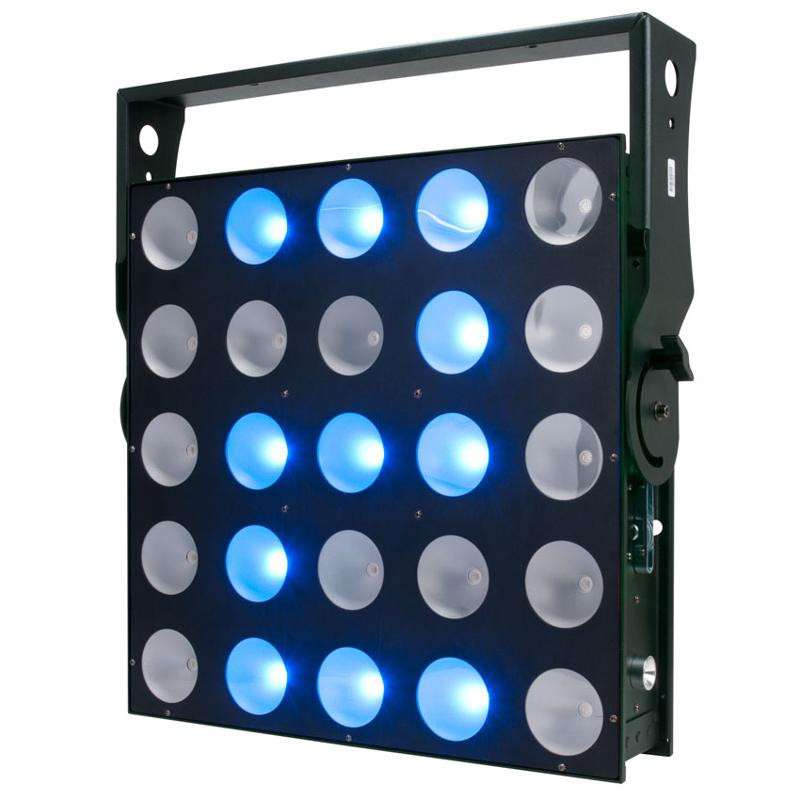

Elation CUEPIX PANEL 25X30 W COB Matrix Panel

Dropships Ships Directly From The Supplier
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
$1,499.99
As low as $25/mo.
VIP Price:
elation cuepixpanel
elation cuepixpanel Elation CUEPIX PANEL 25X30 W COB Matrix Panel Elation CUEPIX PANEL 25X30 W COB Matrix Panel Elation CUEPIX PANEL 25X30 W COB Matrix Panel Elation CUEPIX PANEL 25X30 W COB Matrix Panel
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

The new CUEPIX Panel features (25) long life 30W 3-in-1 RGB COB LEDs, a 60 beam angle, RDM (Remote Device Management), individual control of each COB module, variable / selectable dimming curves, strobe and zone chase effects, flicker free operation for TV and Film, 3pin and 5pin DMX and powerCon in/out connections, LCD menu display with 4 button control panel, integrated rigging points and optional rigging bracket available, and a multi-voltage universal auto switching power supply (100-250v).

SOURCE
(25) 30W 3-in-1 RGB COB LEDs
100,000 Hour Average Life

PHOTOMETRIC DATA
15,490 Max LUX (1439 fc) @2M (Full On)
3310 Max LUX (307 fc) @2M (Red LEDs)
3720 Max LUX (346 fc) @2M (Green LEDs)
5870 Max LUX (545 fc) @2M (Bllue LEDs)

FEATURES
High Power Long Life 3-in-1 RGB COB LEDs
60 Beam Angle / 80 Field Angle
Color Mixing + Individual Control of Each COB Module
Dimming : 0% - 100% of Each COB Module
Strobe, and Zone Chase Effects
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
Stand Alone Operation with Master/Slave Function
Integrated Rigging Points and Optional Rigging Bracket

EFFECTS
Variable / Selectable Dimming Curves
Auto Chase and Zone Program Macros

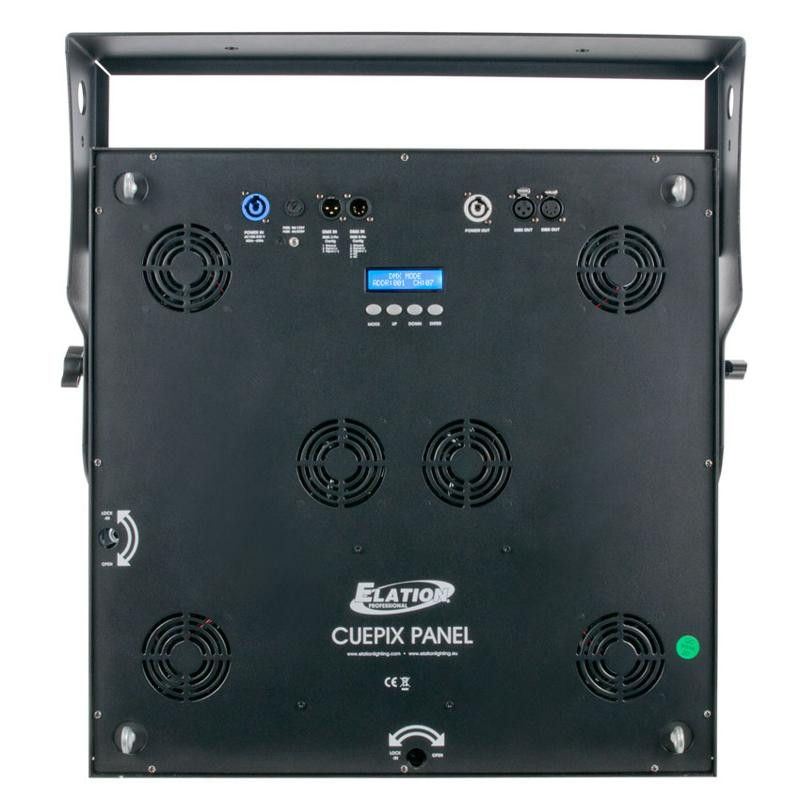

CONTROL / CONNECTIONS
5 DMX Channel Modes (3 / 6 / 7 / 75 / 79)
4 Button Control Panel and LCD Menu Display
3pin and 5pin DMX In/Out
RDM (Remote Device Management)
powerCON Power In/Out

SIZE / WEIGHT
Length: 24.8" (630 mm)
Width: 5.1" (130 mm)
Vertical Height: 25.6" (650 mm)
Weight: 36.4 lbs. (16.5 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
750W Max Power Consumption
-14F to 113F (-10C to 45C)

APPROVALS / RATINGS
CE Approved
IP20 Rated

Additional Information

UPC837874016659
SKUCUEPIXPANEL
ManufacturerElation Professional
Price$1,499.99
Product ConditionNew
