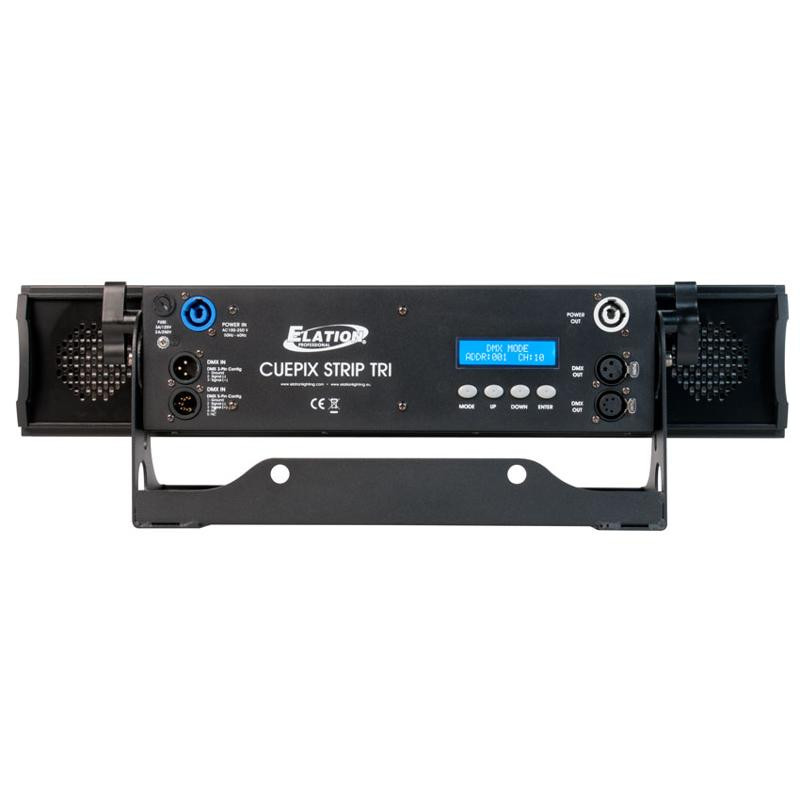

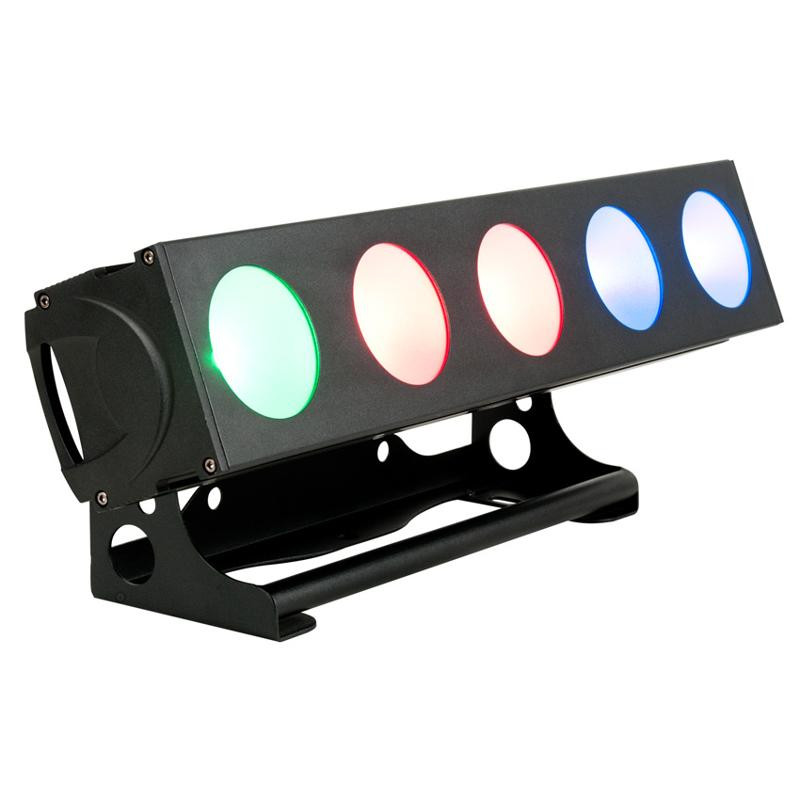

The new CUEPIX Strip Tri features (5) long life 30W 3-in-1 RGB COB LEDs, a 60 beam angle, RDM (Remote Device Management), individual control of each COB module, variable and selectable dimming curves, strobe and zone chase effects, flicker free operation for TV and Film, 3pin and 5pin DMX and powerCon in/out connections, LCD menu display with 4 button control panel, integrated rigging bracket , and a multi-voltage universal auto switching power supply (100-250v).
SOURCE
(5) 30W 3-in-1 RGB COB LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
1169 Max LUX (109 fc) @1M (Red LEDs)
1199 Max LUX (111 fc) @1M (Green LEDs)
1880 Max LUX (175 fc) @1M (Blue LEDs)
4170 Max LUX (387 fc) @1M (Full On)
FEATURES
High Power Long Life 3-in-1 RGB COB LEDs
60 Beam Angle / 80 Field Angle
Color Mixing + Individual Control of Each COB Module
Dimming : 0% - 100% of Each COB Module
Strobe and Zone Chase Effects
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
Stand Alone Operation with Master/Slave Function
Integrated Rigging Bracket
EFFECTS
Variable / Selectable Dimming Curves
Auto Chase and Zone Program Macros
CONTROL / CONNECTIONS
5 DMX Channel Modes (3 / 6 / 7 / 15 / 19)
4 Button Control Panel and LCD Menu Display
3pin and 5pin DMX In/Out
RDM (Remote Device Management)
powerCON Power In/Out
SIZE / WEIGHT
Length: 21.7" (550 mm)
Width: 6.3" (161.2 mm)
Horizontal Height: 6.8" (172.5 mm)
Weight: 13.9 lbs. (6.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
150W Max Power Consumption
-14F to 113F (-10C to 45C)
APPROVALS / RATINGS
CE Approved
IP20 Rated
INCLUDED ACCESSORIES
(1) powerCON Cable
