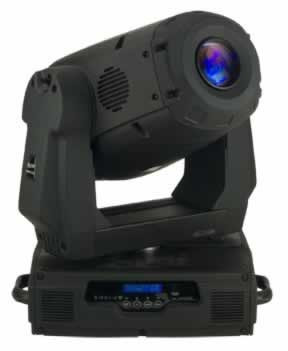

Elation DESIGN SPOT 575B 575W Moving Head Spot

elation design575b
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon
The Design Spot 575B by Elation Professional is an intelligent moving head spot featuring 8 static dichroic color ilters and 2 gobo wheels one with 6 rotating/indexing gobos and another with 7 static gobos with continuous, variable speed of each wheel scrolling in both directions.

Additional features include rotating 3facet prism, iris, focus, dimmer and shutter. The unit is available in black or white casing and is powered by Philips MSR 575/2 discharge lamp providing up to 1,000 hours estimated lamp life. Rated at IP20 this unit is designed for indoor applications only and can operate from a user selectable 90/120/208/240v via the internal power supply. Control data input is via 3 pin or 5 pin DMX data in and out connections. This unit provides a unique omega clamp mounting bracket assembly that integrates the hanging yoke as well as the safety cable rigging point in one and includes 2 x 1/4 turn Omega clamps.

• 8 Colors + 6 Rotating & 7 Static Gobos
• Phillips MSR575/2 Lamp
• 15 Beam Angle
• Modular Construction
• 3 Facet Rotating Prism

• 8 replaceable dichroic filters, 7 color, UV + White
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the dichroic colors on the color wheel + CMY

• 2 gobo wheels: 6 rotating & 7 static gobos
• 6 interchangeable, indexing, rotating gobos plus open
• 7 interchangeable, static gobos plus open
• Metal Gobo Size: 26.9mm outside, 23mm image diameter
• Glass Gobo Size: 26.7mm outside, 23mm image diameter
• Gobo overlay (gobo morphing)

Special Effects
• 3-facet rotating/indexing prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prism combinations
• Variable speed iris (5% - 100%)
• Motor driven focus from near to far

• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system

Light Source
• 6,630 Lux / 616 FC @ 16 feet / 5 meters
• Lamp life: 1,000hrs 7,500k, 575W
• Lamp: Phillips MSR575/2

Optical System
• 15 beam angle
• High output luminous-parabolic dichroic reflector
• All lenses are anti-reflection coated

• Maximum PAN-movement 630 in 2.0 secs or 540/16 bit
• Maximum TILT-movement 265 in 1.5 secs / 16 bit
• Automatic pan / tilt position correction
• Pan/tilt lock
• Vector mode with blackout

• 24 DMX Channels, 3 DMX modes - 13/15/20
• 32-Character LCD display
• USITT DMX-512 (16-bit resolution)
• RDMX - Remote DMX Addressing
• On board menu settings
• Sound active mode

Operation Parameters
• DB Rating: 55.9db@ 3' / 1m
• Rigging: 2 x 1/4 turn Omega brackets

Power Supply
• Magnetic ballast
• Voltage 90- 240vAC 50/60Hz
• Power consumption: 600W

• 3-pin & 5-pin XLR serial input/output

Dimensions and Weight
• Dimensions (L x W x H): 18.7" x 14.4" x 24.4" / 470 x 367 x 620mm (Head up)
• Weight: 63.8 lbs / 29 kg

Additional Information

ManufacturerElation Professional
Product ConditionNew - On Clearance
