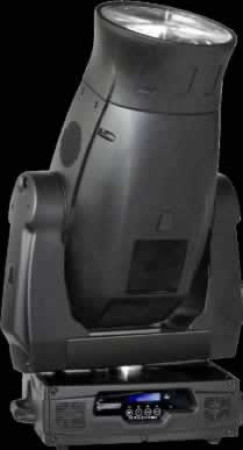

Elation DESIGN BEAM 1500E 1500W Moving Head Profile Fixture with CMY

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

elation designb15e
Images may show accessories or configurations not packaged with this item.
The Elation DESIGN BEAM 1500E offers an extreme ACL and Long Throw. This DESIGN BEAM 1500E moving head is a super bright profile fixture made for the largest stadiums and gives a 4.5 Beam angle.

• CMY Color Mixing
• 8 Dichroic Colors
• 13 Gobos (Metal)
• 6 Rotating Replaceable Gobos
• 7 Static Gobos
• Gobo Size 27mm od / 22mm id
• 3 Facet Rotating Prism
• Frost Filter
• Motorized Iris
• Motorized Focus
• Variable speed Shutter / Strobe
• Mechanical Dimmer 0-100%
• LCD touch display menu control
• EWDMX Wireless DMX receiver built in
• Pan/Tilt: 540/630 x 265
• Power: 1,900W MAX / 200v-240V 50/60hz 10A
• 16 bit motor control
• 3 DMX Modes - 21/23/35 Channel DMX modes
• 59db @ 3'
• 3-pin & 5-pin DMX
• 35,599 Lux / 3,300 fc @ 60'
• 87lbs
• 20.4" x 21" x 24.8"
• Lamp: MSR Gold 1510 SA/DE 6,000k CRI 78

Additional Information

ManufacturerElation Professional
Product ConditionNew - On Clearance
