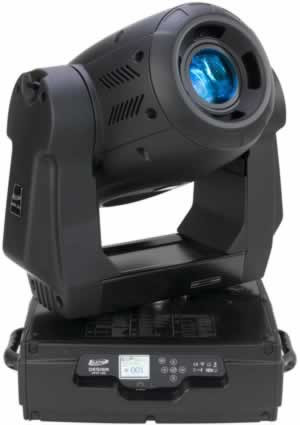

Elation DESIGN SPOT LED 90W LED Moving Head Hybrid Spot / Wash

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

elation designspl
Elation Design Spot LED is built to perform! Contains a super bright 90 watt LED. Fast and durable moving head. The Elation Design Spot LED is built to last!

FEATURES:
• 9 Dichroic Colors
• 14 Gobos
• LED Lamp Source With Equal Output to 250W Discharge
• 15 Beam Angle
• Variable Frost Filter (Hybrid Effect for Wash)

Colors
• Color wheel: 8 replaceable dichroic colors plus white, with two direction rainbow effect

Gobos
• 14 Gobos
• Two gobo wheels
• Gobo wheel 1: 7 rotating / indexing replaceable gobos
• Gobo wheel 2: 7 replaceable static gobos. 4 metal, 3 glass gobos
• Gobo Size 26.9mm (outside dimensions) / 23mm (inside dimensions)

Special Effects
• 3 Facet Rotating / Indexing Prism
• Variable Frost Filter (Hybrid Effect for Wash)
• Motorized Iris

Shutter/Dimmer
• Variable speed Shutter / Strobe
• Strobe effect with 0-18 flashes per second
• Mechanical Dimmer 0-100%

Light Source
• 1989 Lux / 185 fc at 16 feet / 5 meters at full
• LED lamp source with equal output to 250W discharge
• Lamp life: 50,000 hours, 6500 K, CRI=70
• Lamp: CBM-360-W LED 90Watt

Optical System
• 15 Beam Angle
• Motorized focus
• Improved optics and flat beam field

Movement
• Pan / Tilt 540/630 x 265
• Automatic Pan / Tilt correction
• Pan / Tilt locking system

Control
• 16 Channels DMX
• LCD display
• Reversible display option, 180 flip
• USITT DMX-512 Complaint
• 16 prism macros
• RDMX addressing
• 8 built-in programs
• 16 bit mode
• 3 operation modes: DMX controlled, stand alone or sound activated

Operation Parameters
• Max ambient temperature: 45C
• IP Rating: IP20
• dB Rating: 55 dB at 3'

Power Supply
• User selectable power supply (internal tap)
• Nearly 1/2 power consumption of standard DS250 PRO
• 240W MAX / 120v-240V 50/60hz

Connectors
• 3-pin & 5-pin DMX connections

Dimensions and Weight
• Dimensions: (L x W x H) 6.75" x 16.75" x 19.75" / 425.45mm x 425.45mm x 501.65mm
• Weight: 48.5 lbs / 22 kg

Approvals
• CE approved

Additional Information

UPCN/A
SKUDESIGNSPL
ManufacturerElation Professional
Product ConditionNew - On Clearance
ReturnableNo
