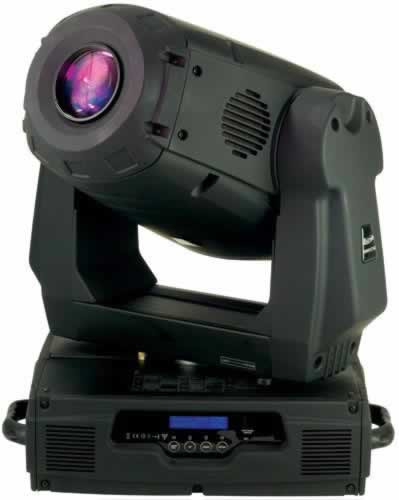

Elation DESIGN SPOT 575 Moving Head Spot and Wash

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

elation designspot575e
Images may show accessories or configurations not packaged with this item.
The DESIGNSPOT575E ia a moving head spot & wash In one.

CONTROL FEATURES
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 24 DMX Channels
• 32-Character LCD display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode

OPTICAL SYSTEM
• High output luminous-parabolic dichroic reflector
• 15 to 30 linear Zoom
• All lenses are anti-reflection coated
• 29,700 lux @ 2.5M

COLORS
• Full Color mixing with CMY flag system
• 8 Dichroic filters, 7 color, UV + White
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

GOBOS
• 2 gobo wheels, 12 total gobos, 6 metal, 6 glass
• 6 interchangeable, indexable, rotating gobos plus open
• 6 interchangeable, indexable, rotating gobos plus open
• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)

ANIMATION
• 1 rotating animation wheel

SHUTTER/DIMMER
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system

IRIS
• Beam narrow to wide (5% - 100%)
• Variable speed iris macros
• Small to large and large to small

FROST
• Variable Frost Control
• Hard edge to soft edge

PRISM
• 3-facet rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prism combinations

FOCUS
• Motor driven focus from near to far

ZOOM
• 15 - 30 degree linear Zoom

LAMP
• Phillips MSR 575/2 SADE (575W, 8500K, 1500 HRS)

PAN/TILT
• Automatic Pan / Tilit position correction
• Maximum PAN-movement 630 in 2.0 secs (default) or 540 (user selectable) / 16 bit
• Maximum TILT-movement 265 in 1.5 secs / 16 bit
• Vector Mode with blackout

RIGGING
• 2 X 1/4 Turn omega brackets

POWER SUPPLY
• Electronic Ballast
• Voltage 90- 240vAC 50/60Hz
• Power Consumption: 600W (120V = 7A)

Additional Information

UPC N/A
SKU DESIGNSPOT575E
Manufacturer Elation Professional
Product Condition New - On Clearance
Returnable No
