Elation Design Wash LED Zoom High Output

elation designwashledzoom
elation designwashledzoom Elation Design Wash LED Zoom High Output Elation Design Wash LED Zoom High Output Elation Design Wash LED Zoom High Output
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon
You May Be Interested In

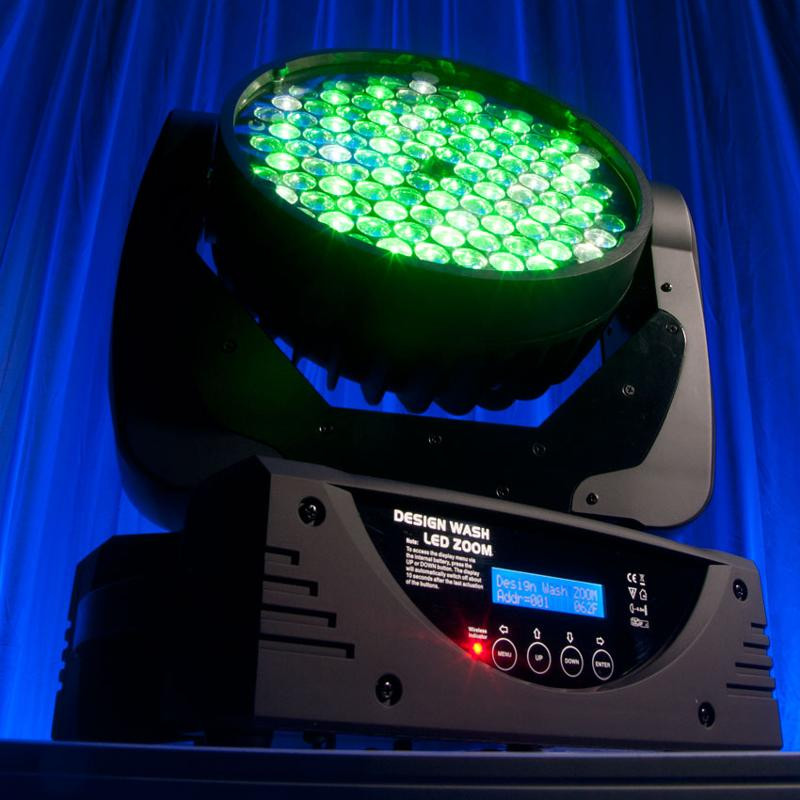

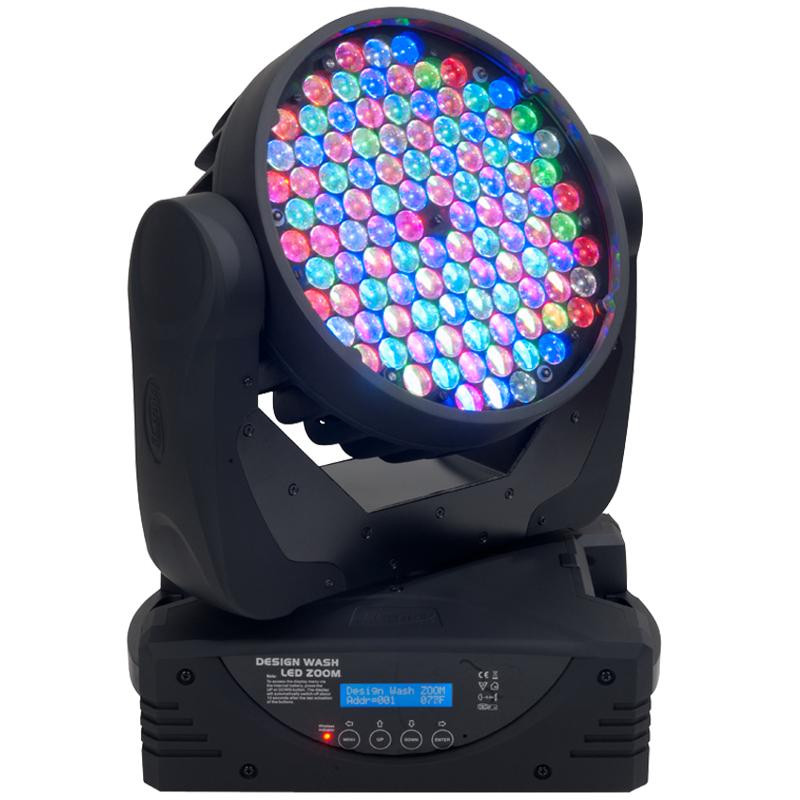

The new ELATION PROFESSIONAL DESIGN WASH LED ZOOM' is an IP20 rated high output pro grade moving head wash fixture featuring (108) 3W Osram LEDs consisting of 40 Red, 28 Green, 30 Blue, and 10 White, a 7 - 30 degree beam angle zoom range, high speed Pan and Tilt movement with 16-bit resolution, color mixing and rainbow effect, 7 internal auto programs, LCD menu display with 4 button control panel, flicker free operation for TV and Film, 3 & 5pin DMX connections, a low power consumption of 320W (at full power) and a multi-voltage universal auto switching power supply (100-240v 50/60Hz). The DESIGN WASH LED ZOOM is also available with a white painted exterior (SKU# DWZ070).

FEATURES
Pan: 540 or 630 (User Selectable)
Tilt: 265
High Speed 16-Bit Resolution Movement
7 - 30 Beam angle Zoom Range / 13-40 field angle
7 Internal Auto Programs

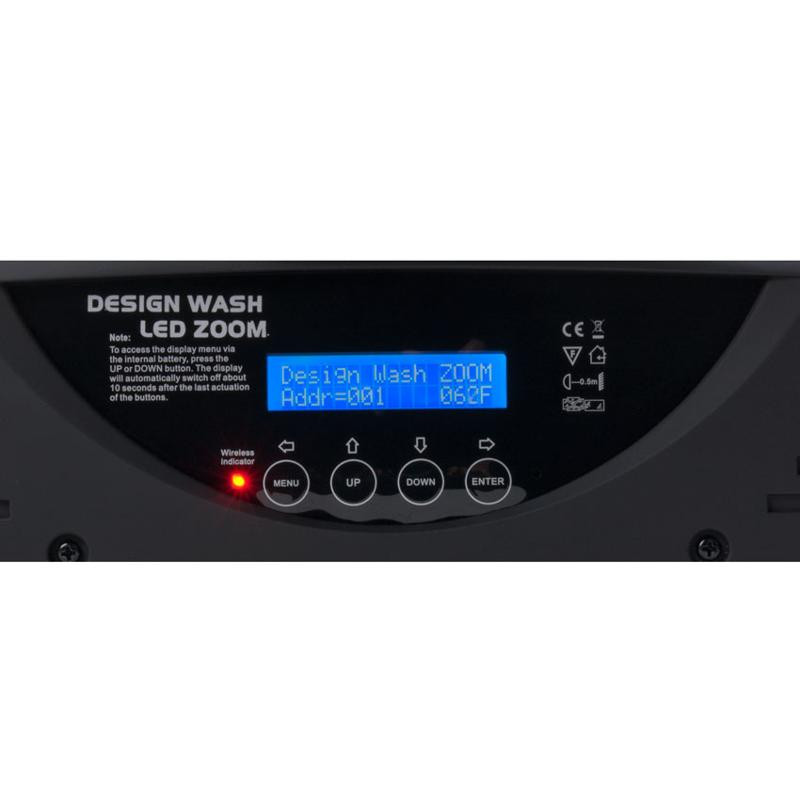

4 Button LCD Control Panel
Single Omega Bracket Mounting
Flicker Free Operation for TV and Film
Microphone for Sound Activated Programs
Stand Alone Operation with Master/Slave Function
Software Upload via optional E-Loader device

SOURCE
(108) 3W OSRAM LEDs (40 Red, 28 Green, 30 Blue, and 10 White)
50,000 Hours Average Life

PHOTOMETRICS
Pending

EFFECTS
Color Mixing
Rainbow Effect
Dimming: 0% - 100%
Strobe: 1 - 18 Flashes Per Second
Pulse Effect

CONTROL / CONNECTIONS
14 DMX Channels

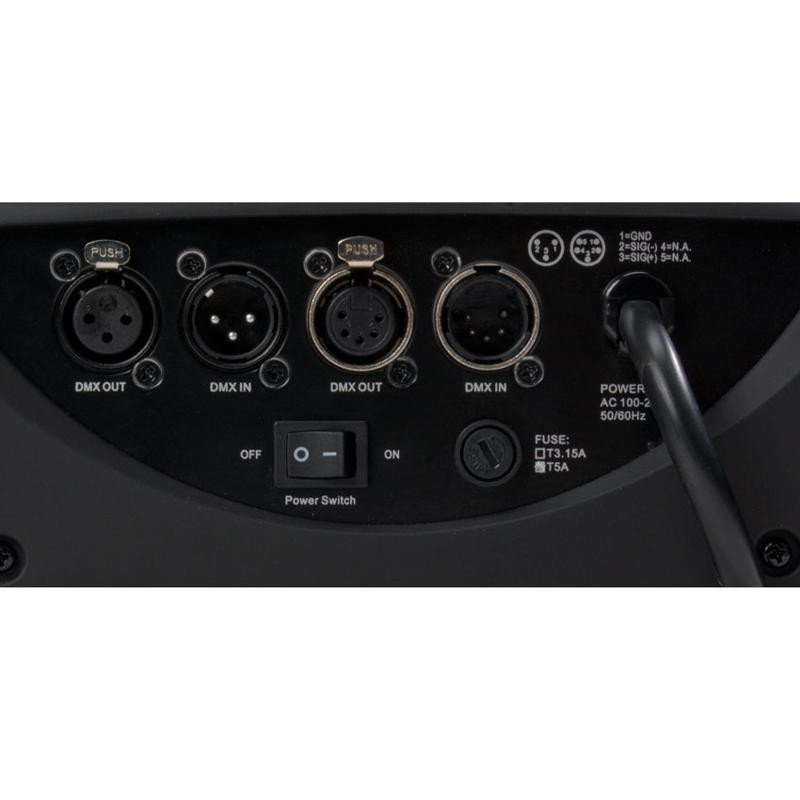

3 & 5 pin DMX In/Out

SIZE / WEIGHT
Length: 13.1" (332mm)
Width: 8.7" (220mm)
Vertical Height: 17.5" (445mm)
Weight: Pending

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Power Consumption: 320W (at full power)
-10C/14F to 45C/113F

APPROVALS / RATINGS
CE Approved
cETLus Approved
IP20 Rated

WHITE PAINTED EXTERIOR
SKU# DWZ070

Additional Information

UPC837874016086
SKUDESIGNWASHLEDZOOM
ManufacturerElation Professional
Price$1,999.99
Product ConditionNew - On Clearance
