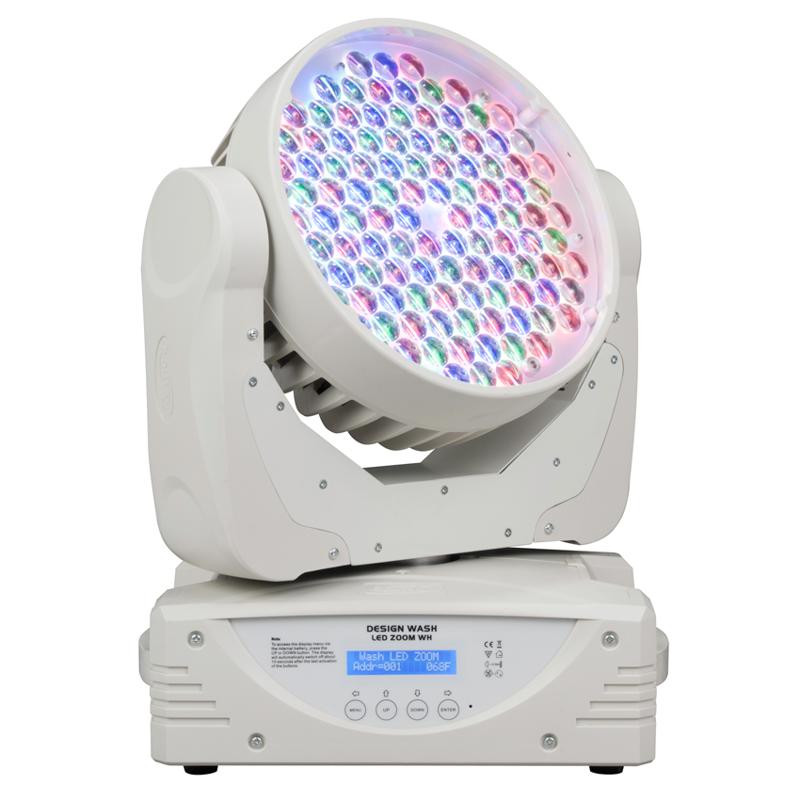

The new ELATION PROFESSIONAL DESIGN WASH LED ZOOM is an IP20 rated high output pro grade moving head wash fixture featuring (108) 3W Osram LEDs consisting of 40 Red, 28 Green, 30 Blue, and 10 White, a 9 degree beam angle, a 7 - 30 degree zoom beam angle range, high speed Pan and Tilt movement with 16-bit resolution, color mixing and rainbow effect, 7 internal auto programs, LCD menu display with 4 button control panel, flicker free operation for TV and Film, 3 & 5pin DMX connections, a low power consumption of 320W (at full power), a multi-voltage universal auto switching power supply (100-240v 50/60Hz), and a white painted exterior.
FEATURES
Pan: 540 or 630 (User Selectable)
Tilt: 265
High Speed 16-Bit Resolution Movement
7 - 30 Beam angle Zoom Range / 13-40 field angle
7 Internal Auto Programs

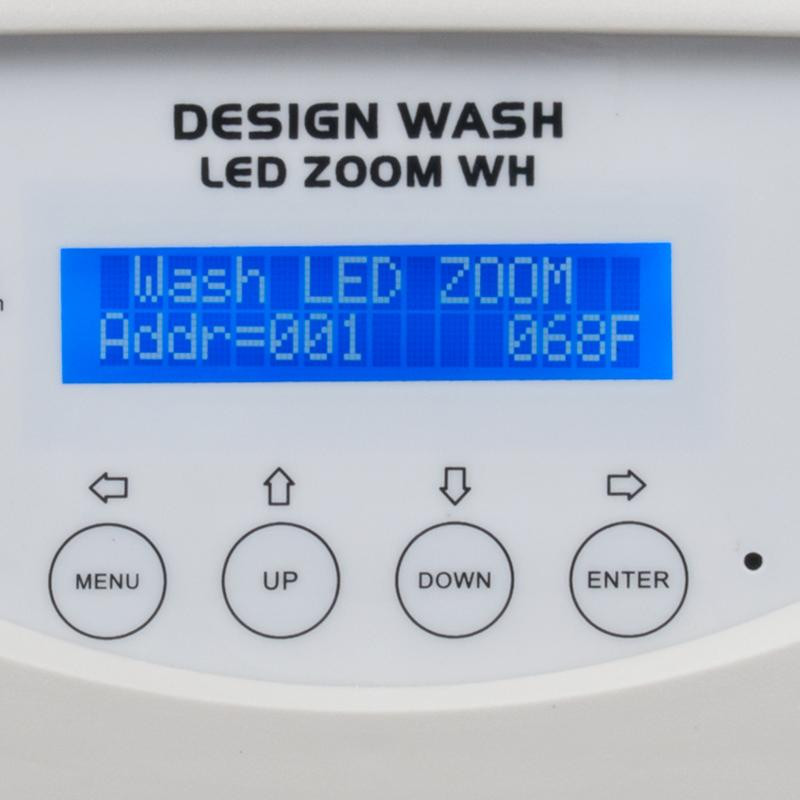

4 Button LCD Control Panel
Single Omega Bracket Mounting
Flicker Free Operation for TV and Film
Microphone for Sound Activated Programs
Stand Alone Operation with Master/Slave Function
Software Upload via optional E-Loader device
SOURCE
(108) 3W OSRAM LEDs (40 Red, 28 Green, 30 Blue, and 10 White)
50,000 Hours Average Life
PHOTOMETRICS
Pending
EFFECTS
Color Mixing
Rainbow Effect
Dimming: 0% - 100%
Strobe: 1 - 18 Flashes Per Second
Pulse Effect
CONTROL / CONNECTIONS
14 DMX Channels
3 & 5 pin DMX In/Out
SIZE / WEIGHT
Length: 13.1" (332mm)
Width: 8.7" (220mm)
Vertical Height: 17.5" (445mm)
Weight: Pending
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Power Consumption: 320W (at full power)
-10C/14F to 45C/113F
APPROVALS / RATINGS
CE Approved
cETLus Approved
IP20 Rated
OPTIONAL ACCESSORIES
E-Loader Firmware Upgrade Device
