Elation DESIGNWASHPRO Moving Head LED Wash Light

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

elation designwshp

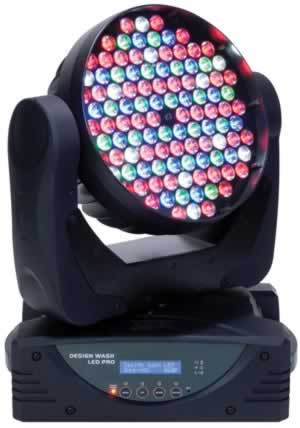

The Design Wash LED Pro by Elation Professional is a high output LED RGBW moving head wash light equipped with 108 3W Rebel LEDs, 52 red, 22 green, 22 blue and 12 white featuring brilliant light output and infinite color possibilities. A standard beam angle of 39.5 is produced with the standard 25 lens (8,948 Lux @ 2.5M @ full).

The DLED 36 also features built-in EWDMX receiver for wireless DMX. The design of the fixture is optimized providing up to 50,000 hours estimated LED life and is equipped with a 98240v multi-voltage internal power supply. The Design Wash LED Pro is fan cooled and rated IP 20, ideal for indoor applications. DMX control is via 13 DMX channels and control data input is via 3-pin or 5-pin DMX in/out XLR connections and rigging includes a single omega bracket.

. 52 Red ,22 Green, 22 Blue + 12 White
. 25 Lens = 39.5 Beam Angle Effect
. Built in EWDMX Receiver for Wireless DMX
. Digital LCD Display
. Battery power on/off for LCD display
. 3 pin or 5pin DMX in/out
. 50,000 hour rated LED source
. Built in Color, Strobe, Dimming macros
. 13 DMX Channels
. 3 Phase motors for Faster Pan / Tilt
. 630 or 540 Pan x 265 Tilt
. 98-240v Multivoltage internal power supply
. Fan Cooled - Fans regulated by auto or dmx
. Rigging by single omega bracket
. 360 Watts at full power - 3A
. DB rating @ 1M = 59.6db
. 4,950 Lux @ 3M @ Full
. Size = 17.2" x 13" x 8.6"
. Weight = 20.6lbs.

Additional Information

ManufacturerElation Professional
Product ConditionNew - On Clearance
