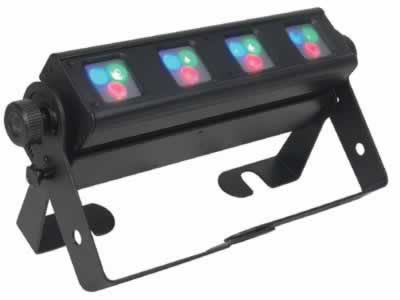

HIGH OUTPUT LED COLOR CHANGER
FEATURES
• 12 x 1W Luxeon LED's - (4 Ea. R, G, B)
• Seamless RGB color mixing
• Infinite Color possibilities
• Compact Design
• 44 Beam Angle
• 480 lumens @ 1m per unit
• 1340 lumens @ 1m per kit of 4 units
• Long Life L.E.D. (rated at 100,000 Hours)
• Built-in Power Supply and DMX 512 Control
CONTROL SPECIFICATIONS
• USITT-DMX 512
• 6, 12 OR 15CH operation modes
• 12 Position Binary dip switches
• 3 & 5 pin XLR in/out
• IEC Power in/out
CONTROL FEATURES
• Master/ Slave auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• 0-100% Dimming
POWER SUPPLY
• 90-250V AC, 50/60Hz
• On/Off Power switch
• Power Consumption: 30 watts
RIGGING
• Mounting bracket and safety I-hook installed
• Optional bracket kit for multiple units (DLEDKIT)
DIMENSIONS & WEIGHT:
• 13"L x 3"W x 4.5"H
• 4.5 lbs.
