Elation DMBASE Rotating DMX Video Display/Media Base

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

elation dmbase
Images may show accessories or configurations not packaged with this item.

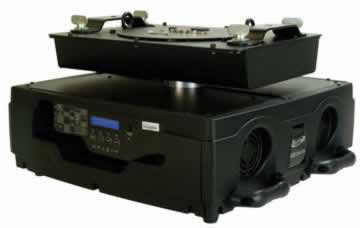

Rotating DMX Video Display/Media Base


• Digital Display
• 3 & 5 Pin XLR, DMX Inputs and Outputs
• Plasma connection types: VGA, Component, HDMI and IF
• Power connection type: 15A Edison outlet
• Power outlet Controllable via DMX
• Audio connections: RCA (L&R)
• Pan movement range: 360 degree (Coarse, Fine and Speed controllable via DMX)
• Operation Modes: DMX, via 4 Channels and Master/Slave stand-alone
• Internal Scene Memory (250 Scenes Total)
• Internal programs (10 programs with 64 steps each)
• Maximum ambient temperature: 113F/45C
• Maximum weight capacity: 110 lbs/50 kg
• Maximum current draw: 10A
• Output load: 1200W @ 120V AC
• Power consumption: 38W (without load). Up to, 1200W with load.
• Dimensions (LXWXH): 18.87" x 19.26" x 10.36" / 480x490x264 mm
• Weight: N.W 61 lbs / 27.5 kg

Additional Information

ManufacturerElation Professional
Product ConditionNew - On Clearance
