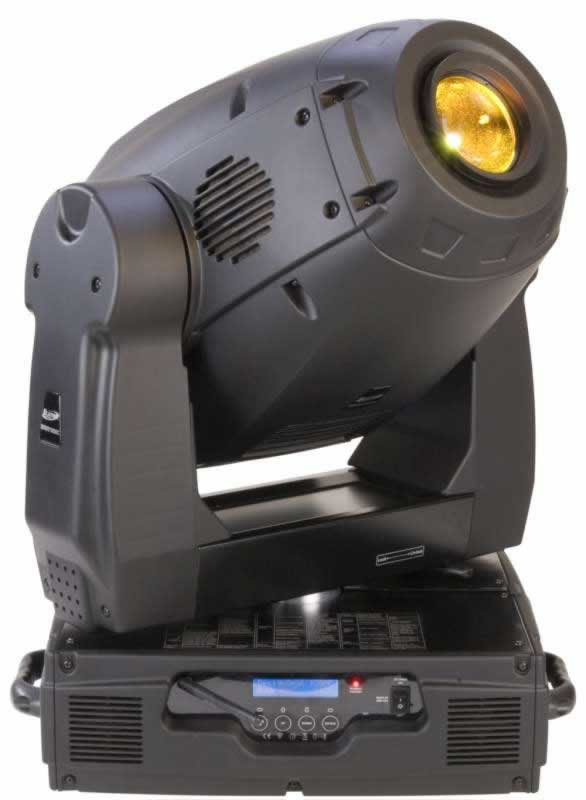

Elation DESIGN SPOT 1200C 1200Watt Compact Feature Packed Moving Head

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

elation ds1200c
elation ds1200c Elation DESIGN SPOT 1200C 1200Watt Compact Feature Packed Moving Head Elation DESIGN SPOT 1200C 1200Watt Compact Feature Packed Moving Head
Images may show accessories or configurations not packaged with this item.

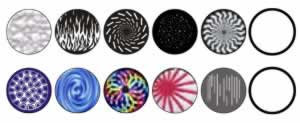

The Design Spot 1200C (DS 1200C) by Elation Professional is an intelligent 1200 watt compact moving head hybrid spot and wash in one featuring CMY color mixing plus variable CTO and EWDMX buit-in wireless DMX receiver. DS 1200C is equipped with 8 static/replaceable dichroic filters including CTB and UV and two gobo wheels containing 12 rotating/indexing gobos.

Additional features include variable beam angle 16-41, variable focus, variable iris and extreme light output - over 100,000 lumens. This unit is available in black casing and features a compact case design. The DS 1200C is powered by Phillips MSR 1200/2 SA/DE double ended discharge lamp providing up to 750 hours estimated lamp life. Rated at IP20 this unit is designed for indoor applications only and can operate from a 208-240V AC, 60HZ. Control data input is via 3 pin or 5 pin DMX data first in and out connections.

• 1200 watt compact / feature packed moving head spot
• Hybrid spot / wash in one
• CMY color mixing + variable CTO
• 8 Static / replaceable dichroic colors
including CTO, CTB and UV
• 12 rotating / Indexing gobos
• 2 rotating / indexing prism (3-facet & 3D prism)
• Variable beam angle 16-41
• Variable zoom
• Extreme light output - over 100,000 lumens!
• Frost
• Variable iris
• Variable focus
• Animation effect wheel
• EWDMX wireless DMX receiver built in

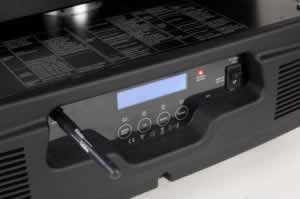

• Digital LCD blue / white menudisplay
• Pan / tilt lock - 630 or 540 pan x 265 Tilt
• 27 DMX channels standard mode or
38 channels extended mode
• Compact case design

• DMX Channels: 27 DMX Channels standard mode or
38 channels extended mode
• Control: RDMX, 3 pin or 5pin DMX in/out
• Dimmer: Yes
• Strobe: Yes
• Iris: Yes
• Power supply: 208-240v / 60hz
• Power consumption: 1478W
• Fuse: 6H/2A/15A Electronic Ballast
• DB Rating: 56.3DB @ 3'
• Lamp: MSR1200/2 SA/DE Philips double
ended discharge lamp
• Lamp life: 1200W, CRI 85, 7500K, 750 HRS
• Lux: 17,880 @ 5 M
• Dimensions: ( L x W x H ) 18.5" x 18.2" x 20.3" /
470 x 462 x 517mm
• Weight: 78.5 lbs. / 35.6 kg
• Rigging: Rigging included
1 x safety cable
1 x data cable (3-pin)
