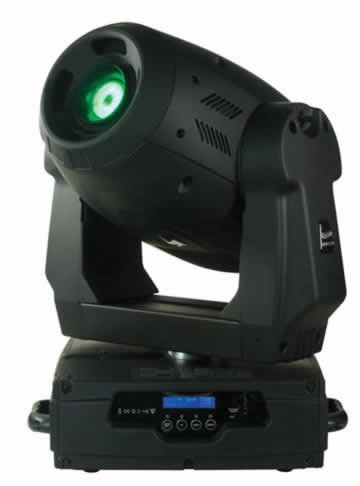

Elation DS300E Design Spot 300E

CONTROL FEATURES
• 21 DMX Channels
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• Full Text LCD Display
• On board menu settings
• 3-pin & 5-pin XLR serial input/output

OPTICAL SYSTEM
• High output luminous-parabolic dichroic reflector
• Beam Angle 22-degrees

COLORS
• 7 Interchangeable Dichroic filters + White
• CMY color mixing
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

GOBOS
• 2 Gobo Wheels, 13 Total Gobos, 10 Metal, 3 Glass
• 6 Interchangeable, Indexable, Rotating Gobos plus open
• 7 Interchangeable, Static Gobos plus open
• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Glass Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)

SHUTTER/DIMMER
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
• Flicker free

IRIS
• Beam narrow to wide (5% - 100%)
• Variable speed iris macros
• Small to large and large to small

FROST
• Hard edge to soft edge frost

PRISM
• Effect wheel with 3-facet rotating/Indexing Prism & 3D Glass Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prisim combinations

FOCUS
• Motor driven focus from near to far

LAMP
• Philips "Fast Fit" MSR300 (300W, 8500K, 1000 HRS)

PAN/TILT
• Automatic Pan /Tilt position correction
• Pan/Tilt Lock
• Maximum PAN-movement 630 in 2.0 secs (default) or 540 (user selectable) / 16 bit
• Maximum TILT-movement 265 in 1.5 secs / 16 bit
• Vector Mode with blackout

POWER SUPPLY
• Electronic Power Supply - Multi-voltage: AC 98V 240V 50/60Hz

DIMENSIONS & WEIGHT
• (LxWxH): 15.83" x 17.68" x 20.11" - Head Level
• 58 lbs. 26.5 kgs.

List Price: $4599.95
