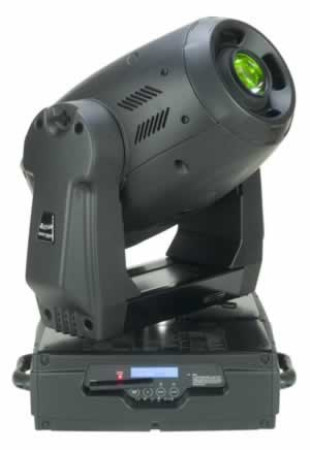

Elation DESIGN SPOT 300 PRO 300W CMY Spot Moving Head w/ Zoom

Features
• CMY Color Mixing
• 2 Gobo Wheels, 13 Total Gobos
• MSR 300 Discharge Lamp
• 16 - 41 Variable Beam Angle
• EWDMX Wireless DMX Receiver Built-In
• Prism + Iris + Frost

Colors
• CMY color mixing
• 8 interchangeable dichroic filters (including CTO, UV & CTB) plus white
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the dichroic colors on the color wheel + CMY

Gobos
• 2 Gobo Wheels, 13 Total Gobos, 10 Metal, 3 Glass
• 6 Interchangeable, Indexable, Rotating Gobos plus open
• 7 Interchangeable, Static Gobos plus open
• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Glass Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)

Special Effects
• Effect wheel with 3-facet & 3D Glass Prism rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prism combinations
• Hard edge to soft edge frost
• Beam narrow to wide (5% - 100%)
• Variable speed iris macros
• Small to large and large to small

Shutter/Dimmer
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system

Light Source
• 5,300 Lux / 492 FC @ 16 feet / 5 meters
• Lamp life: 1,000hrs 8,500k, 300W
• Lamp: MSR 300 Fast Fit Gold

Optical System
• 16 - 41 variable beam angle
• Motor driven Variable Zoom 16 - 41
• Motor driven focus from near to far
• High output luminous-parabolic dichroic reflector

Movement
• Maximum PAN-movement 630 in 2.0 sec. (default) or 540 (user selectable) / 16 bit
• Maximum TILT-movement 265 in 1.5 sec. / 16 bit
• Automatic Pan / Tilt position correction
• Pan & Tilt locking system for transport

Control
• 22 DMX Channels
• Full Text LCD Display
• USITT DMX-512 (16-bit resolution)
• RDMX - Remote DMX Addressing
• EWDMX Wireless DMX receiver built in
• On board menu settings
• Vector mode with blackout
• Flicker free

Operation Parameters
• IP Rating: IP20
• DB Rating: 52db@ 3'

Power Supply
• Electronic power supply
• Multi-Voltage: AC 98V 240V 50/60Hz
• Power consumption: 4.1A or 490W
• Fuse: 4.5A

Connectors
• 3-pin & 5-pin XLR serial input/output

Dimensions and Weight
• Dimensions (L x W x H): 15.83" x 17.68" x 20.11" / 402 x 450 x 511mm - head level
• Weight: 58 lbs. / 26 kgs.

Approvals
• ETL approved
