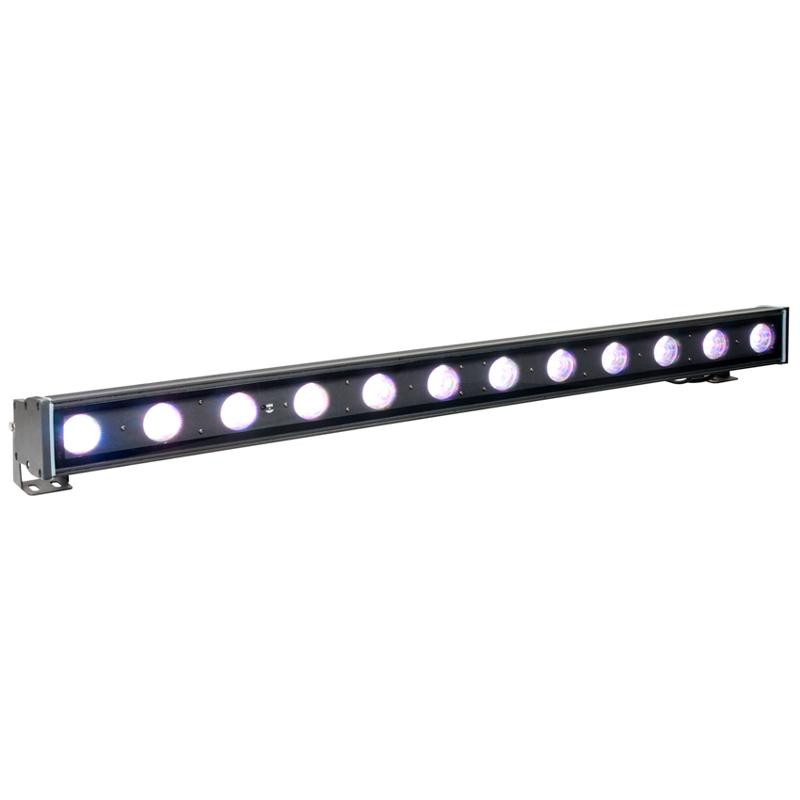

Elation ELAR EXTQW BAR HP Quad Color RGBW LED

elation elarextqwbarhp
elation elarextqwbarhp Elation ELAR EXTQW BAR HP Quad Color RGBW LED Elation ELAR EXTQW BAR HP Quad Color RGBW LED Elation ELAR EXTQW BAR HP Quad Color RGBW LED Elation ELAR EXTQW BAR HP Quad Color RGBW LED
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Currently Out of Stock at Planet DJ
In Stock May Be Available on Amazon
In Stock Free Shipping On Most Orders Over $35
Buy on Amazon
The IP65 Rated ELAR EXTQW BAR HP' features (12) 5W QUAD RGBW Color LEDs, a 25 beam angle, variable color and strobe effects, 3 DMX channel modes, flicker free operation for TV and FILM, 3pin in/out DMX and 4pin power in/out connections, (2) integrated adjustable mounting brackets, linkable power for up to (7) units at 120V and (14) units at 240V, 90W max power consumption, programmable IR remote (sold separately) and a multi-voltage universal auto switching power supply (100-240v).

FEATURES
25 Beam Angle
IP65 Rated
Die-Cast Aluminum Housing / Tempered Glass

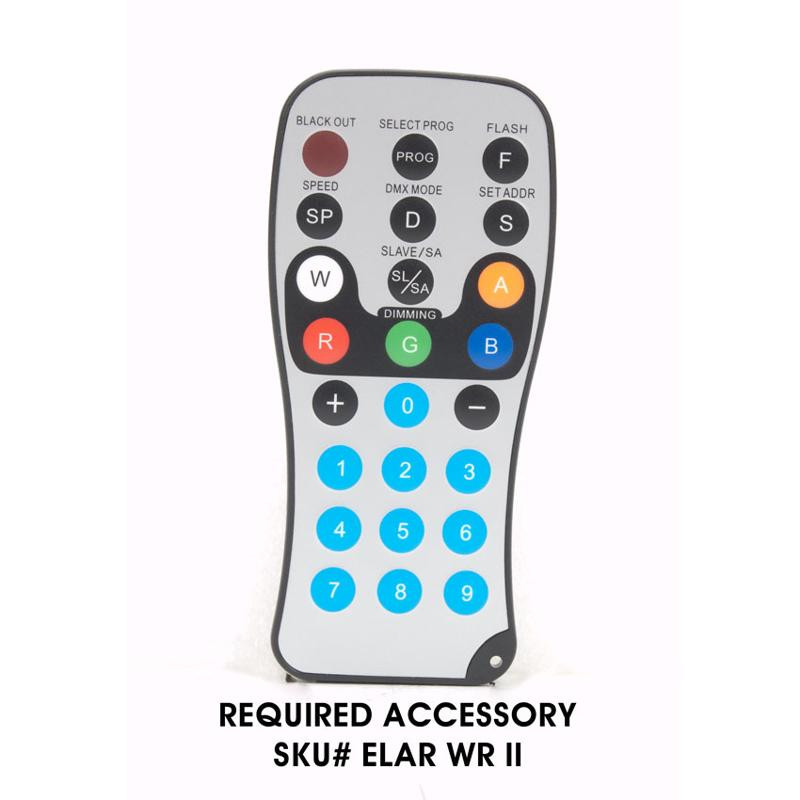

IR Remote Programmable
Flicker Free Operation for TV and FILM

SOURCE
12 x 5W QUAD Color (RGBW) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
1430 LUX (133 FC) @9.8 ft. (3m) 25 Full ON

EFFECTS
Color + Variable Strobe Macros
Electronic Dimming: 0% - 100%

COLOR
RGBW (Red, Green, Blue, White)

CONTROL / CONNECTIONS
3 DMX Channel Modes (7/11/51)

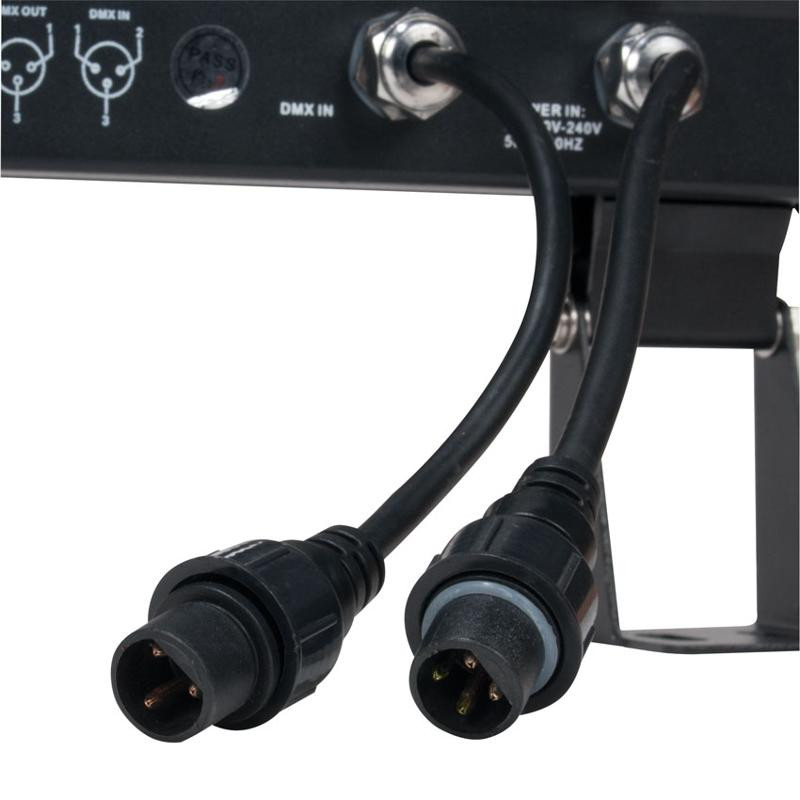

3pin DMX In/Out

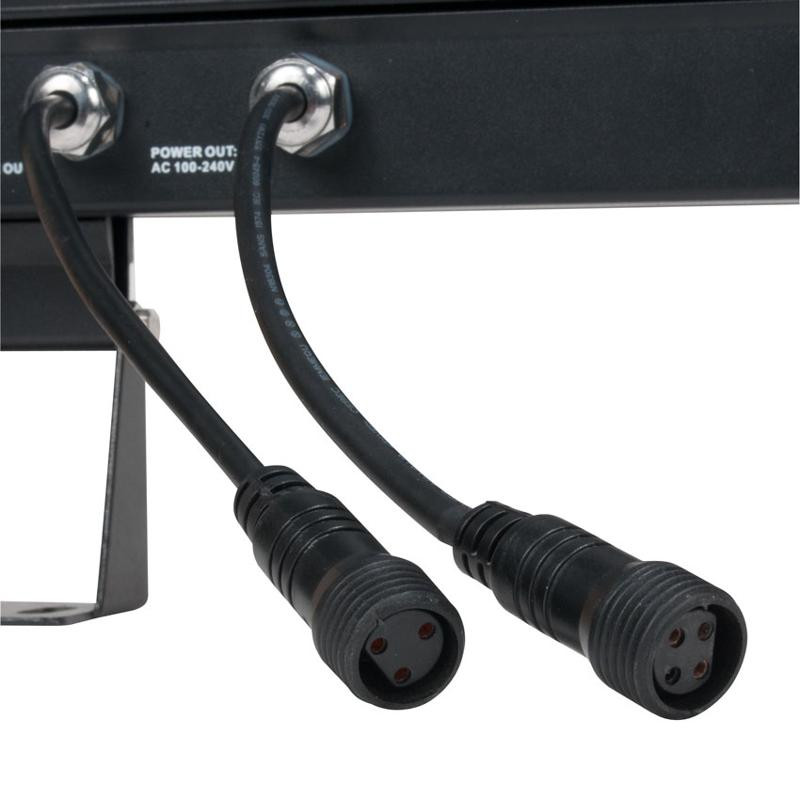

4pin Power In/Out
Power Link Multiple Units - (7) at 120V (14) at 240V

SIZE / WEIGHT
Length: 39.4" (1000mm)
Width: 3.5" (90mm)
Vertical Height: 7.1" (181mm)
Weight: 11.5 lbs. (5.2kg)

ELECTRICAL
AC 100-240V - 50/60Hz
90W Max Power Consumption

INSTALLATION

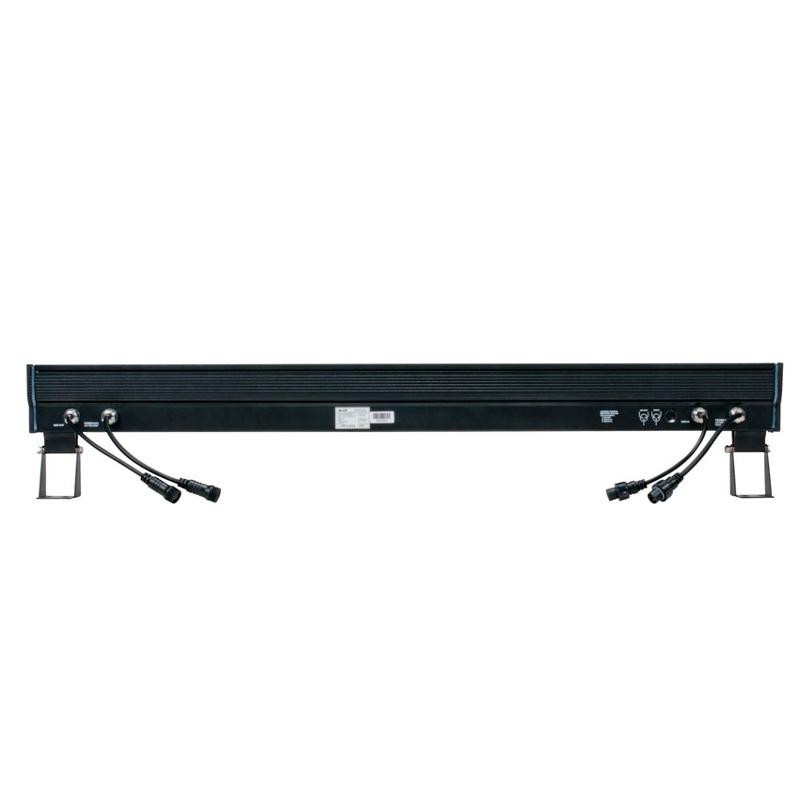

Rigging: Integrated Adjustable Mounting Brackets (x2)
Working Position: Any (360)

INCLUDED ITEMS
(1) 6.5 ft. (2m) 4pin Female to Edison Power Cable
(1) 5.5 ft. (1.7m) 3pin Male to 3pin Female DMX Cable
(1) 5.5 ft. (1.7m) 3pin Female to 3pin Male DMX Cable
(1) Bag of DMX End Caps
(2) Mounting Brackets

Additional Information

UPC837874016604
SKUELAREXTQWBARHP
ManufacturerElation Professional
Price$549.99
Product ConditionNew
