Included Collage Generator' allows for seamless projection arrays (2-16 fixtures) and variable edge blending. CMY and RGB color mixing, digital and optical zoom, motorized focus, mechanical shutter, dimmer, 540 pan, and 240 tilt control via DMX / Art-NET, (2) USB 3.0 ports, RJ45 inputs for graphics server and Art-NET, 5pin DMX and powerCON in/out, and a multi-voltage universal auto switching power supply (100-240v).
VIDEO
VIDEO

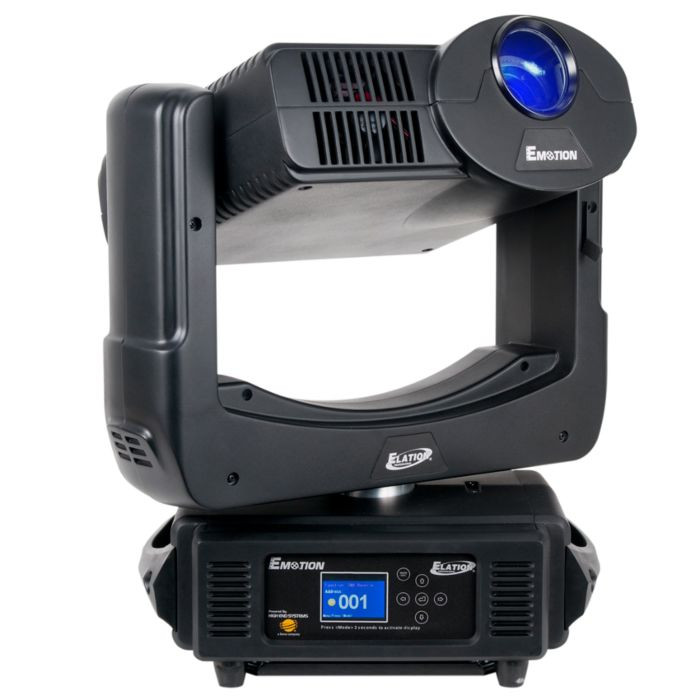

Features • Compact High Output Digital Projector Moving Head
• Internal 64GB Solid-State Hard Drive Media Server

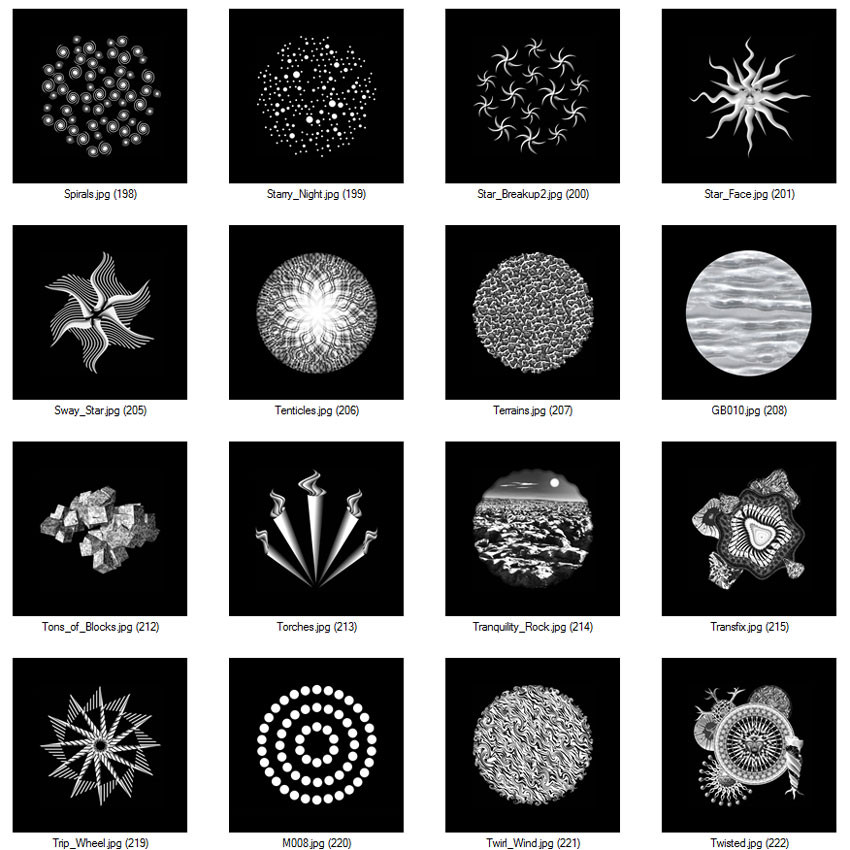

• Elation Gobo Catalog Included (Royalty Free)

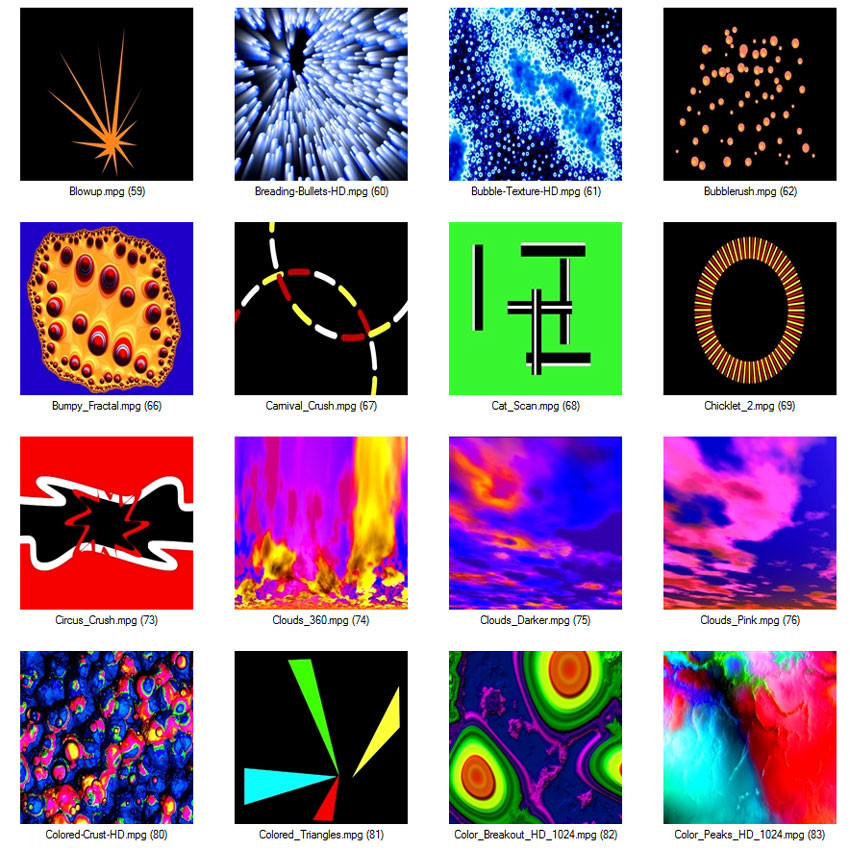

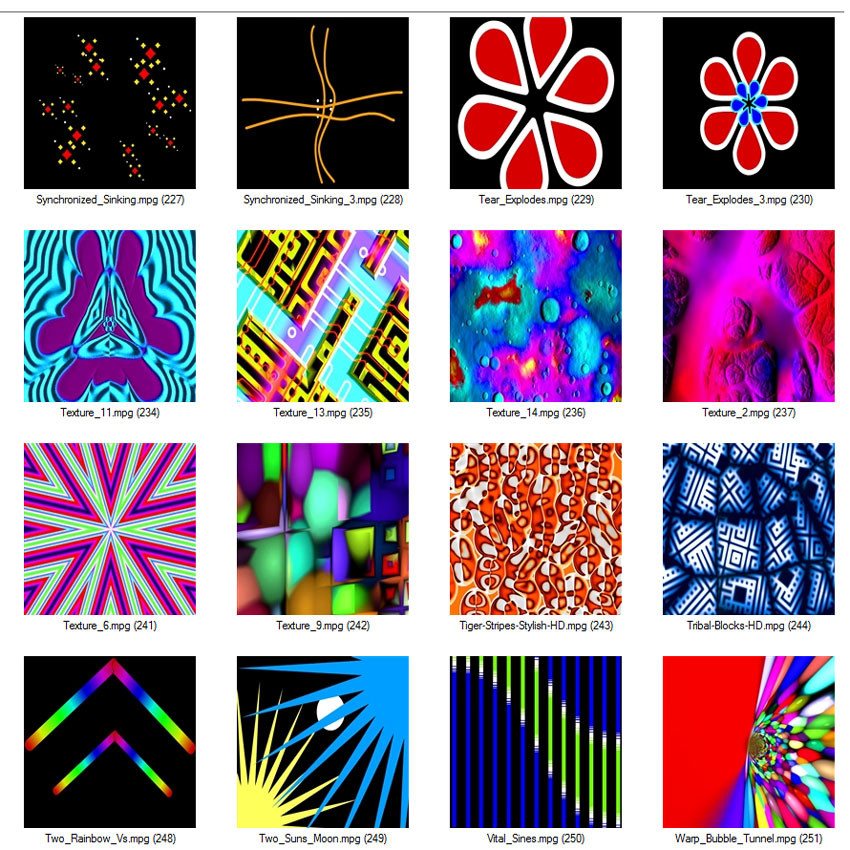

• 255 Video Images Included (Royalty Free)
• 40 Live / Background Effects and Color Control
• Easy Custom Content Upload via PC Based CMA Application
• DMX Control via 5pin DMX or Ar-NET
• Digital and Optical Zoom / Motorized Focus
• CMY + RGB Color Mixing / Mechanical Shutter / Dimmer
• Collage Generator'
• Variable Edge Blending
Specifications Osram UHP 240W Lamp
4,000 ANSI Lumens, >80CRI 6,700K
Native 1024 x 768 (XGA) DLP / DMD
3,000 Hour Average Lamp Life* (6,000 Hours ECO Mode)
*Lamp Life may vary depending on several factors including but not limited to
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Aspect Ratio: 4:3 Native (16:9 Compatible)
Resolution: XGA 1074 x 768
Image Size 30" to 307"
Projection Distance: 3.9' (1.2m) - 32.8' (10m)
Contrast Ratio: 15,000 : 1
Display Technology: DLP DMD Chip
1 Billion Colors (10bit)
EFFECTS
Digital and Optical Zoom
Motorized Focus
CMY / RGB Color Mixing
Mechanical Shutter / Dimmer
Elation Gobo Catalog (Royalty Free)
255 Video Images (Royalty Free)
40 Live / Background Effects and Color Control
28 Transition Effects Between Layers
COLLAGE GENERATOR' Software (included)
This effect enables multiple Elation eMotion' fixtures to create an array of seamless projections using from 2-16 fixtures. The effect can create vertical, horizontal and central panoramic configurations controlled from a DMX console. Stock, custom, and custom HD Collage Generator' content can all be displayed in Collage Mode.
VARIABLE EDGE BLENDING
On-the-Fly adjustment of blend overlap between multiple projectors when used in conjunction with any of the Collage Generator' Modes. Using this mode gives more flexibility for sizing a collage to a given screen or projection surface, as well as smoother blending if wider blend regions are used.
CONTROL / CONNECTIONS
(2) DMX Channel Modes (32 / 54)
Dual Layer Media Content Control
6 Button Touch Control Panel
Full Color 180 Reversible LCD Menu Display
(2) USB 3.0 Ports - Graphic Server Inputs
5pin DMX In/Out
(2) RJ45 Ports - Graphic Server / Art-NET Inputs
powerCON Power In/Out
SIZE / WEIGHT
Length: 18.9" (480mm)
Width: 15.0" (382mm)
Vertical Height: 22.4" (569mm)
Weight: 44.0 lbs. (20 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
350W Max Power Consumption
40 - 95F (5 - 35C)
APPROVALS / RATINGS
CE | cETLus | IP20
