The Netron EN12-45 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible RJ45 DMX ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
Key Features• RDM, Artnet and sACN support
• Factory and user presets for plug and play setups
• Line Voltage or POE powered
• 1.8" OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Customizable routing and merging options
• Remote configuration via internal webpage
• Contact closures for cue or preset recall
• Powder-coated aluminum rackmount housing

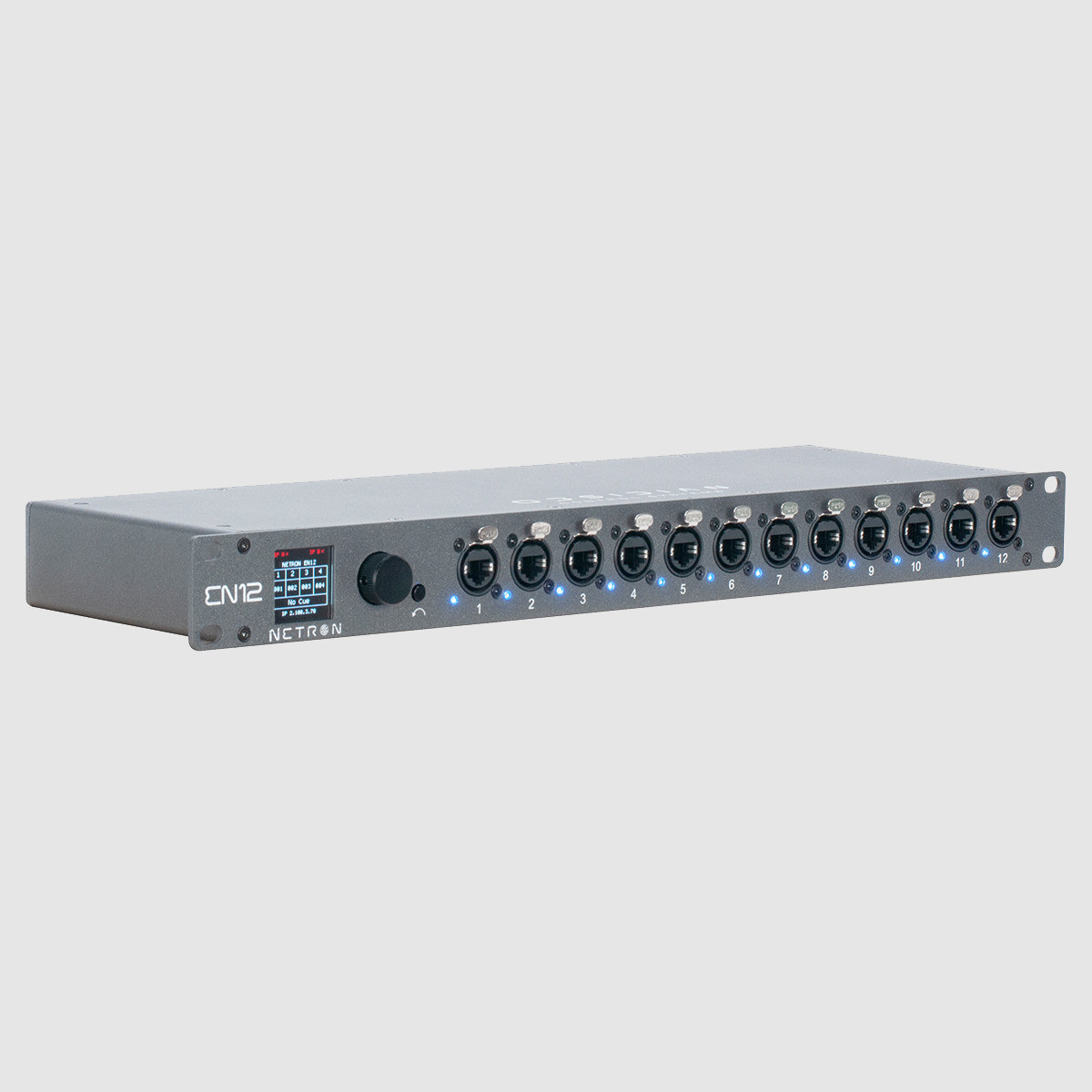

Front Connections(12) RJ45 DMX/RDM optically isolated ports (ESTA Compliant)
Ports are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button

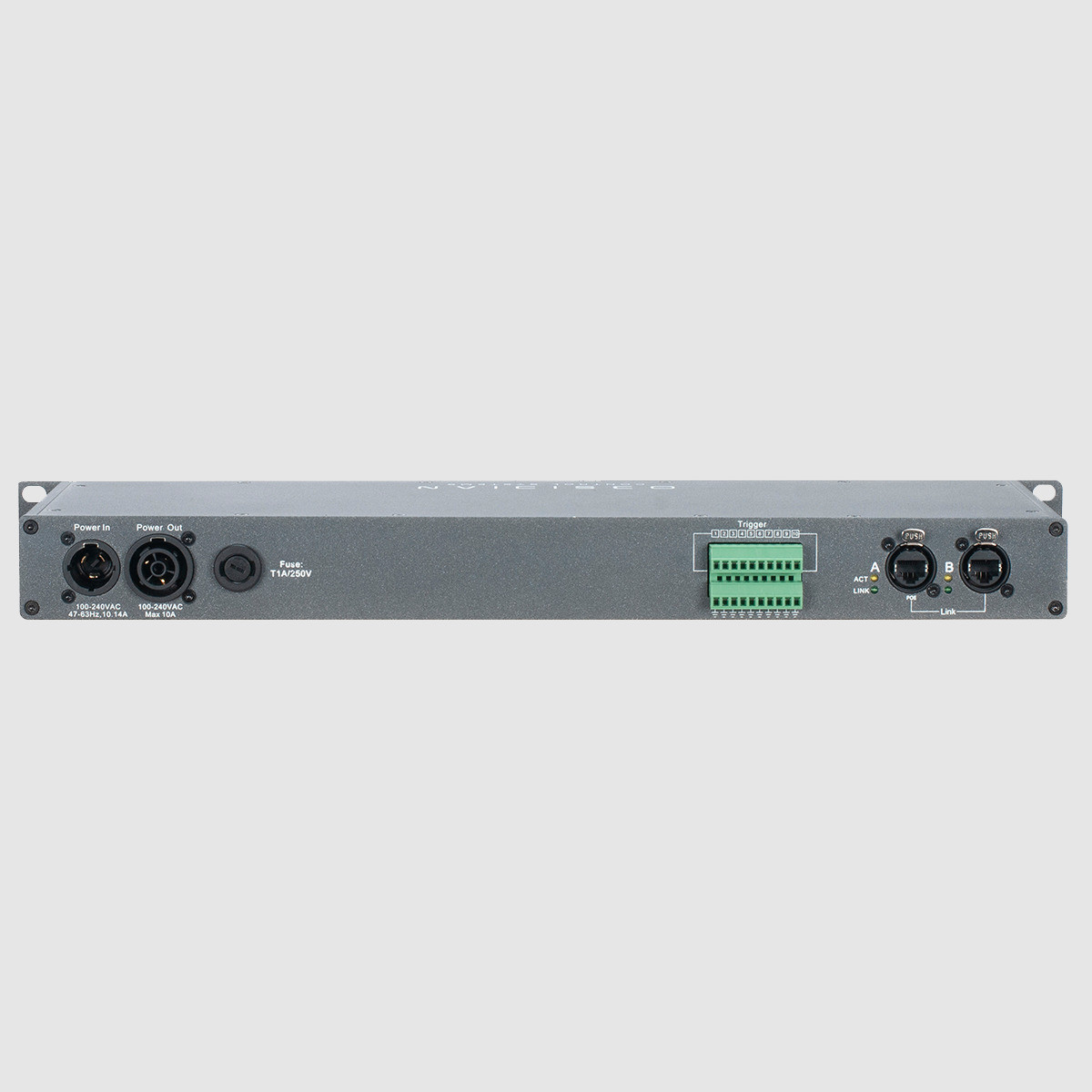

Rear Connections
(2) Locking RJ45 Ethernet network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru
PhysicalLength: 6.3in. (160.8mm)
Width: 19in. (482.5mm)
Height: 1.7in. (44mm)
Weight: 1.82 kg (4 lbs.)
Electrical100-240 V nominal, 50/60 Hz
POE 802.3af
APPROVALS / RATINGSCE | cETLus | FCC | IP20
