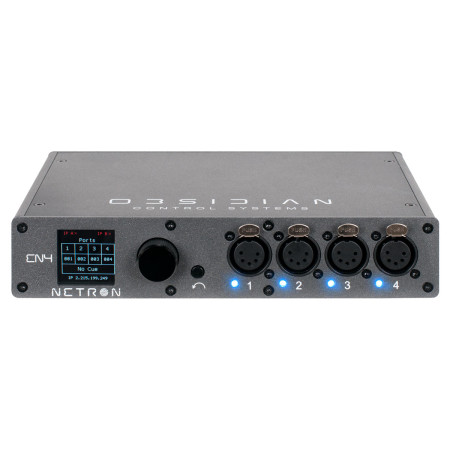

The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.
As a four Universe Node the EN4 is ideally suited for the powerful ONYX Free Edition.
Key Features• RDM, Artnet and sACN support
• Factory and user presets for plug and play setups
• Line Voltage or POE powered
• 1.8" OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Remote configuration via internal webpage
• Powder-coated aluminum rack housing
• Connect to ONYX PC for a full four Universe Solution

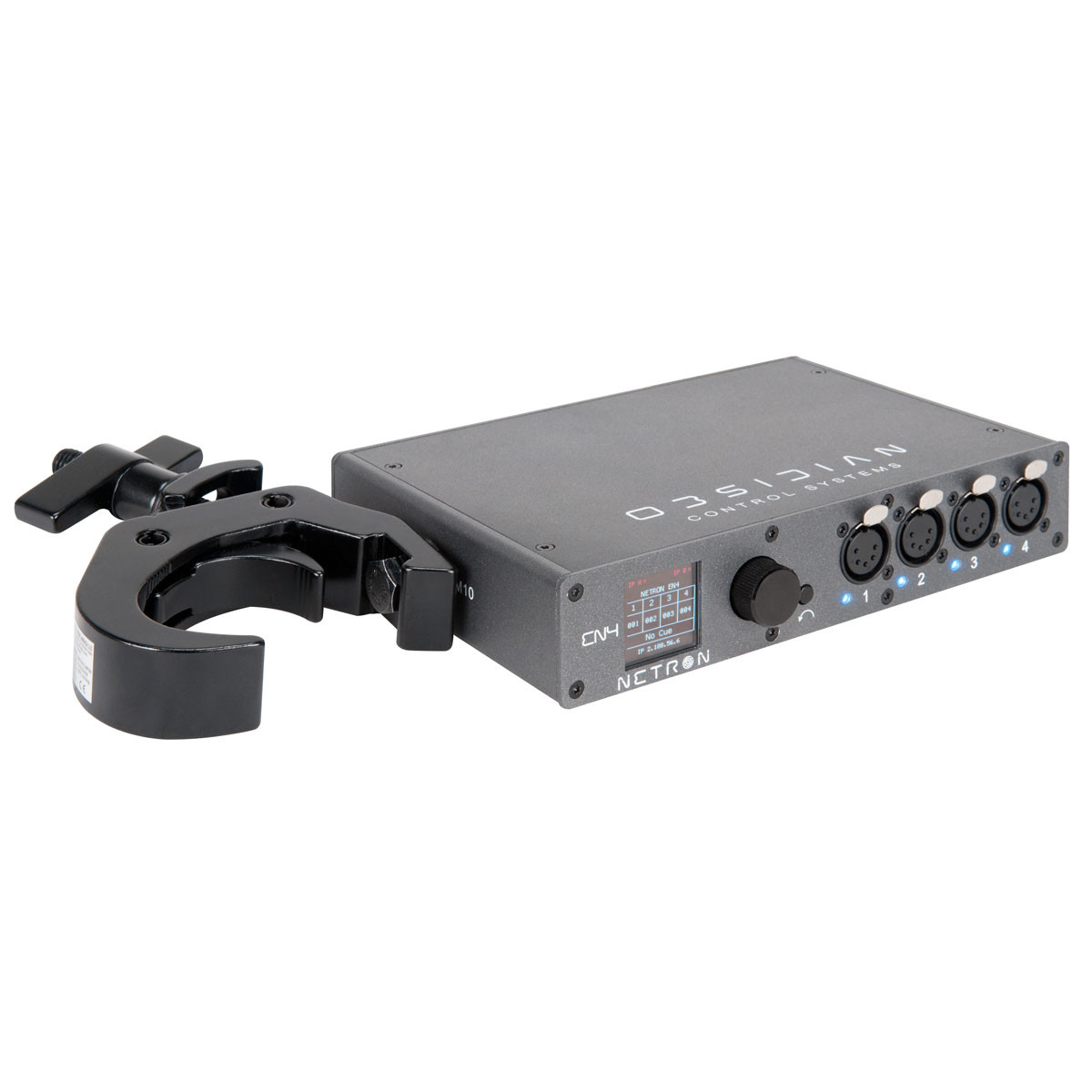

StandaloneTruss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)

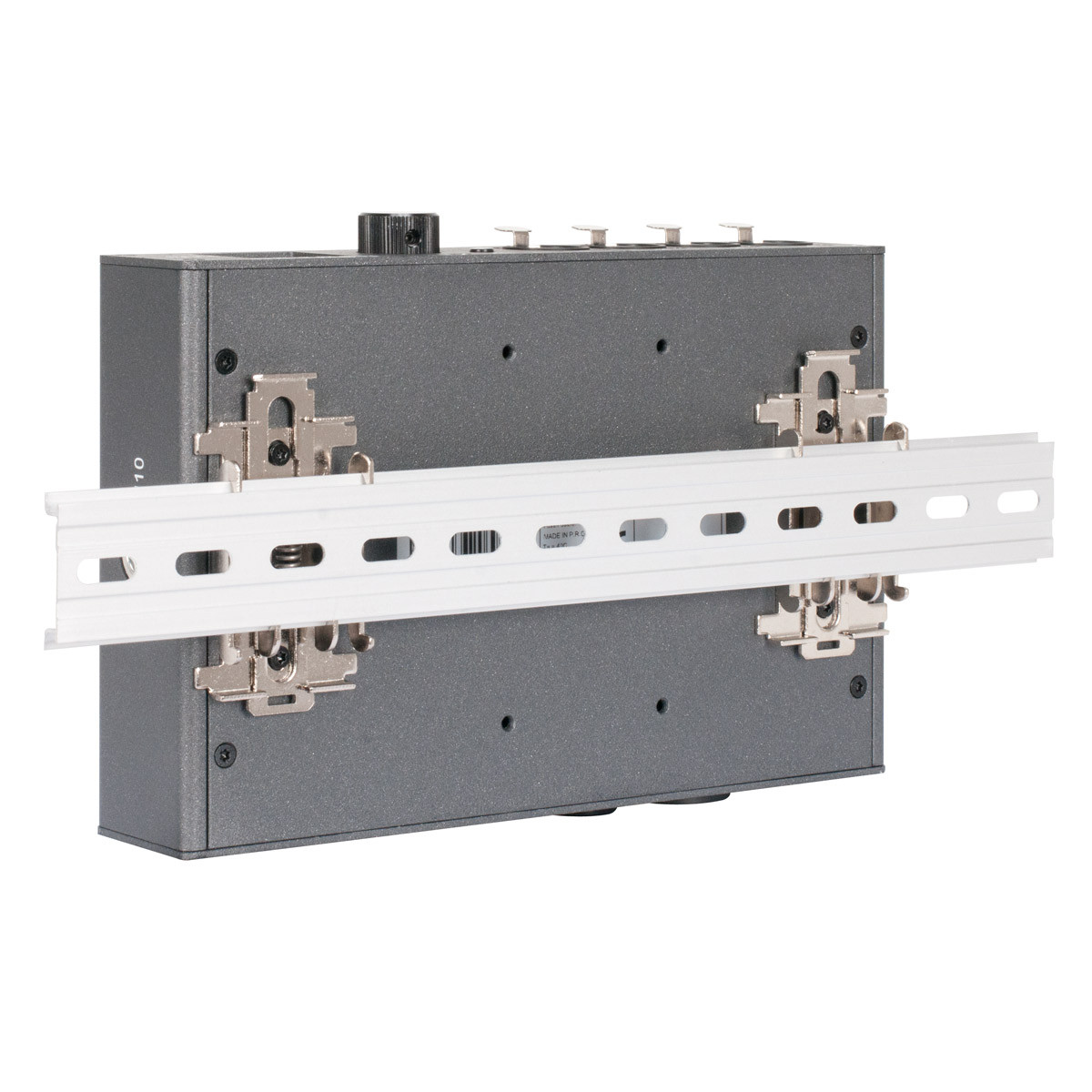

DIN Rail horizontal or vertical (included)

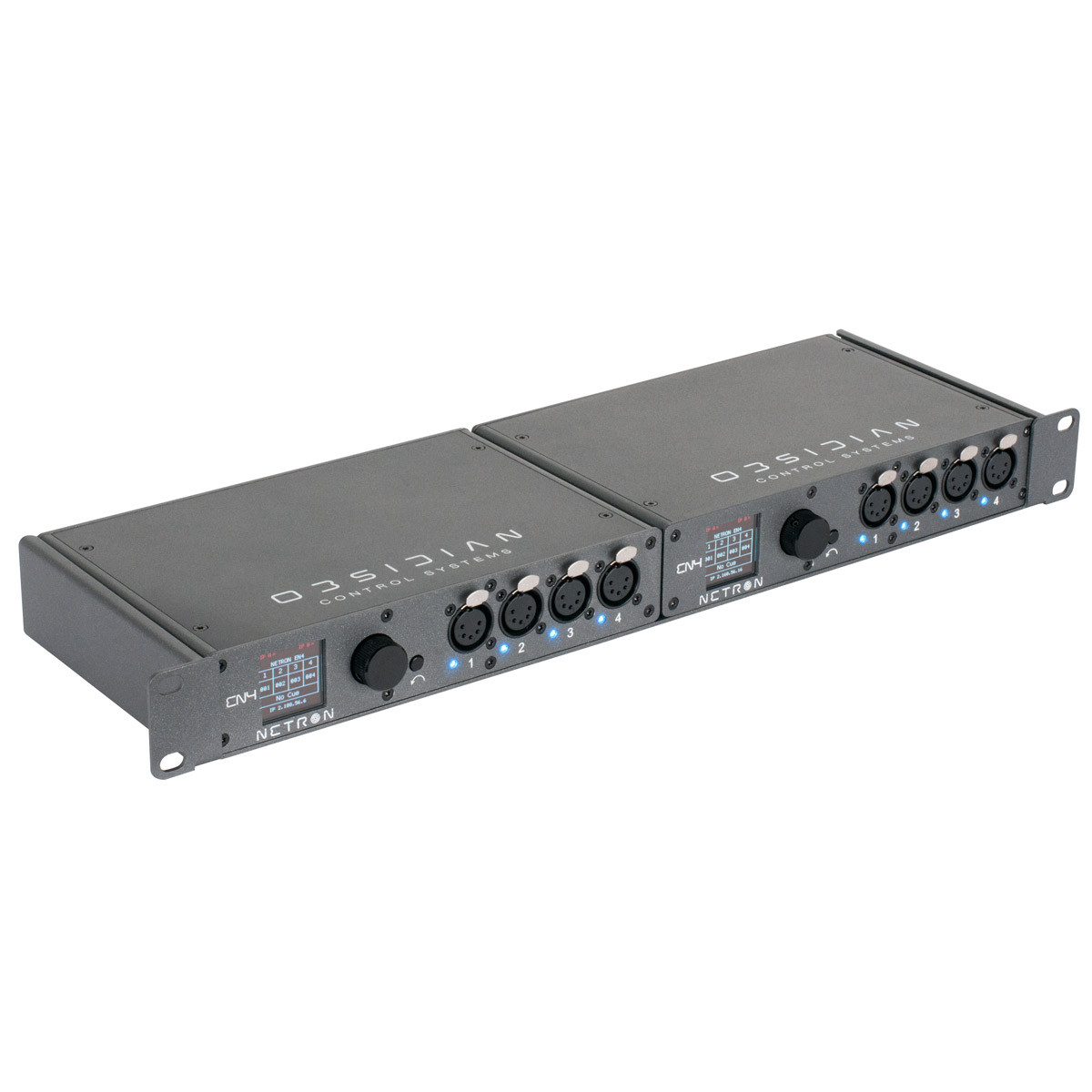

Rack-mount option (requires NET Shelf)

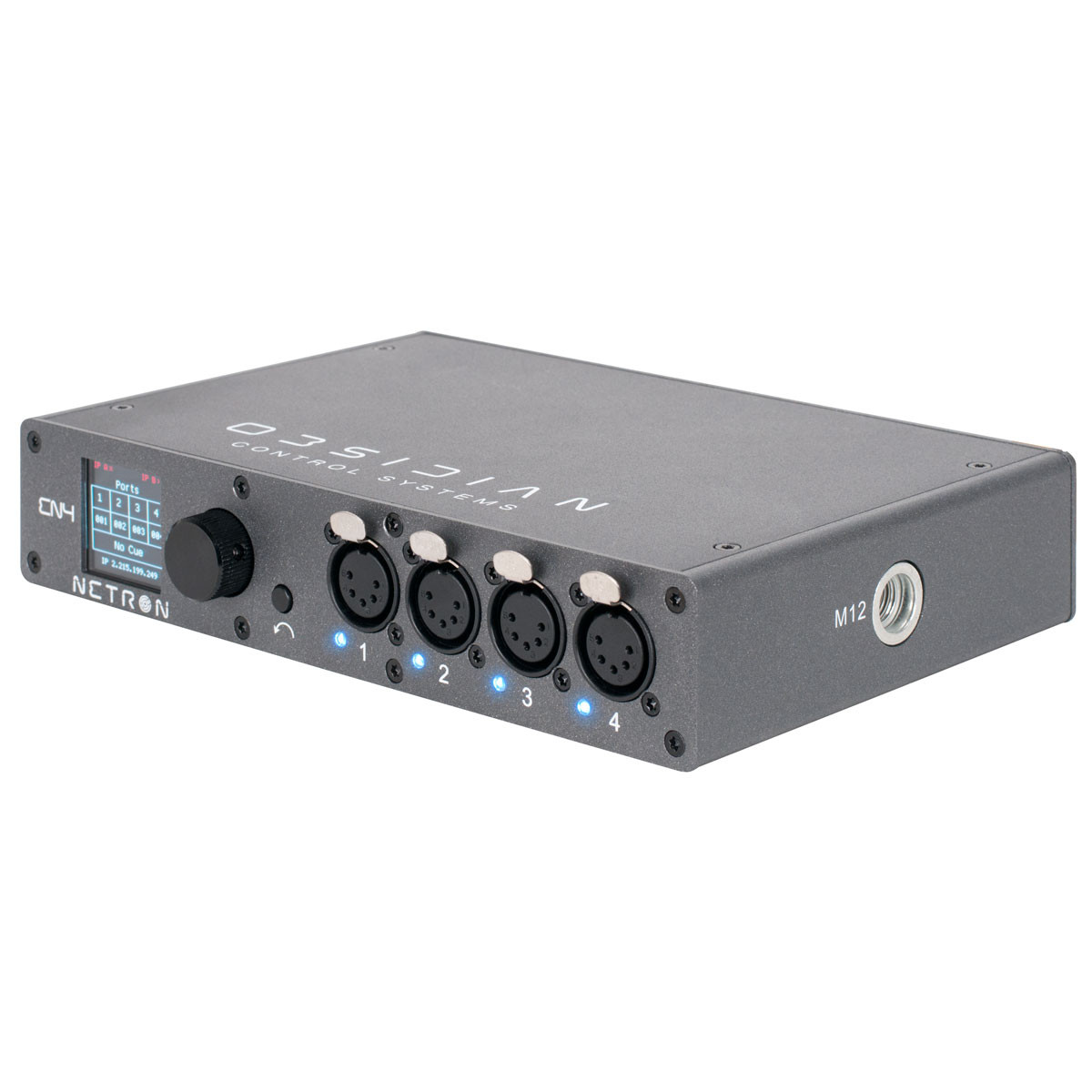

Front Connections(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button

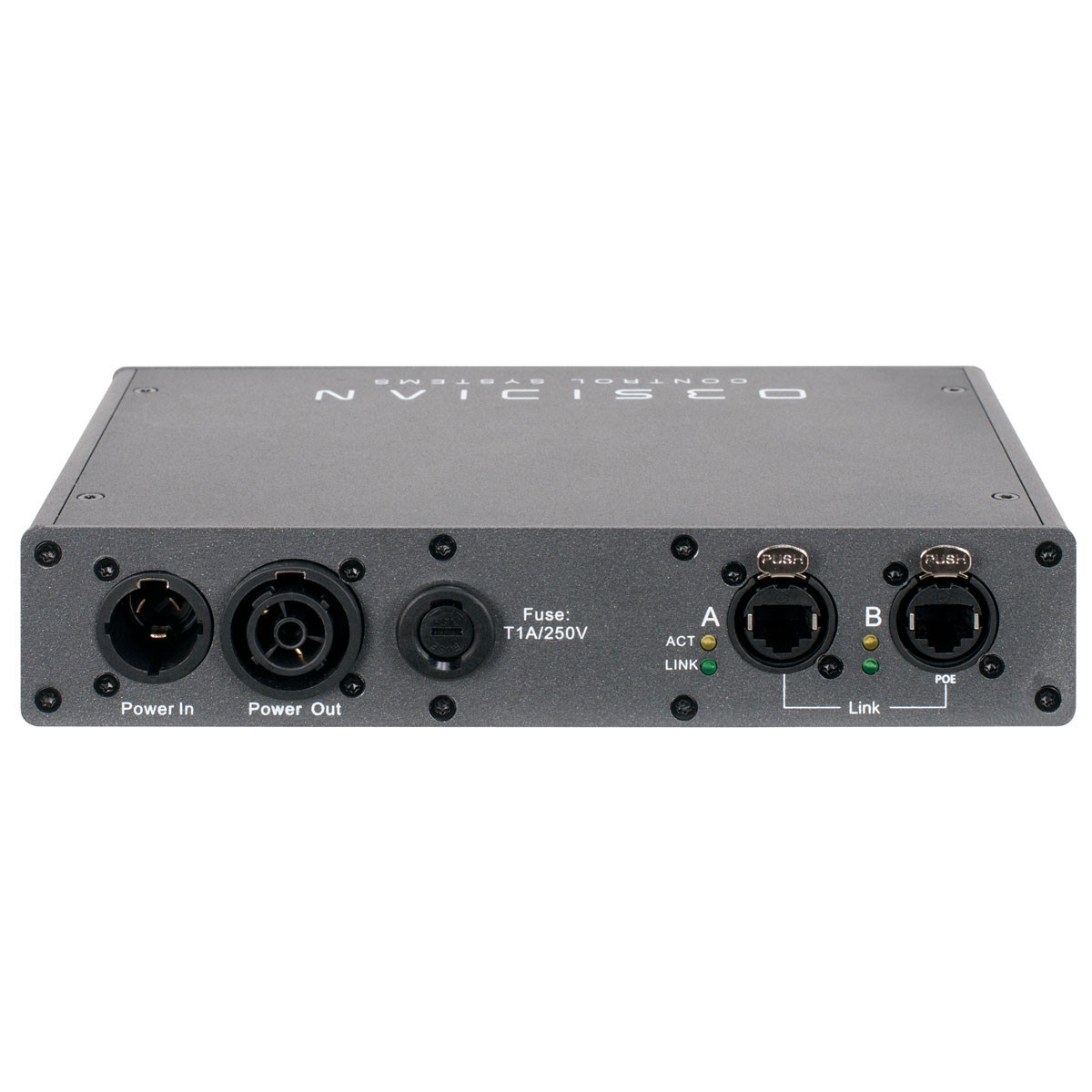

Rear Connections
Power In/Thru
(2) Locking RJ45 Ethernet network connections (1x POE)
PhysicalLength: 215 mm (8.5 in.)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)
Electrical100-240 V nominal, 50/60 Hz
POE 802.3af
APPROVALS / RATINGSCE | cETLus | FCC | IP20
