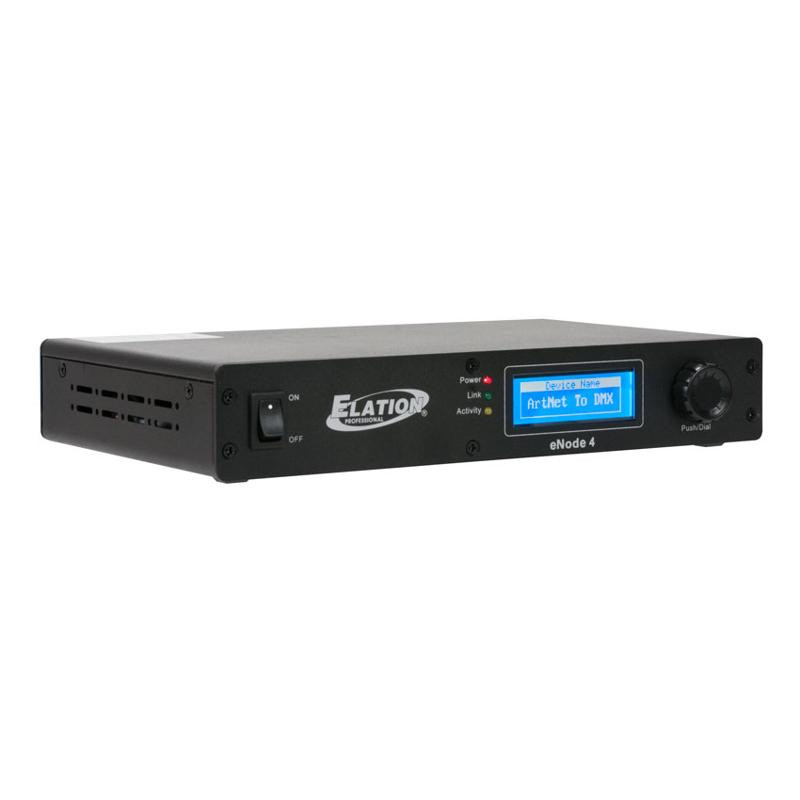

Elation eNode4 4-Universe Art Net to DMX Interface

Dropships Ships Directly From The Supplier
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
$499.99
As low as $25/mo.
VIP Price:
elation enode4
elation enode4 Elation eNode4 4-Universe Art Net to DMX Interface Elation eNode4 4-Universe Art Net to DMX Interface
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

4 Universe Art Net to DMX Interface with 4 Universal DMX Ports

FEATURES
(4) Universal DMX Ports (can be set as Input or Output)
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In
Auto MDI/MDIX, DMX-512, and ArtNet Support
ArtNet - DMX Bilateral Signal Conversion
DMX Splitter Function (1Input / 3 Outputs)
LCD Display & LED Indicators
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode

CONTROL / CONNECTIONS
(4) 5pin DMX Ports
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In

SIZE / WEIGHT
Length: 10.0" (255mm)
Width: 6.8" (173mm)
Vertical Height: 1.7" (43mm)
Weight: 3.5 lbs. (1.6kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
5W Max Power Consumption
35.6F (2C) to 113F (45C)

APPROVALS / RATINGS

INSTALLATION

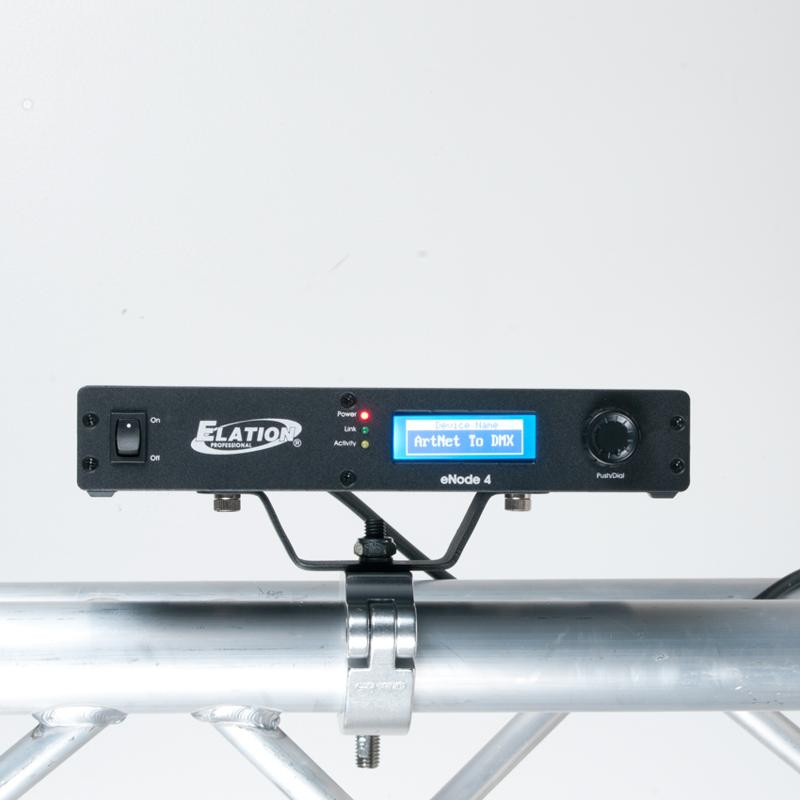

Any Flat Surface Or On A Truss With Included Bracket

INCLUDED ITEMS
(1) 5 ft (1.5m) powerCON Cable
(2) EtherCON Cable Connector Carrier

Additional Information

UPCN/A
SKUENODE4
ManufacturerElation Professional
Price$499.99
Product ConditionNew
