The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.
Key Features• RDM, Artnet and sACN support
• Factory and user presets for plug and play setups
• POE or USB-C powered
• 99 Internal cues with fade and delay time
• Remote configuration via internal webpage
• Powder-coated aluminum rack housing
• Connect to ONYX PC for a full four Universe Solution

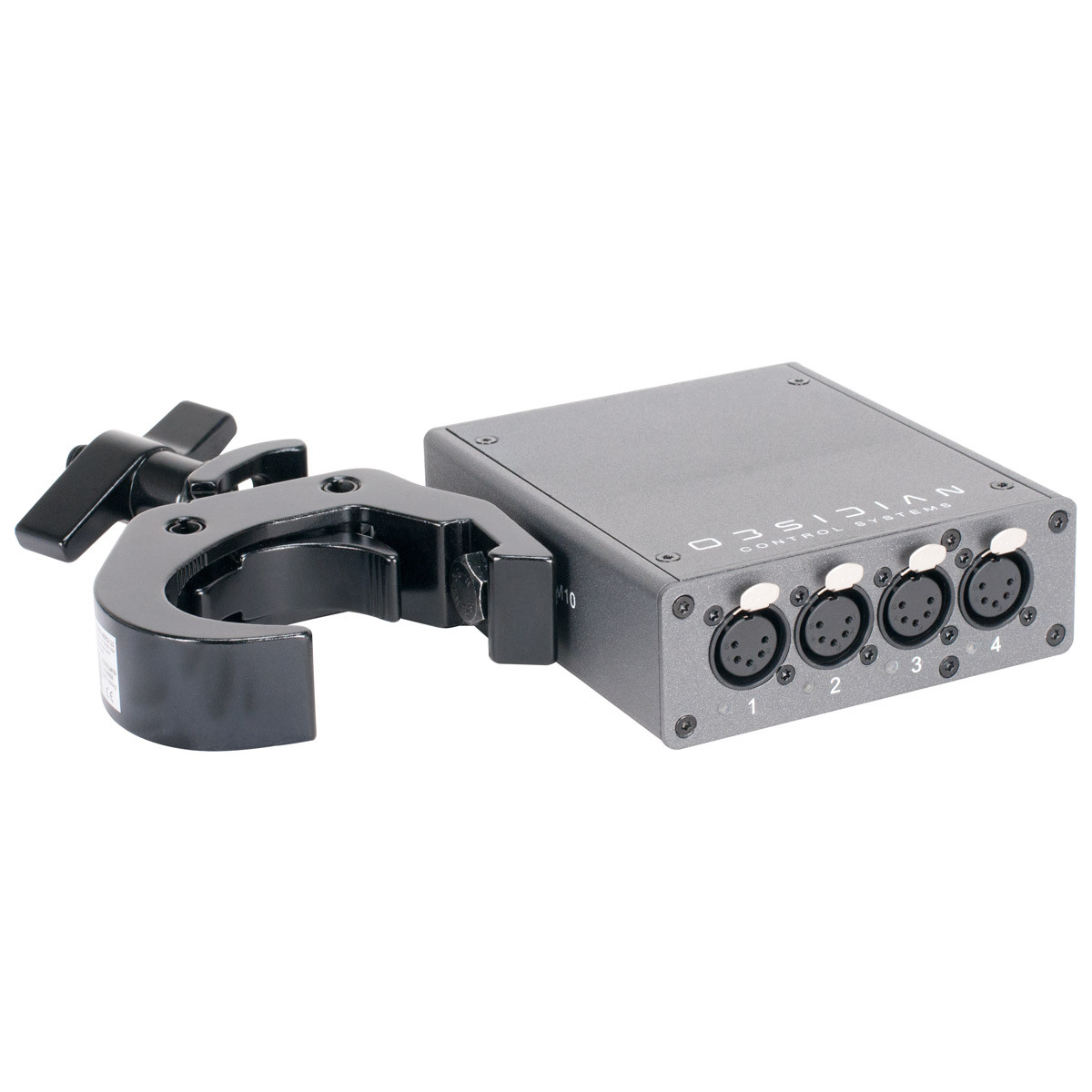

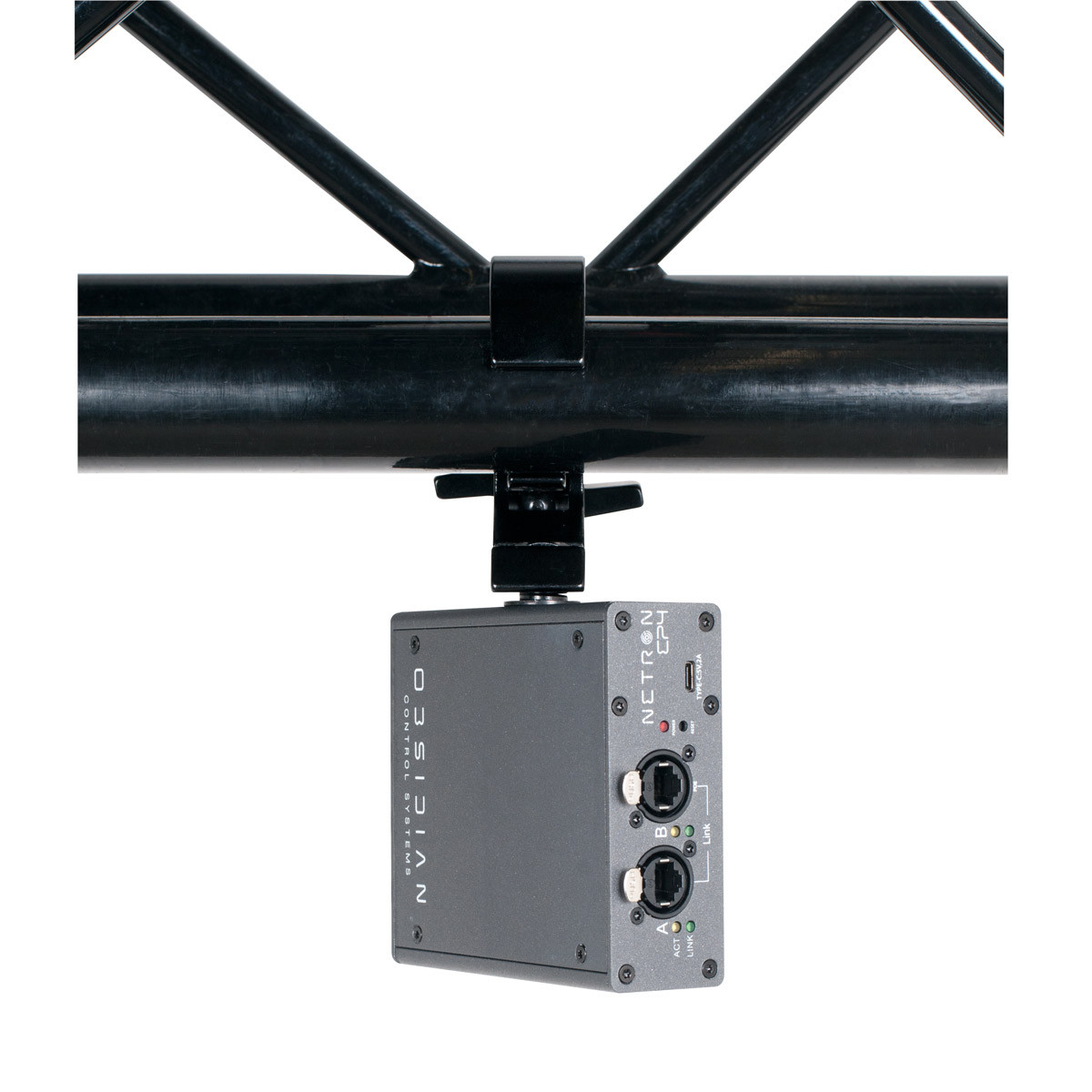

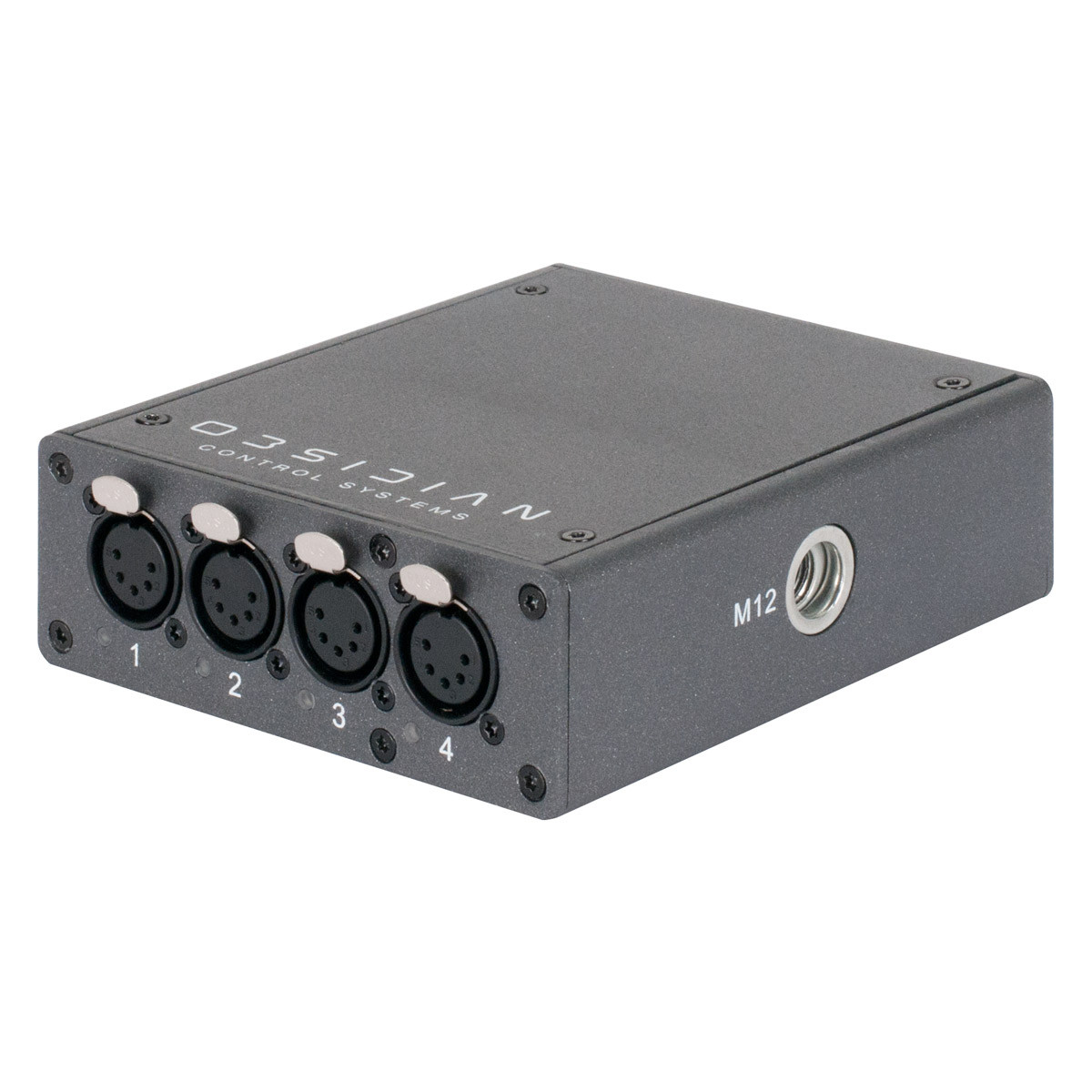

StandaloneTruss-mount (M10 or M12 mounting hole)

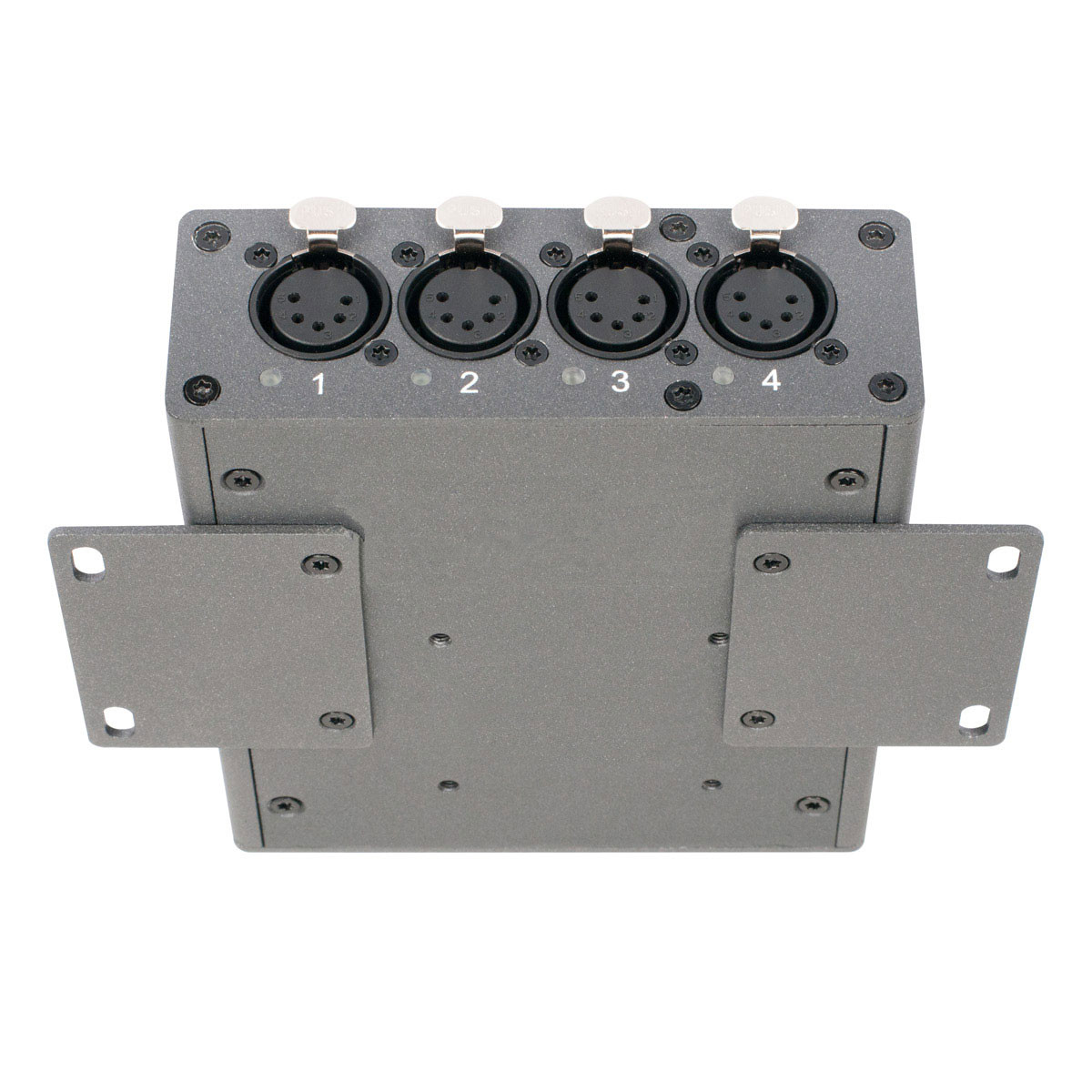

Wall-mount horizontal or vertical (included)

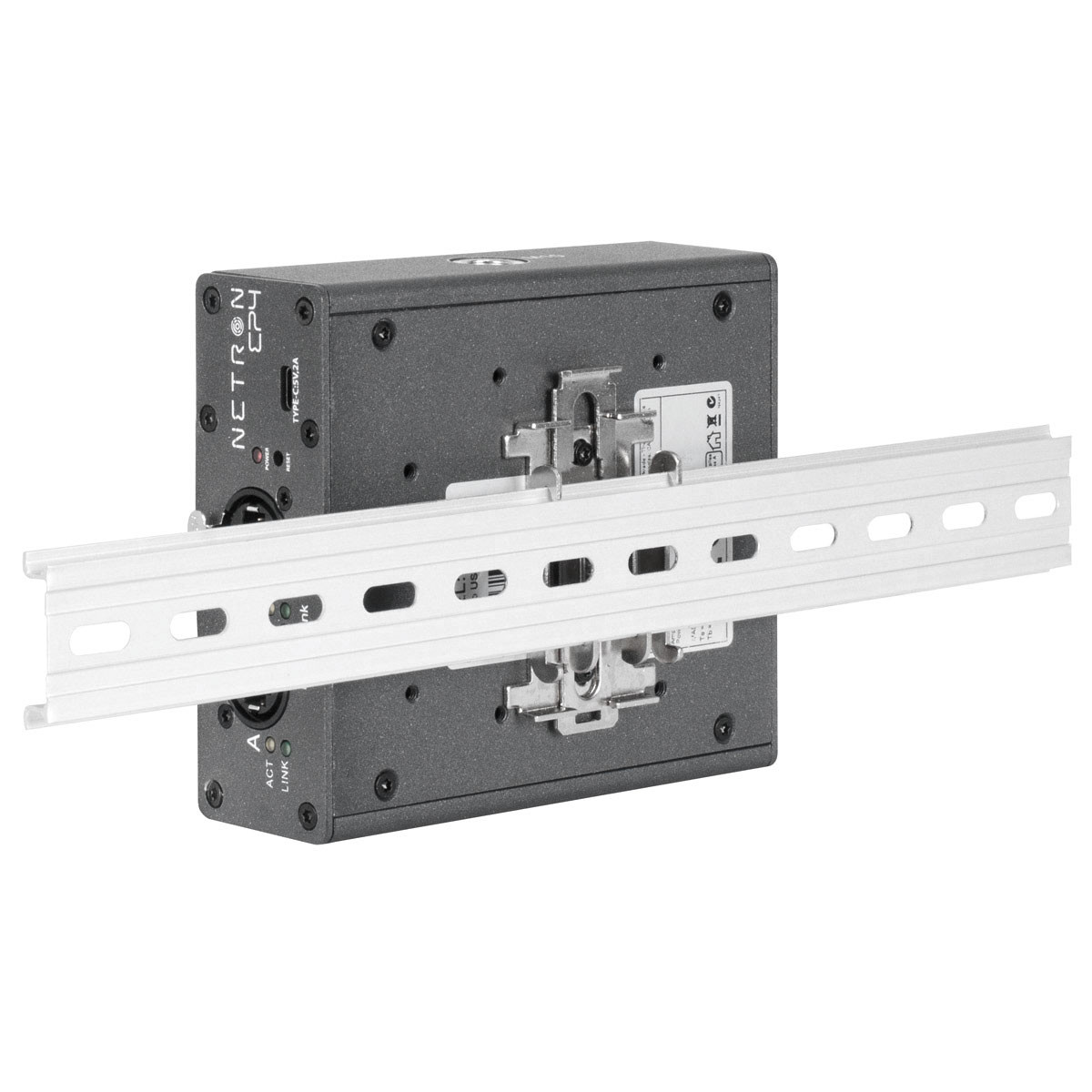

DIN Rail horizontal or vertical (included)

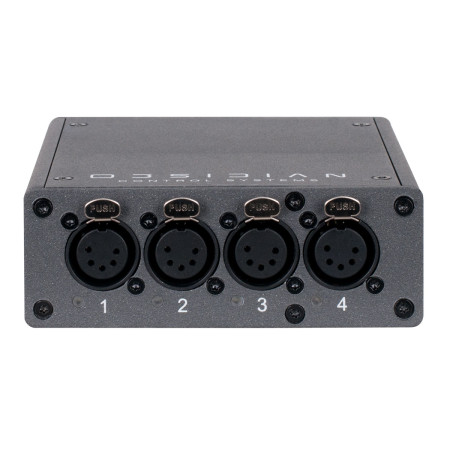

Front Connections(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Rear Connections
(2) Locking RJ45 Ethernet network connections (1x POE)
USB-C power option (5V, 2A)
PhysicalLength: 133.5 mm (5.3 in.)
Width: 118 mm (4.6 in.)
Height: 42 mm (1.65 in.)
Weight: 0.5 kg (1.1 lbs)
ElectricalUSB-C 5V
POE 802.3af
APPROVALS / RATINGSCE | cETLus | FCC | IP20
