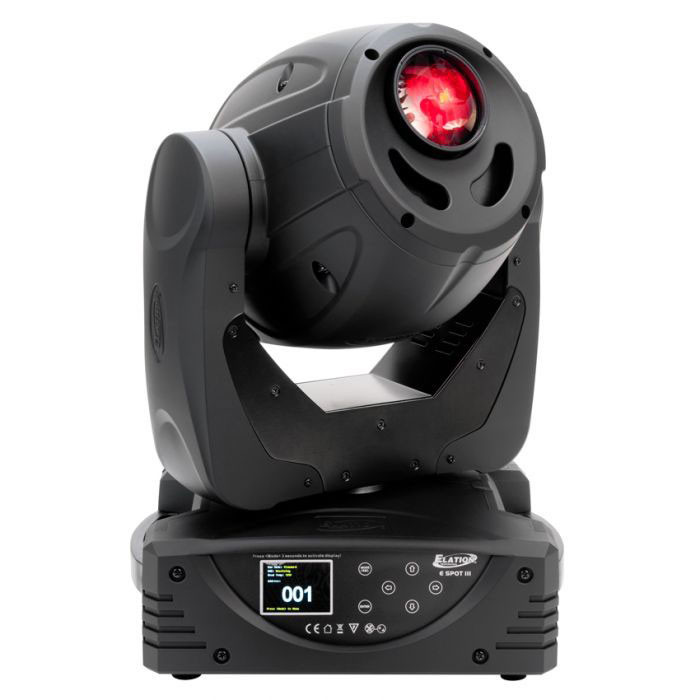

The E Spot III features a new 90W Cool White Solid State LED engine, a 19 beam, 8 dichroic colors, 7 rotating-interchangeable glass gobos, 3-facet and linear rotating prisms, frost filter, motorized iris and focus, variable dimming curves, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, RDM (Remote Device Management), 180 full color reversible LCD menu display with 6 button touch control panel, battery backup for display power, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
VIDEO
E Spot III Features • 90W Cool White Solid State LED Spot Luminaire
• 19 Beam, 8 Dichroic Colors
• 7 Rotating-Interchangeable Glass Gobos
• 3-Facet and Linear Rotating Prisms and Frost Filter
• High Speed Mechanical Shutter and Strobe
• Motorized Iris and Focus and Variable Dimming Curves
• Low Heat, Quiet Operation, Hibernation Mode
• Flicker Free Operation For Broadcast TV and FILM
E SPOT III Specifications SOURCE • 90W Solid State Cool White LED Engine
• 20,000 Hour Average LED Life*
• *LED Life may vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

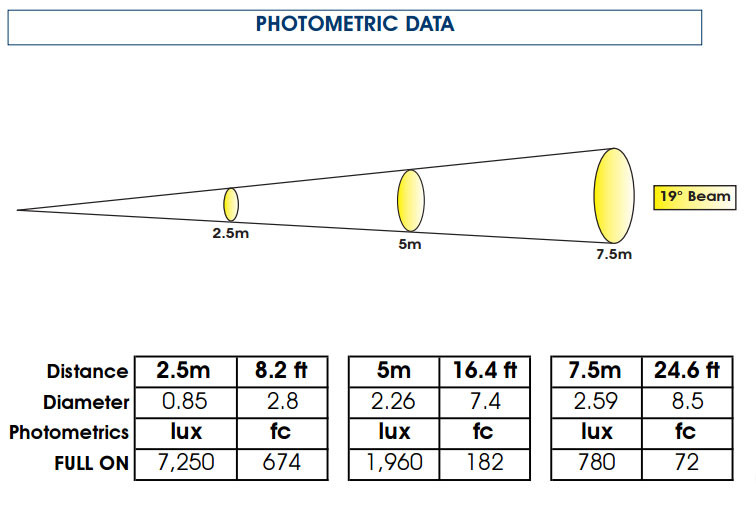

PHOTOMETRIC DATA • 7,250 LUX 674 FC @8.2' (2.5m) (19 Full ON)
EFFECTS • 3-Facet and Linear Rotating Prisms and Prism Macros
• Frost Filter Hybrid Wash Effect
• Motorized Iris and Focus
• High Speed Mechanical Shutter and Strobe
• Variable Dimming Curves

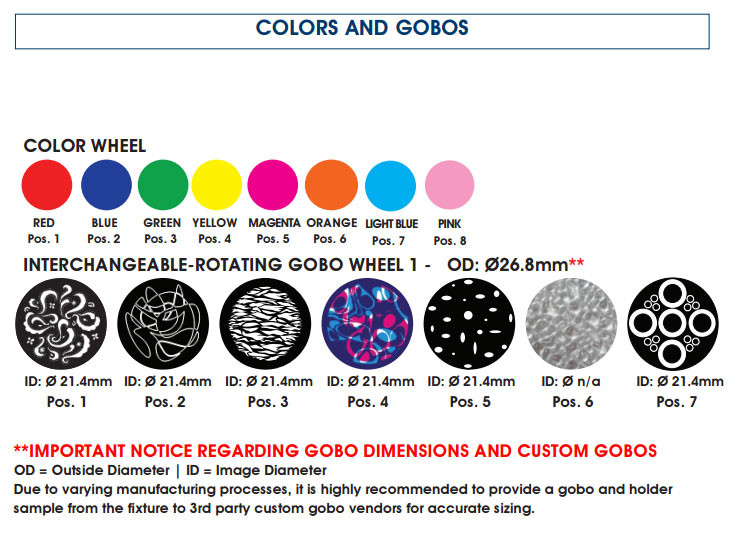

COLOR • 8 Dichroic Colors
GOBOS 7 Interchangeable-Rotating / Indexing Glass Gobos
CONTROL / CONNECTIONS • (3) DMX Channel Modes (14 / 16 / 20)
• RDM (Remote Device Management)
• 6 Button Touch Control Panel
• 180 Reversible Full Color LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement

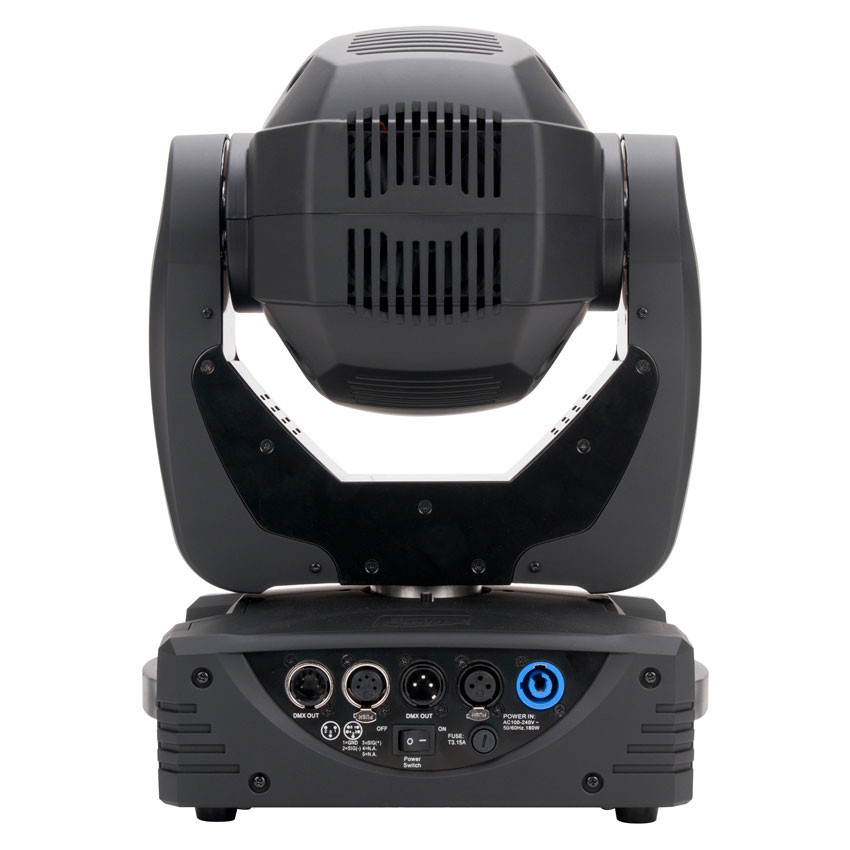

• 3pin & 5pin DMX In/Out
• powerCON In

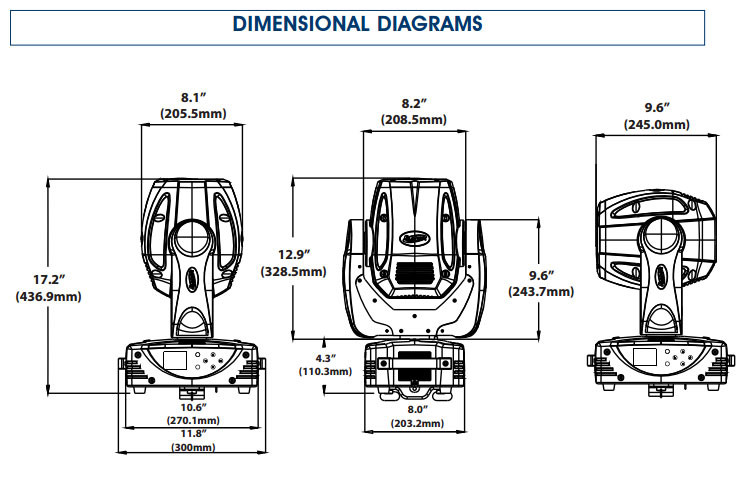

SIZE / WEIGHT • Length: 11.9" (301mm)
• Width: 9.6" (243mm)
• Vertical Height: 17.1" (435mm)
• Weight: 23.0 lbs. (10.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
180W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20
