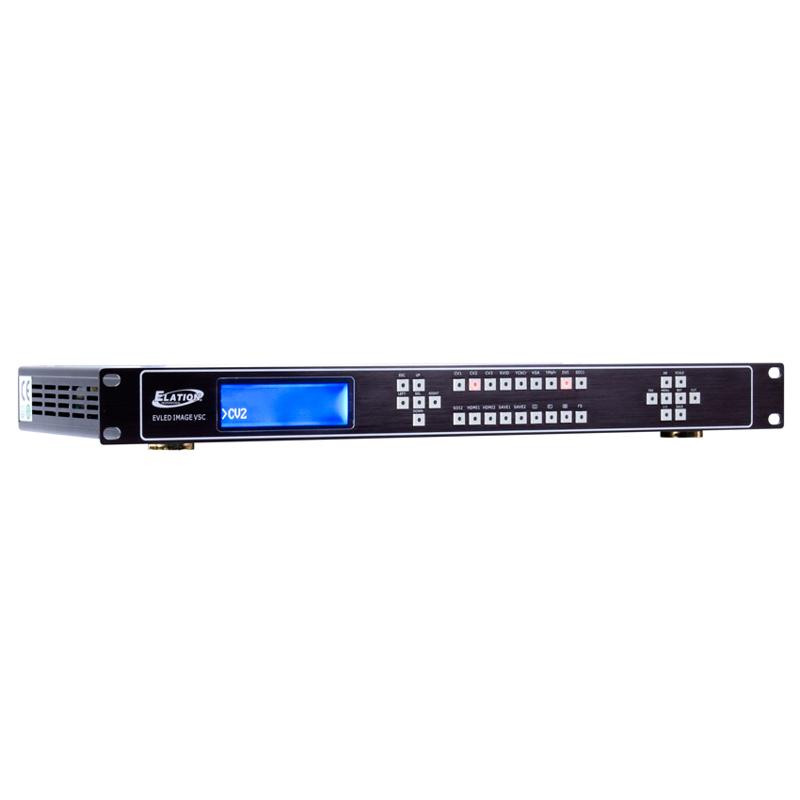

FEATURES
. Input: (3) Composite, (1) SVideo, (1) VGA, (1) DVI,
(2) HDMI, (2) SDI (HD & SD compatible
. Output: DVI and VGA
. Suports PIP, POP, PBP as well as user-defined
pixel-based scale and dual-channel operation
. Supports out resolution up to 2048 x 1152 x 60Hz
. Supports keyboard operation
. Supports serial and TCP/IP remote control
Function
. Source Switch tow signal groups with alpha key operation
. PIP for SD with HD and HD with HD
. POP for SD with HD, HD with HD, video with PC
. Test pattern generator, schedule, hardware timing, text overlay
and logo insert.
. Alpha Key support
Composite BNC Input
. Number of Inputs 3
. Supported Standards PAL/NTSC
. Signal Level 1Vpp3db (0.7V Video+0.3v Sync ) 75ohm
.Multiplex YCbCr
S-video DIN4 Input
. Number of Inputs 1
. Supported Standards PAL/NTSC
. Signal Level Y:1Vpp3dB (0.7V Video+0.3v Sync ) 75ohm
. U/V:0.7Vpp3dB 75ohm
YPbPr BNC Input
. Number of Inpus BNC*3
. Supported Standards analog HD input
. Signal Level Y:1Vpp3dB (0.7V Video+0.3v Sync ) 75ohm
. Pb/Pr:0.7Vpp3dB 75ohm
VGA DB15 Input
. Number of Inputs 1
. Connector Standard DB15 socket
. Supported Standards VGA-UXGA
. Signal Level RGB Hsync Vsync:0 to1Vpp3dB (0.7V Video+0.3v Sync ) 75 ohm
. Black level:300mV Sync-tip:0V
DVI Input
. Number of Inputs 1
. Connector Standard DVI-I socket
. Supported Standards SMPTE:625/25 PAL, 525/29.97 NTSC, 625/50p PAL,
525/59.94p NTSC, 1080i50, 1080i59.94/60, 720p50 720p59.94/60
VESA:80060060Hz,102476860Hz,128076860Hz,12801024
60Hz,1600120060Hz,1920108060Hz,1920108050Hz
. Signal Level TMDS pwl,single pixel input,165MHz bandwidth
. Standard DVI 1.1
SDI Input
. Number of Inputs 2
. Connector BNC
. Data Rate Range 19.4Mbps1.5Gbps
. Supported Standards ITU-R BT.656,ITU-R BT.601,SMPTE 259M, SMPTE 292,
SMPTE 297
. Equalization Belden 1694A 100M HD1.485G,350m SD 270Mbps
SDI Loop-out
. Number of Loop-Throughs 1
. Signal Level 800mV10%
. DC Offset 0V0.5V
. Rise/Fall Time HD1.485Gbps<270 ps;SD 270 Mbps 0.4 ns1.5ns
. Overshoot <10%
. Timing Jitter SD<0.2UI;HD<1.0UI
. Alignment Jitter <0.2UI
HDMI Input
. Number of Inputs 2
. Connector HDMI (standard type A interface)
. Supported Standards SMPTE:625/25 PAL, 525/29.97 NTSC, 625/50p PAL,
525/59.94p NTSC, 1080i50, 1080i59.94/60, 720p50 720p59.94/60
VESA:80060060Hz,102476860Hz,128076860Hz,12801024
60Hz,1600120060Hz,1920108060Hz,1920108050Hz
. Signal Level TMDS pwl,single pixel input,165MHz bandwidth
. Standard HDMI 1.3
DVI Output
. Number of Inputs 1
. Connector Standard DVI-I interface
. Supported Resolution 80060060Hz,102476860Hz,102476875Hz
,128076860Hz,1280102460Hz,144090060Hz,1400120060Hz,
1600120060Hz,1920108060Hz,1920120060Hz,2048115260Hz
. Signal Level TMDS pwl,165MHz bandwidth
VGA Output
. Number of Inputs 1
. Connector Standard DB15 socket
. Supported Resolution 80060060Hz,102476860Hz,102476875
Hz ,128076860Hz,1280102460Hz,144090060Hz,14001200
60Hz,1600120060Hz,1920108060Hz,1920120060Hz,2048
115260Hz,2048153660Hz
. Signal Level RGB Hsync & Vsync:0 to1Vpp3dB (0.7V Video+0.3v Sync ) 75ohm
. Black level:300mV Sync-tip:0V
HDMI Output
. Number of Outputs 1
. Connector HDMI (standard type A interface)
. Supported Standards 80060060Hz,102476860Hz,102476875Hz
,128076860Hz,1280102460Hz,144090060Hz,1400120060Hz,
1600120060Hz,1920108060Hz,1920120060Hz,2048115260Hz
. Signal Level TMDS pwl,165MHz bandwidth
Extras
. Communication RS232 TCP/IP
. Power Supply 85-264V 2A IEC-3
. Working Environment 0C45C
. Stored Environment 10% to 90%
. Product Warranty 1year
