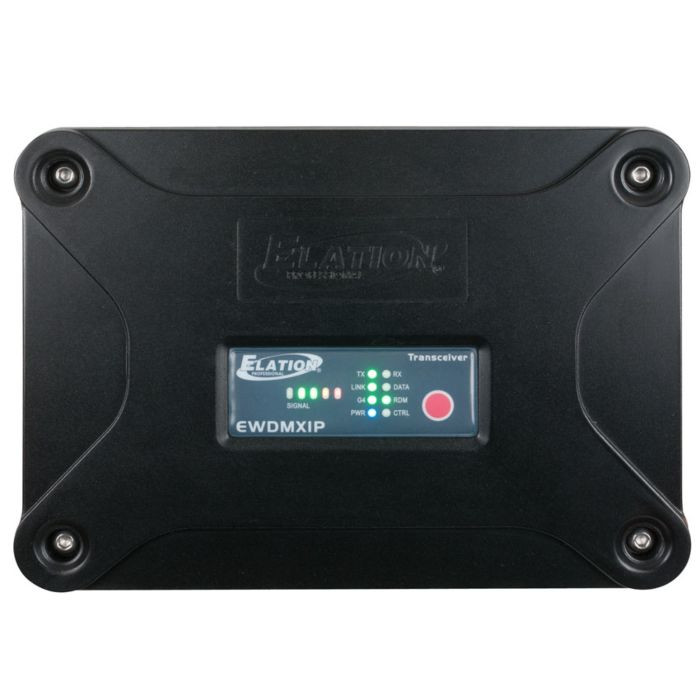

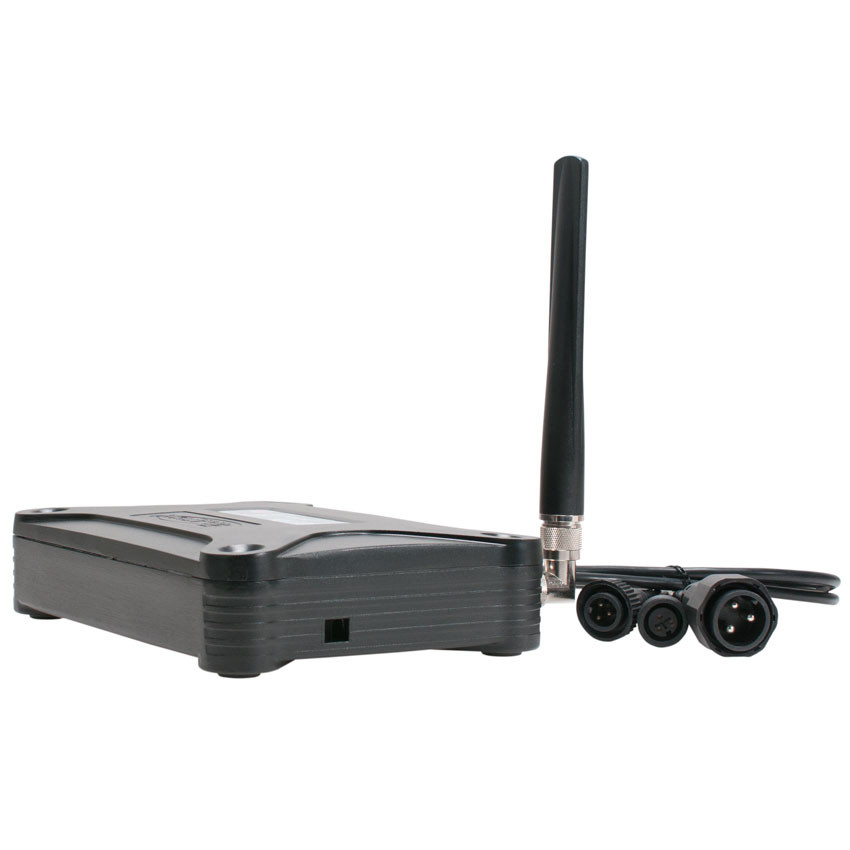

The EWDMX IP' is an IP65 rated wireless DMX transceiver solution featuring a 2dbi outdoor antenna, up to 1,640 ft (500m) wireless DMX range*, FHSS (Frequency Hoping Spread Spectrum) of 1,800 tps, datasafe technology providing wireless fidelity and error correction, invisi-wire high-fidelity technology providing input matching output, easy-to-use single push button function/mode control, RDM (Remote Device Management) support, 2.4GHz radio license free worldwide, TDMA (Time Division Multiple Access), W-DMX G4 protocol support, single DMX-512 universe, a rugged hard plastic case, and a multi-voltage universal auto switching power supply (100-240v).
Features:• IP65 Wireless DMX Transceiver with 2dbi Outdoor Antenna
• Up To 1,640 ft. (500m) Wireless DMX Range*
• FHSS (Frequency Hoping Spread Spectrum) 1,800 tps
• Datasafe Tech - Wireless Fidelity and Error Correction
• Invisi-Wire High-Fidelity Tech - Output Matches Input
• Easy-To-Use Single Push Button Function Control
• RDM (Remote Device Management) Support
• 2.4GHz Radio License Free Worldwide
• TDMA (Time Division Multiple Access)
• W-DMX G4 Protocol Support
• Rugged Hard Plastic Case
• Single DMX-512 Universe

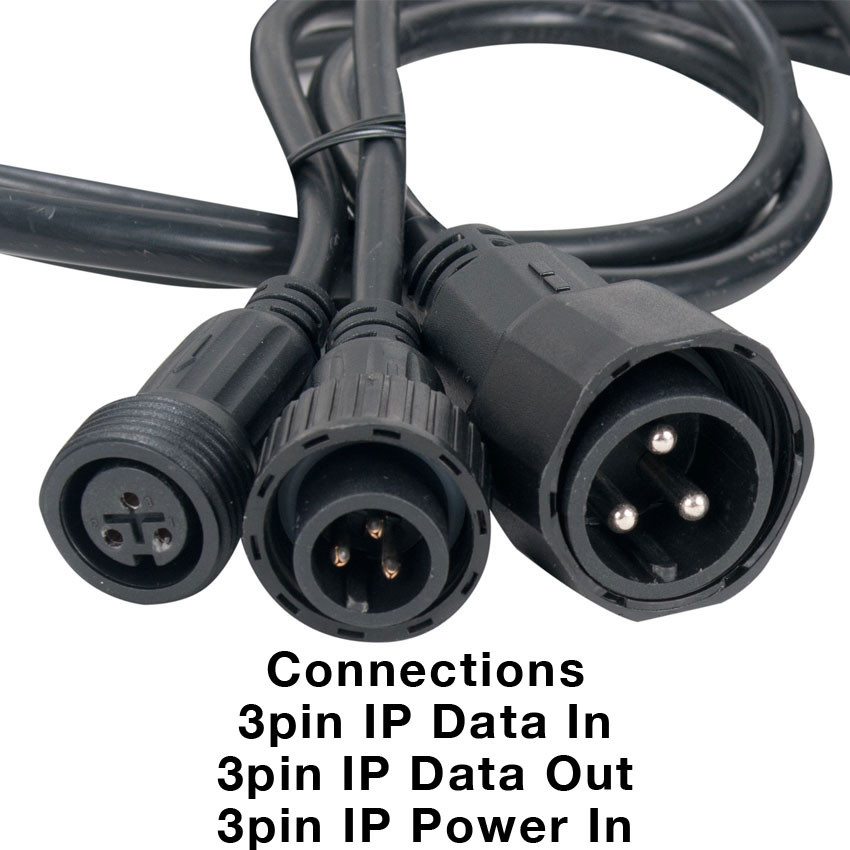

CONTROL / CONNECTIONSMulti-Function Single Push Button

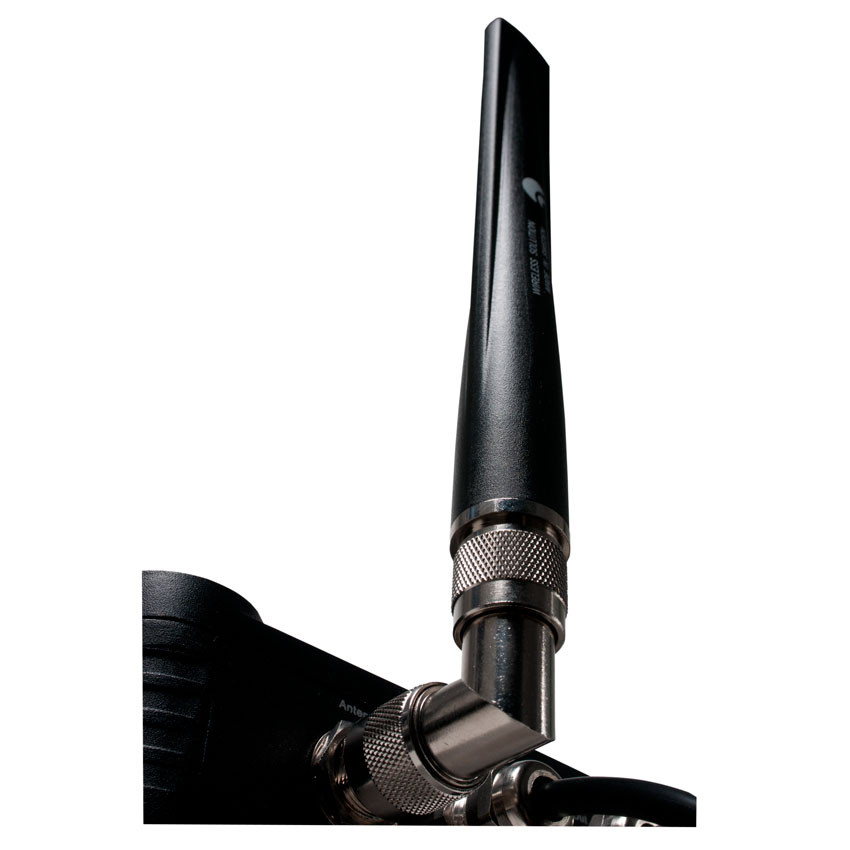

Antenna Port
3pin IP Data Input
3pin IP Date Output
3pin IP Power Input
WIRELESS RANGEUp To 1,640 ft (500m)*
*Based on general testing of the EWDMX IP' in an outdoor urban area with normal interference, installed in a location 9.8 ft. (3m) ABOVE AUDIENCES and/or GROUND LEVEL, with a DIRECT LINE OF SIGHT (Tx Antenna to Rx Antenna), and 80%+ signal strength.
SIZE / WEIGHTLength: 9.4" (240mm)
Width: 6.7" (170mm)
Vertical Height: 2.2" (56.5mm)
Weight: 4.6 lbs. (2.1kg)
ELECTRICAL / THERMALAC 100-240V - 50/60Hz
3W Max Power Consumption
14F (-10C) to 113F (45C)
APPROVALS / RATINGSCE | IP65

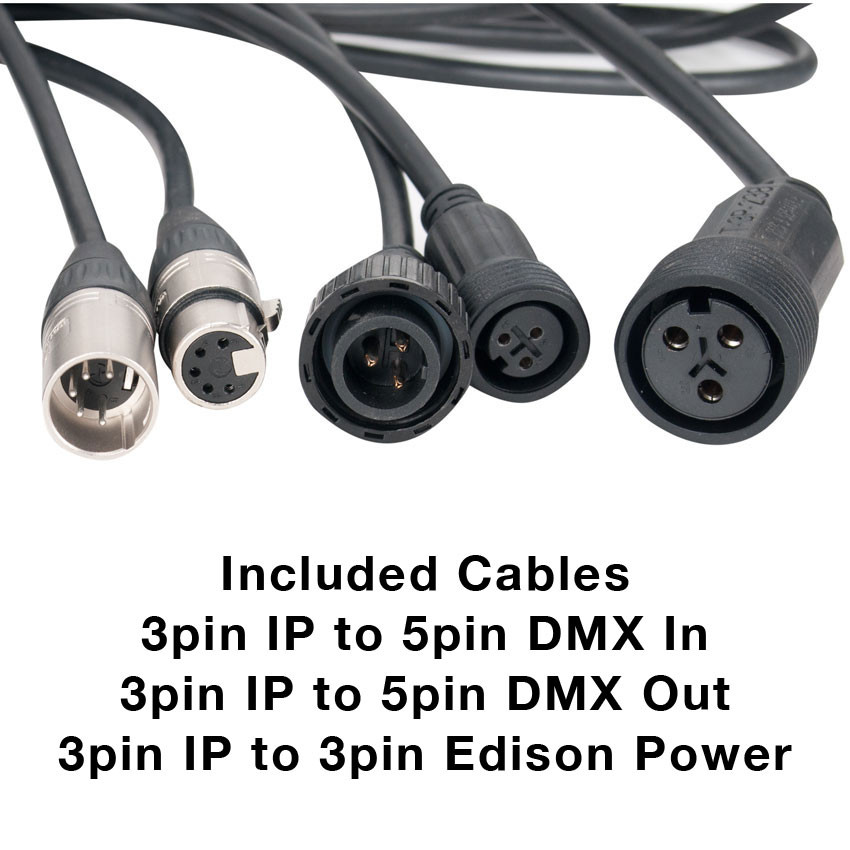

INCLUDED ACCESSORIES(1) 3pin IP to 3pin Edison Power Cable
(1) 3pin IP to 5pin DMX Input Cable
(1) 3pin IP to 5pin DMX Output Cable

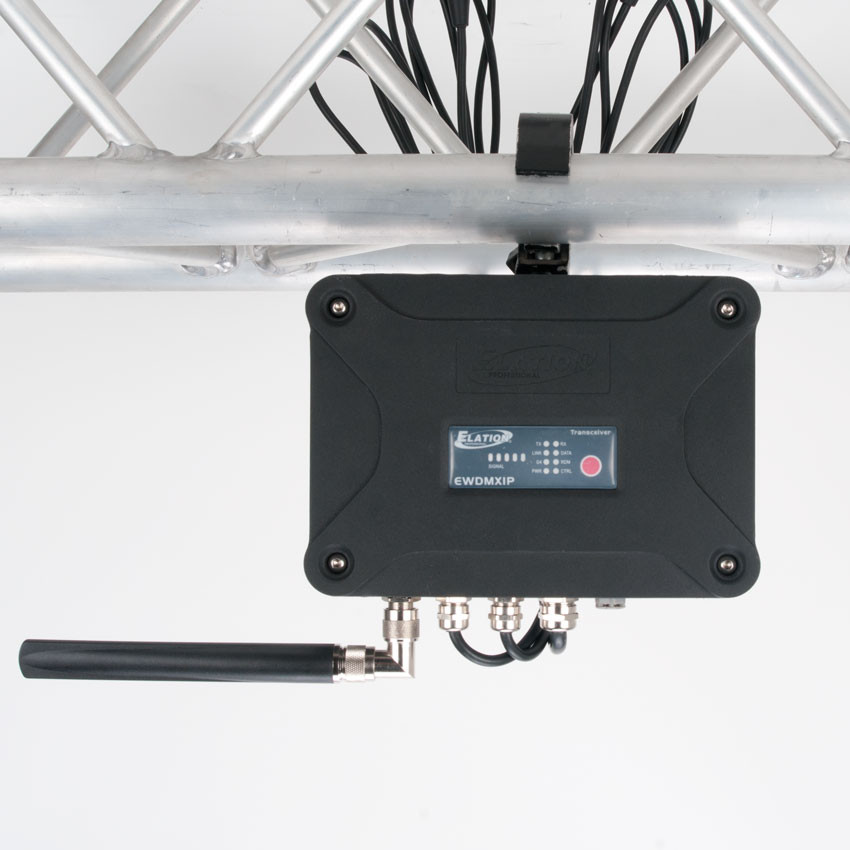

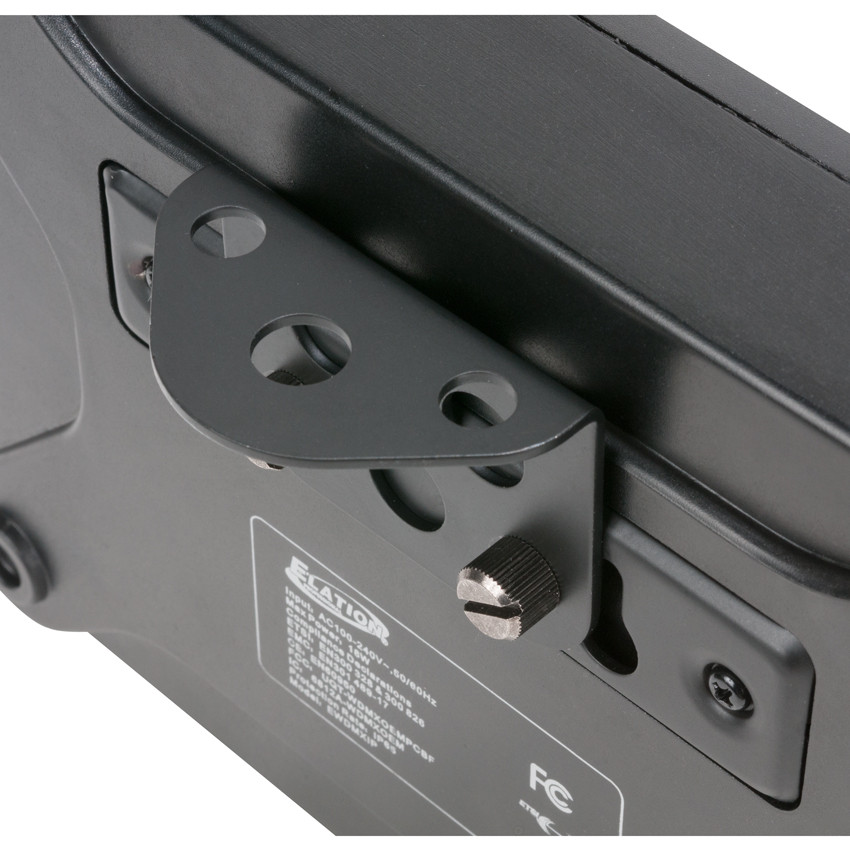

(1) Clamp Mounting Bracket & (2) Screws

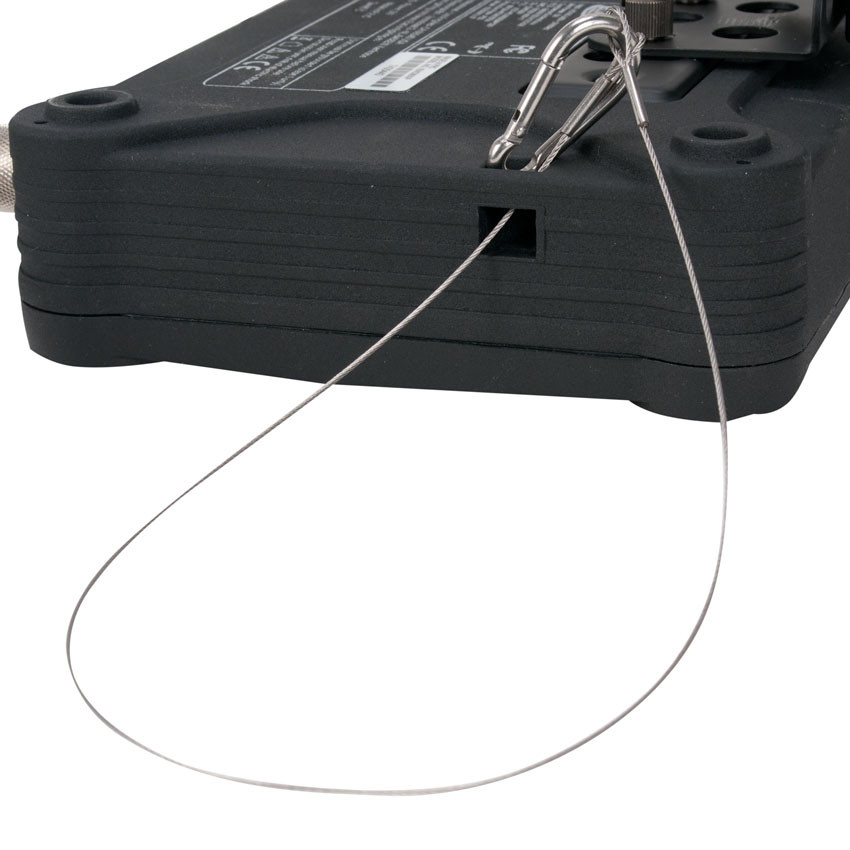

(1) Safety Cable
OPTIONAL ACCESSORIES:804090301390 - 3pin IP to Edison Plug Power Cable
804090301370 - 10 ft. (3m) 3pin IP to 3pin IP Power Extension Cable
804090301770 - 32.8 ft. (10m) 3pin IP to 3pin IP Power Extension Cable
804090301470 - 10 ft. (3m) 3pin Female DMX to 3pin Male IP Data Output Cable
804090301480 - 10 ft. (3m) 3pin Male DMX to 3pin Female IP Data Input Cable
804090301380 - 10 ft. (3m) 3pin Female to 3pin Male IP Data Extension Cable
804090301780 - 32.8 ft. (10m) 3pin Female to 3pin Male IP Data Extension Cable
