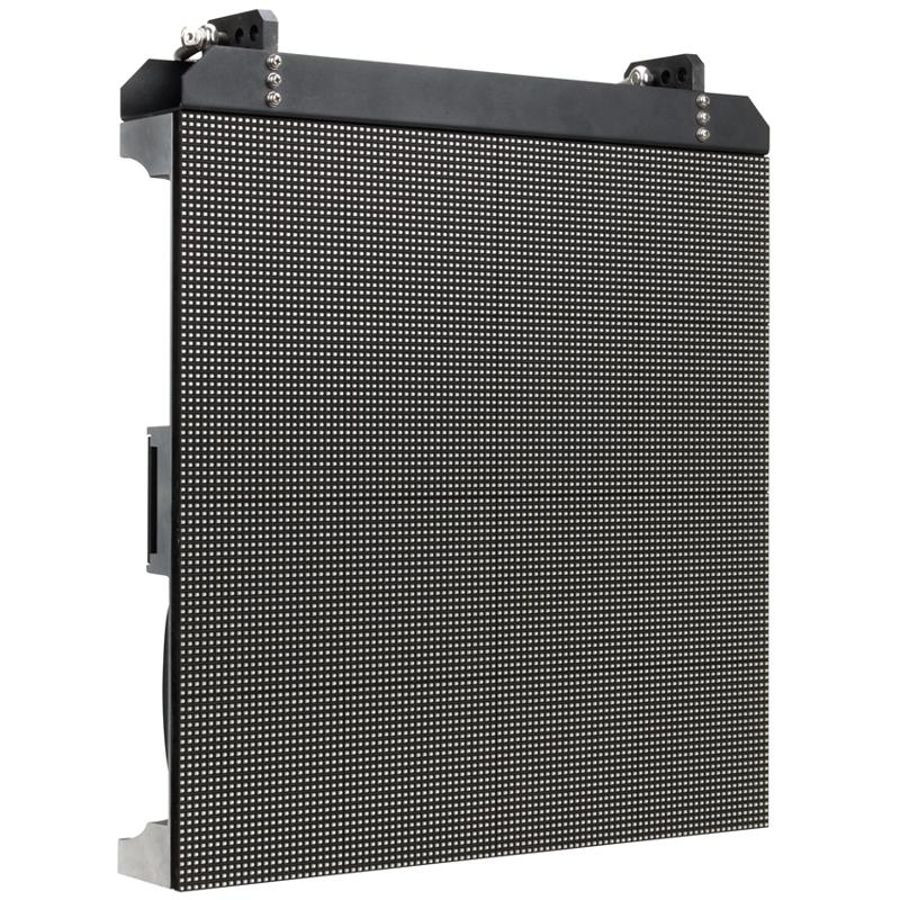

Elation EZ6 22.7'' Indoor LED Video Panel

Dropships Ships Directly From The Supplier
Elation Professional can usually ship this item directly to our U.S. customers after 1 to 3 business days processing time, depending upon their stock levels. Order now! We'll notify you promptly if we hear of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
Affirm Financing
Future Pay
    • Buy Now and Earn 3899 PDJ Bucks ($38.99)! Applies only to registered, domestic U.S. customers. Exact value may vary once logged in.
ELATION Lighting introduces the next breakthrough in its expanding line of affordable LED displays the EZ6 indoor LED video panel. EZ6 is a high resolution, 6mm pixel pitch, LED video panel. It is constructed of a die-cast aluminum frame with high precision CNC machining techniques. Because of its bright output and modular, light and easy to handle body it is ideal for permanent installations where hanging loads for screens are limited but brightness is required.

The EZ6 is ideal for use in halls, theatres, stages, clubs or any indoor public space where a high resolution / reliable video wall is required

Product Features:
• High resolution, high pixel density, produce high definition video
• Uniform color and high contrast, ensure a clear and sharp picture
• High precision die-casting aluminum frame, produces a flat and seamless video display
• Fan-less design with good heat dissipation
• Light and slim panel, makes it easier to handle and transport
• High stability and reliability, prolong lifespan of the display

Technical Specifications:
• Pixel pitch: 6mm
• 27,777 pixel density (pixel/m2)
• LEDs: Nationstar, RGB
• Dynamic scan, constant current driving mode
• Brightness: 1,800 NITS
• Viewing angle: H:120 ; V:120
• Minimum Viewing Distance 16.5' (5M)
• 14 bit gray scale
• Brightness adjustment: 256 levels
• Refresh rate: 960 Hz
• Calibration: Supported by Nova Star
• Tile size: 22.7" x 22.7" (576mm x 576mm)
• Tile resolution: 96 pixels x 96 pixels
• Tile weight: 24lbs. (11kgs)
• IP32
• Average power consumption: 200 W/m2
• Max power consumption: 590 W/m2
• 50,000 hours LED life span
• cETLus approved

Additional Information

ManufacturerElation Professional
Product ConditionNew
