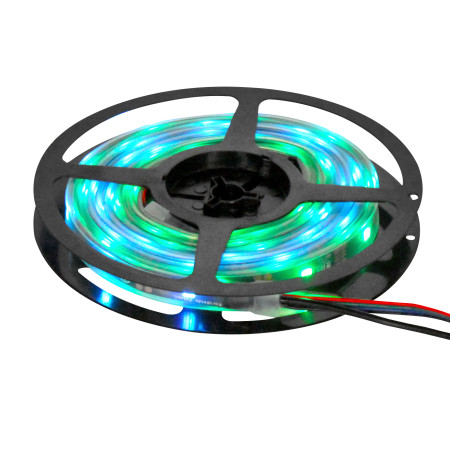

The FLEX PIXEL P40WP' is an outdoor rated 10 foot (3m) flexible LED pixel tape featuring (72) RGB SMD tri-color LED pixels (216 total DMX channels) spaced on 1.6" (40mm) centers, producing over 1 billion color possibilities with a 120 viewing angle, enclosed in an IP65 rated waterproof flexible cover which can be cut and extended every 4" (102mm), and mountable to most surfaces using Elation's FLEX CHANNEL' line of aluminum mounting tracks. (Replaces FLE742 with new LED 102-2 SMD.)
Each FLEX PIXEL P40WP tape is powered by an optional
FLEX PIXEL 5VPSU 5V universal auto switching power supply (110-240v), and can be controlled using one of Elation's optional LED tape drivers including
FLEX PIXEL DRIVER,
FLEX PIXEL IRC, or
EZ KLING, and is also compatible with
Kling Force LED,
DiGidot C4, and
MediaMaster.
FEATURES• IP65 Outdoor Rated Flexible LED Pixel Tape
• 10 foot (3m) Roll
• (72) RGB Tri-Color SMD LED Pixels
• (216) Total DMX Channels
• Pixels Spaced on 1.6" (40mm) Centers
• Cut and Extend Every 4" (102mm)
• 120 Viewing Angle
• Over 1 Billion Color Possibilities
PLEASE NOTEFLEX PIXEL P40WP LED tape is the replacement for FLEX PIXEL WP LED tape. Although FLEX PIXEL P40WP functions exactly the same, please note the color output is not guaranteed to exactly match the output of FLEX PIXEL WP. This should be taken into consideration when adding new tape to an existing installation.
SpecificationsSOURCE: (72) RGB SMD LED Pixels
PHOTOMETRIC DATA: 504 LUX 47 FC (per each 1m)
COLOR: Over 1 Billion Color Possibilities
CONTROL: (216) DMX Channels; ICS APA102 Protocol
SIZE / WEIGHT: Length: 10.0' (3m) Roll; Width: 0.57" (14.5mm); Vertical Height: 0.18" (4.5mm); Weight: 0.66 lbs (0.3 kg)
ELECTRICAL / THERMAL: DC 5V; 15W Max Power Consumption
APPROVALS / RATINGS: CE | IP65 | cETLus pending
