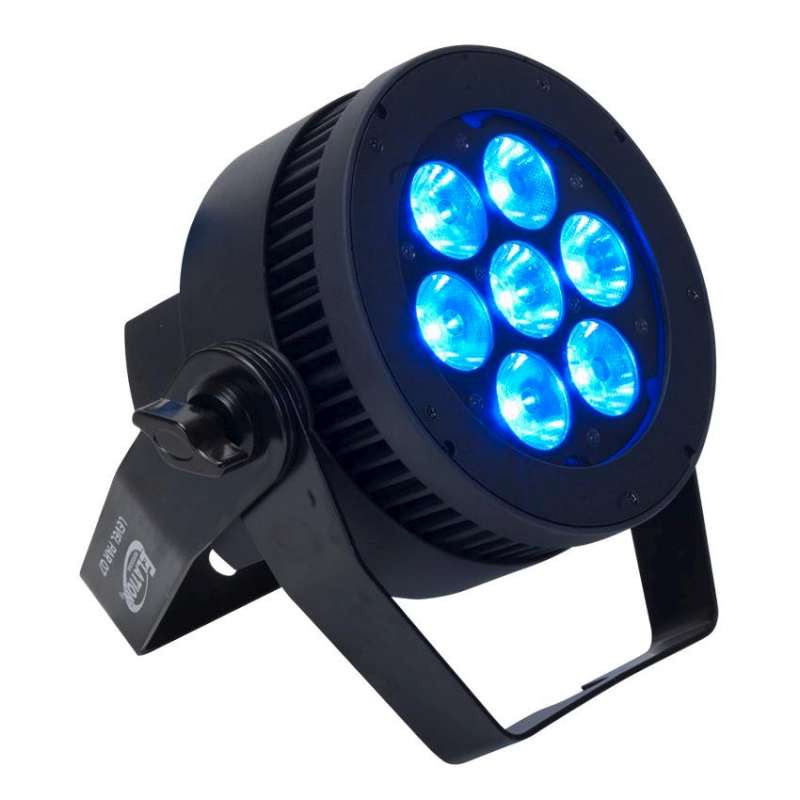

The new Level Q7' features (7) 15W QUAD color RGBW LEDs, 7 beam and 13 field angles, color correction (2,700K - 7,200K), electronic strobe (1-18 fps) and dimming (0-100%), flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base with dual yoke / floor stand, multiple unit power linking, 127W max power consumption, a multi-voltage universal auto switching power supply (120-240v), and gel frame, gel frame holder, and filter gel included.
FEATURES
7 Beam 13 Field Angles
2,700K - 7,200K Color Correction
Flicker Free Operation for TV and FILM
Rugged Die-Cast Aluminum Exterior
Rubber Padded Base with Dual Yoke / Floor Stand
Multiple Unit Power Linking

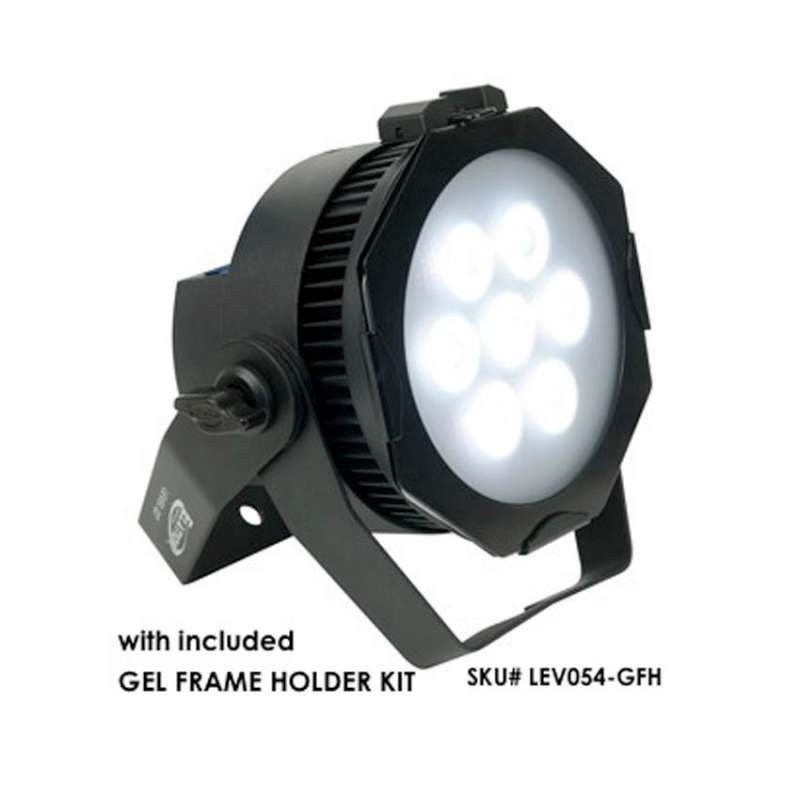

Gel Frame, Gel Frame Holder, and Filter Gel Included
SOURCE
(7) 15W QUAD Color RGBW LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
3636 LUX 388 FC @16.4' (5M)
EFFECTS
Electronic Strobe and Varying Settings
Color and Chase Macros
Electronic Dimming: 0% - 100%
CONTROL / CONNECTIONS
(4) DMX Channel Modes (4/5/7/9)

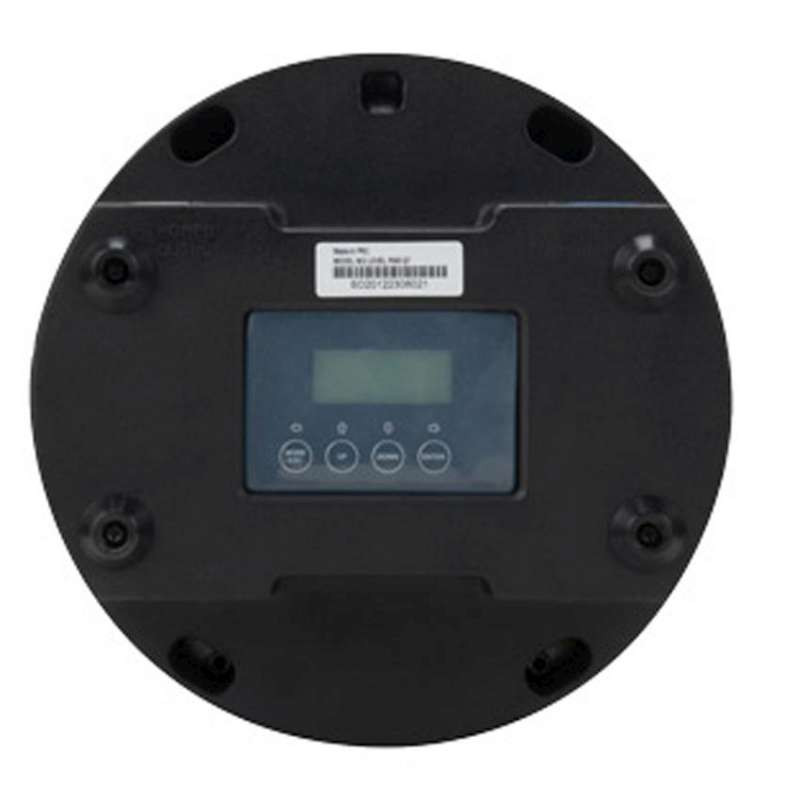

(4) Button Control Panel
LCD Menu Display

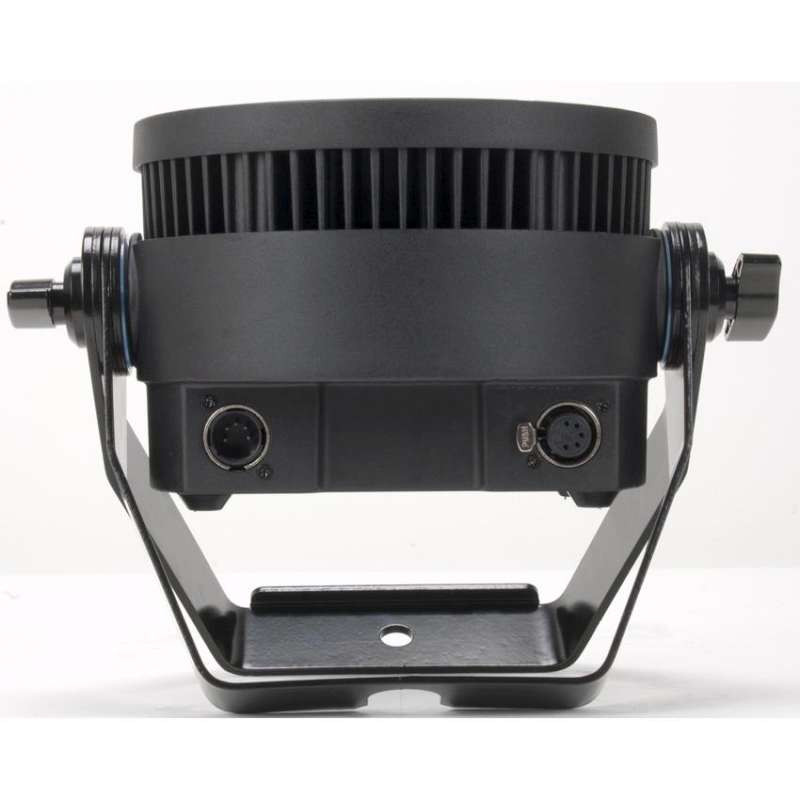

5pin DMX In/Out

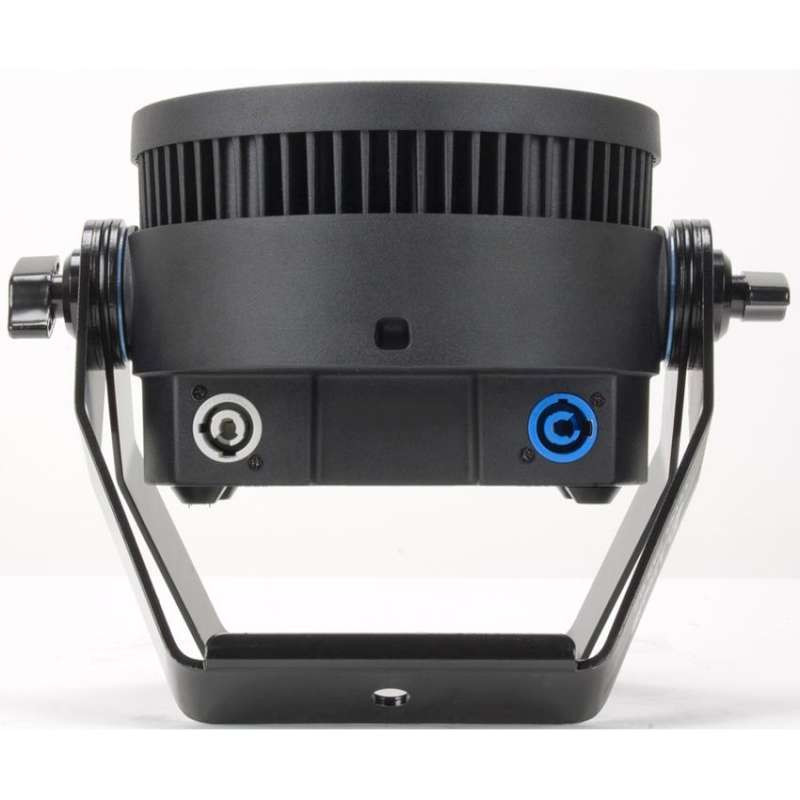

powerCON In/Out
SIZE / WEIGHT
Length: 11.0" (278.6mm)
Width: 5.5" (140.5mm)
Vertical Height: 10.2" (260mm)
Weight: 9.0 lbs. (4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
127W Max Power Consumption
Multiple Unit Power Linking
-13F to 113F (-25C to 45C)
APPROVALS / RATINGS
CE Approved
cETLus Approved
IP20 Rated
INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360)
