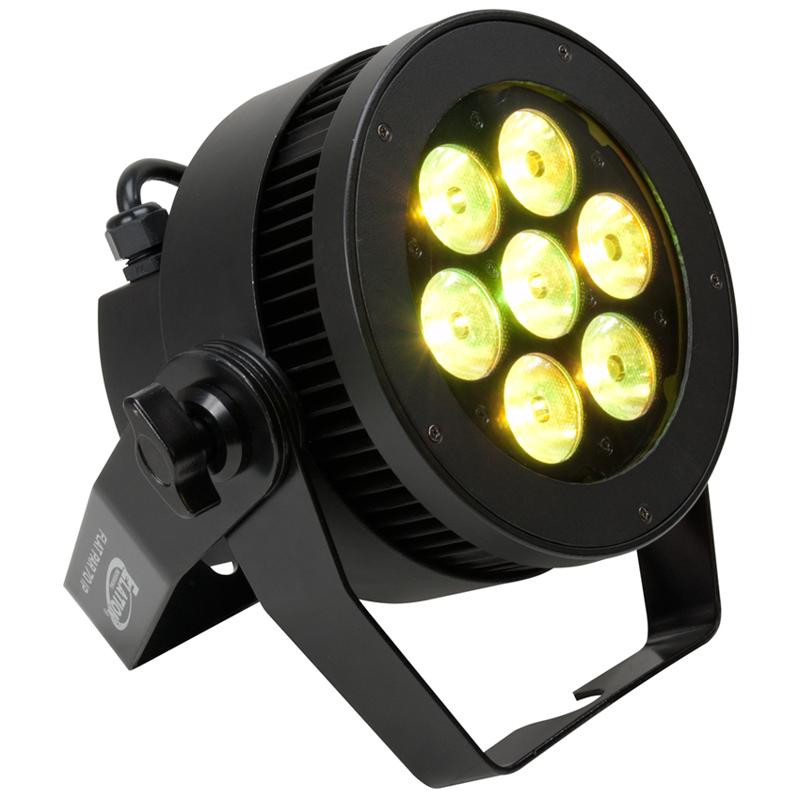

The new IP65 rated Level Q7 IP' features (7) 15W QUAD color RGBW LEDs, 7 beam and 13 field angles, color correction (2,700K - 7,200K), electronic strobe (1-18 fps) and dimming (0-100%), flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base with dual yoke / floor stand, multiple unit power linking, 127W max power consumption, and a multi-voltage universal auto switching power supply (120-240v)
FEATURES
IP65 Rated
7 Beam 13 Field Angles
2,700K - 7,200K Color Correction
Flicker Free Operation for TV and FILM
Rugged Die-Cast Aluminum Exterior
Rubber Padded Base with Dual Yoke / Floor Stand
Multiple Unit Power Linking
SOURCE
(7) 15W QUAD Color RGBW LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
3636 LUX 388 FC @16.4' (5M)
EFFECTS
Electronic Strobe and Varying Settings
Color and Chase Macros
Electronic Dimming: 0% - 100%
CONTROL / CONNECTIONS
(4) DMX Channel Modes (4/5/7/9)

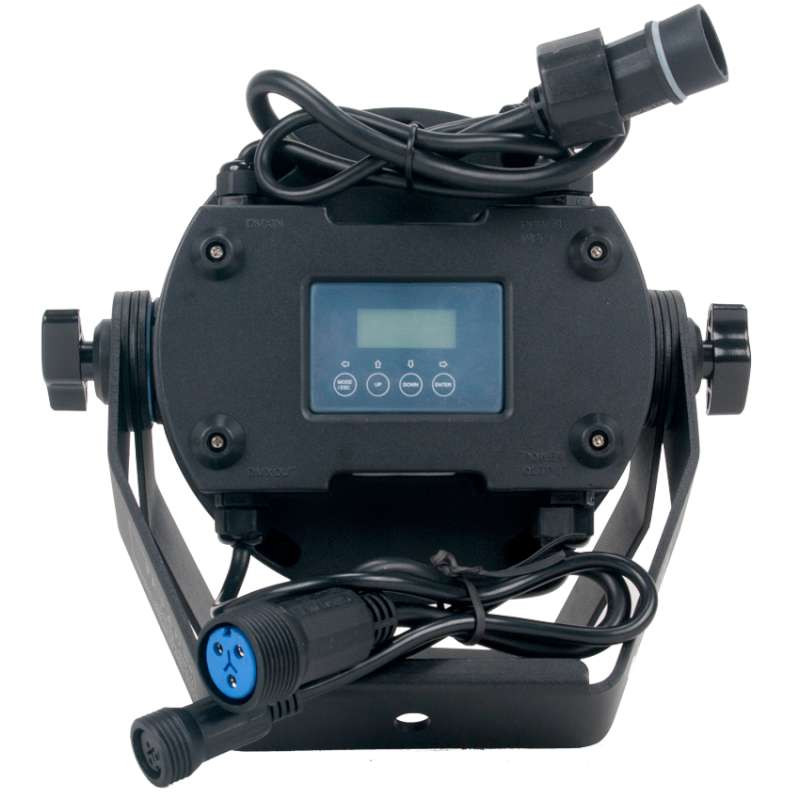

(4) Button Control Panel
LCD Menu Display
IP 3pin DMX In/Out
IP 3pin Power In/Out
SIZE / WEIGHT
Length: 11.0" (278.6mm)
Width: 5.5" (140.5mm)
Vertical Height: 10.2" (260mm)
Weight: 9.0 lbs. (4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
127W Max Power Consumption
Multiple Unit Power Linking
-13F to 113F (-25C to 45C)
APPROVALS / RATINGS
CE Approved
cETLus Approved
IP65 Rated
INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360)
INCLUDED ITEMS
(1) IP Power Cable
(1) IP 3pin DMX Cable
(1) Safety Cable
