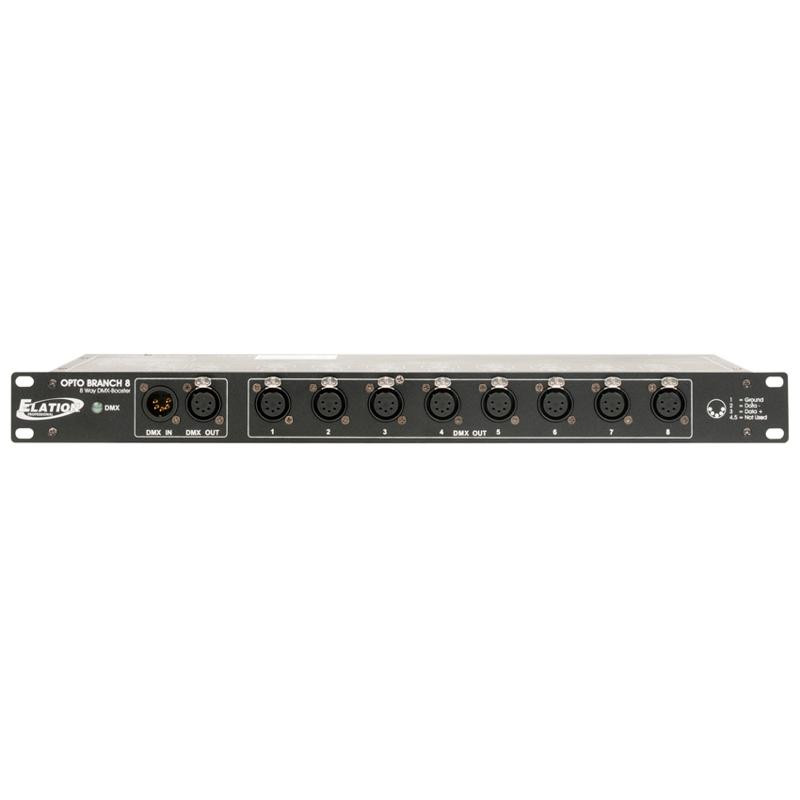

The OPTO BRANCH 8' is a 19" single rack space, 8-way DMX distributor/booster with 5-pin XLR input and output jacks. This unit takes the incoming DMX signal and splits it to eight (8) separate outputs, each providing a total electrical isolation of up to 1000V between different branches in a daisy chain group. This greatly decreases problems with ground loops and efficiently buffers and magnifies the DMX signal, making it more accurate and reliable. All outputs include 5-pin XLR sockets, which are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal.
. 8 Way DMX Data Splitter
. Fully DMX-512 (1990) Compliant
. Buffers and Distributes DMX Data Reliably
. DMX Status Indicator
. (1) 5pin Neutrik XLR Isolated Input
. (1) 5pin Neutrik XLR Passive Loop Output
. (8) 5pin Neutrik XLR Isolated Outputs
. Power: Auto Switching, 100-240V 50/60Hz

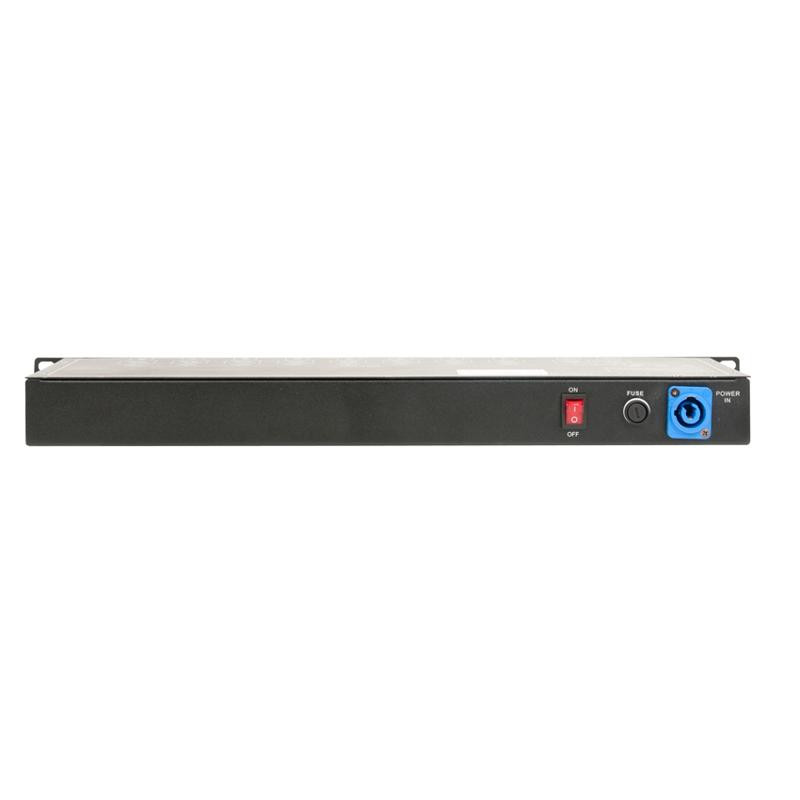

. powerCON power input
. On/Off Power Switch
. 1U 19" Rack Mount
. Dimensions: 19" x 1.75" x 5.71" (482.5 x 44.5 x 145mm)
. Weight: 4.4lbs (2kg)
NOTE: Specifications and improvements in the design of this unit are subject to change without any prior written notice.
