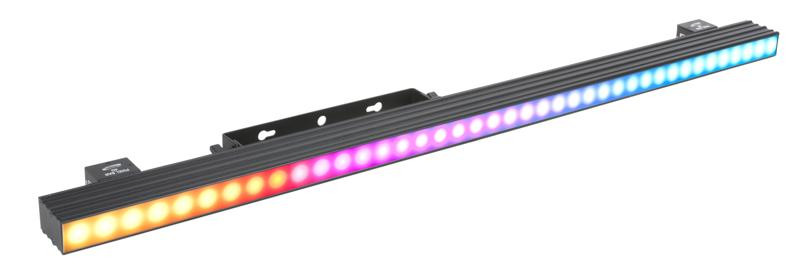

The Pixel Bar 40' features (40) 3-in-1 SMD LEDs producing a 25mm pixel pitch, a 120 viewing angle, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, 120 DMX channels, DC24V, 16W max power consumption, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and FILM, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.
FEATURES
25mm Pixel Pitch
120 Viewing Angle
850 NITs / 2000Hz Refresh Rate
Extruded Aluminum Housing
SOURCE
(40) 3-in-1 SMD LEDs
PHOTOMETRIC DATA
82 LUX (8 FC) @1.6 ft. (0.5m) 120 Full ON
COLOR

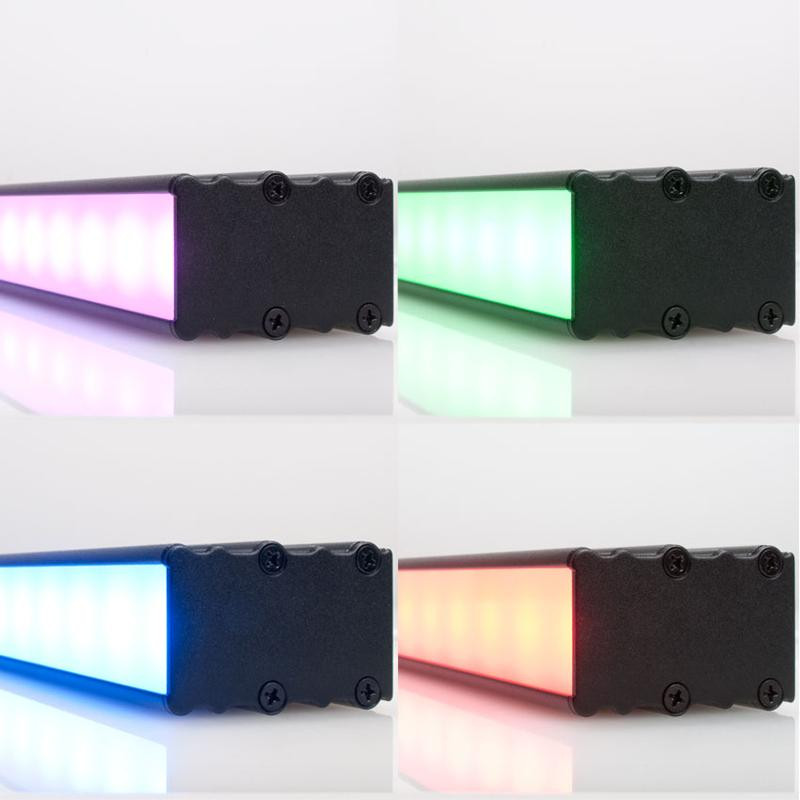

16.7 Million Colors / 8 Bits Per Color
CONTROL / CONNECTIONS
120 DMX Channels

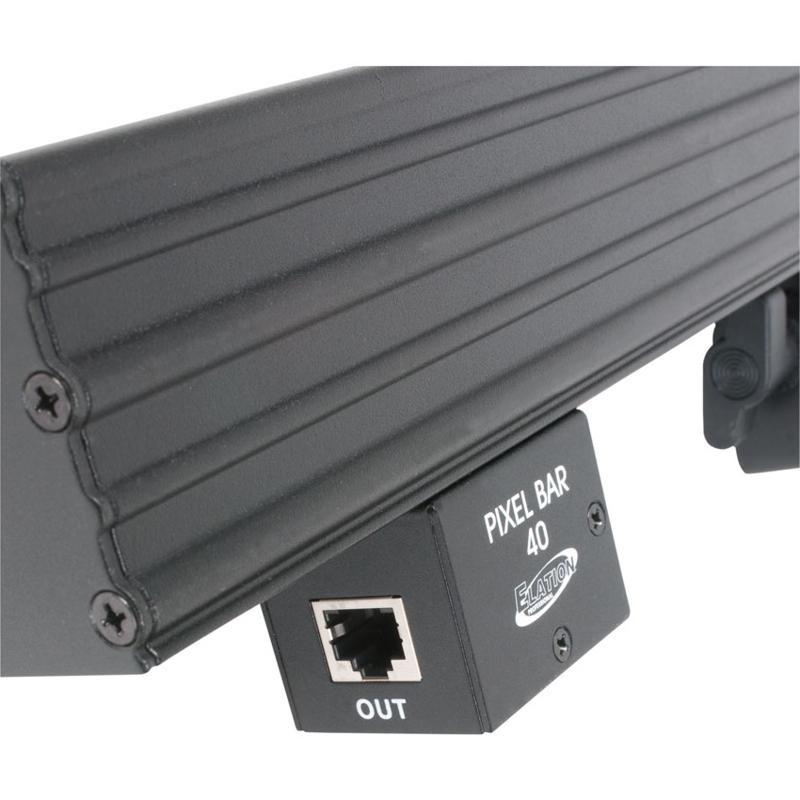

(1) RJ45 CAT5e Inputs / (1) RJ45 CAT5e Outputs

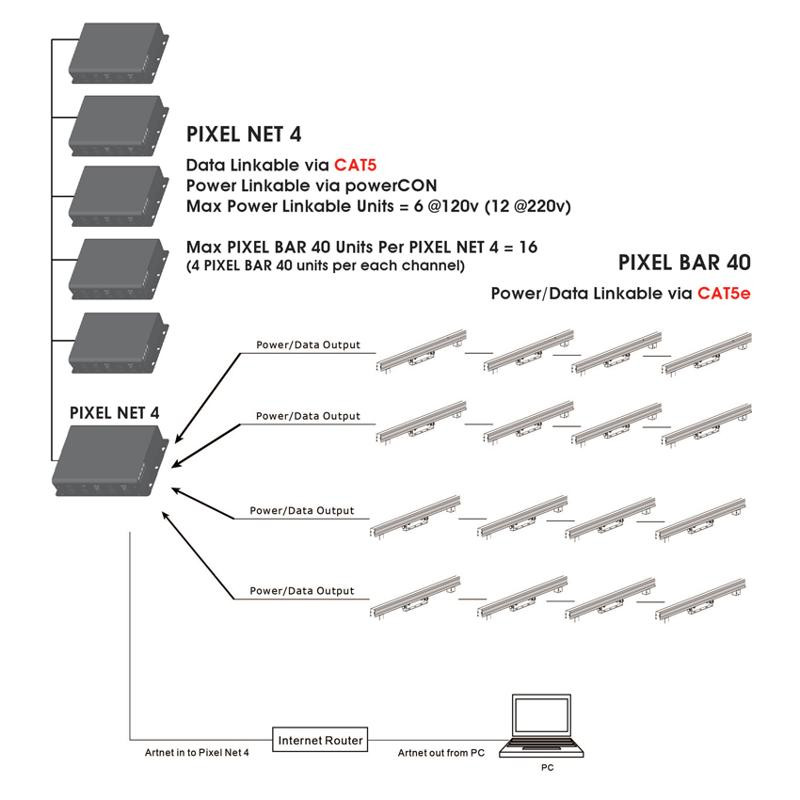

Multiple Unit Linkable (16 units per PIXEL NET 4' device)
SIZE / WEIGHT
Length: 39.4" (1000mm)
Width: 1.5" (38.2mm)
Vertical Height: 3.6" (92.6mm)
Weight: 6.0 lbs. (2.7kg)
ELECTRICAL / THERMAL
DC-24V
16W Max Power Consumption
32F to 104F (0C to 40C)
