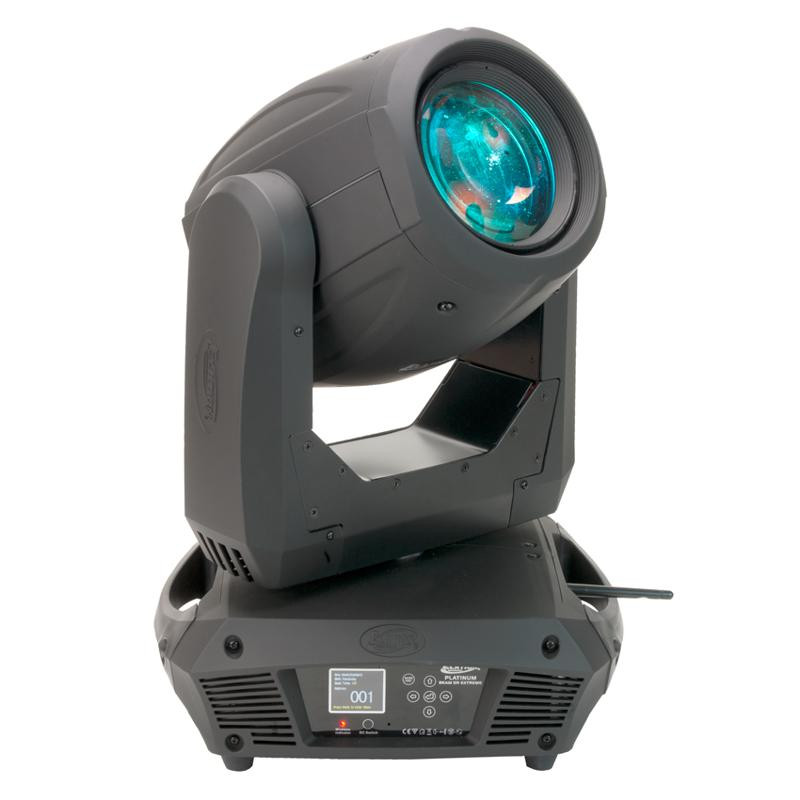

Elation Platinum Beam 5R Extreme with 189W Platinum 5R Lamp

elation platbeam5rextreme
elation platbeam5rextreme Elation Platinum Beam 5R Extreme with 189W Platinum 5R Lamp Elation Platinum Beam 5R Extreme with 189W Platinum 5R Lamp Elation Platinum Beam 5R Extreme with 189W Platinum 5R Lamp
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Usually ships in 1-2 days from Elation Professional
Free Shipping FREE Shipping
$2,999.99
VIP Price:
The new Platinum Beam 5R EXTREME' features the 189W Platinum 5R lamp, a 3 sharp pin spot beam, 8 facet rotating prism and frost effects, super fast 16 bit 3-phase pan/tilt motors, strobe (1-18 fps), dimming 0-100%, and focus, (12) colors including UV, CTO, CTB, and white, (8) metal rotating, indexing, interchangable gobos, flicker free operation for TV and FILM, internal EWDMX wireless DMX receiver, remote device management protocol support, 3pin and 5pin DMX in/out and powerCON in connections, (6) button touch control panel, 350W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).



FEATURES
3 Sharp Pin Spot Beam
CTO and CTB Color Correction
8 Facet Rotating Prism and Frost Effects
Super Fast 16 bit 3-Phase Pan and Tilt Motors
Flicker Free Operation for TV and FILM
Internal EWDMX Wireless DMX Receiver
Remote Device Management Protocol Support

SOURCE
189W Platinum 5R Lamp
2,000 Hour Average Life

PHOTOMETRIC DATA
100,100 LUX 9,299 FC @49.2' (15M)

EFFECTS
Frost
Motorized Focus
Strobe (1-18 fps)
Electronic Dimming: 0% - 100%
8 Facet Rotating Prisms and Macros

COLOR

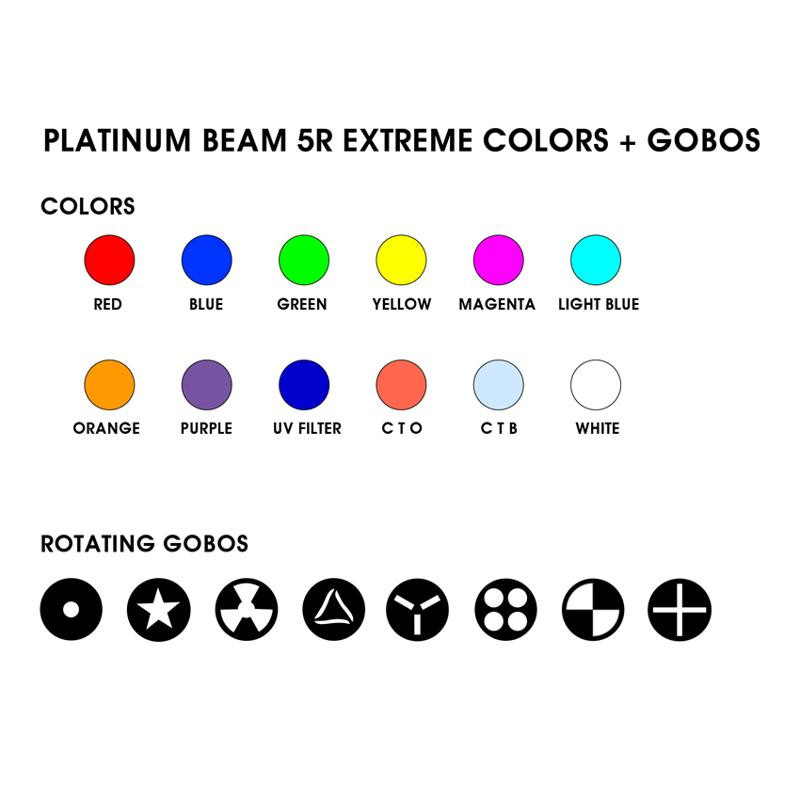

(12) Colors Including UV, CTO, CTB + White

GOBOS
(8) Metal Rotating, Indexing, Interchangable Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (12/14/18)
Remote Device Management
Pan Movement: 540/630 / Tilt Movement: 270

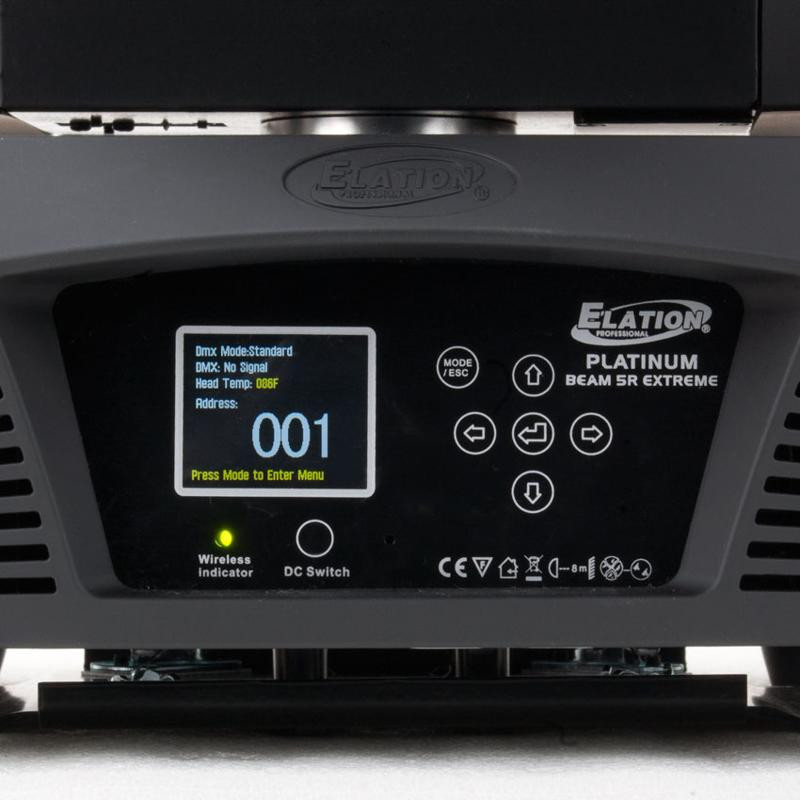

6 Button Control Panel
Full Color 180 Reversible LCD Menu Display
16 Bit 3-Phase Pan/Tilt Motors

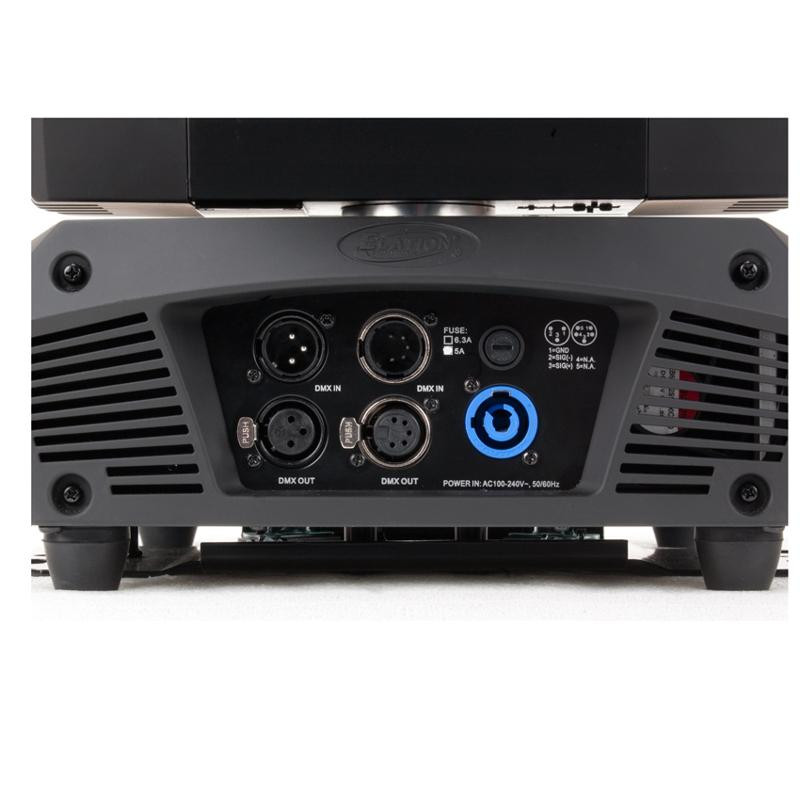

3pin & 5pin DMX In/Out
powerCON In
Internal EWDMX Wireless DMX Receiver

SIZE / WEIGHT
Length: 13.9" (352mm)
Width: 13.0" (329mm)
Vertical Height: 20.0" (509mm)
Weight: 44.0 lbs. (20.0 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
350W Max Power Consumption
14F to 113F (-10C to 45C)

APPROVALS / RATINGS
CE Approved
cETLus Approved
IP20 Rated

INSTALLATION
Rigging: Omega Bracket
Working Position: Flat Surface / Inverted (180)

INCLUDED ITEMS
(2) Omega Brackets
(1) 3pin XLR Cable
(1) powerCON Cable
(1) Safety Cable

Additional Information

UPC837874016017
SKUPLATBEAM5REXTREME
ManufacturerElation Professional
Price$2,999.99
Product ConditionNew
