elation platinms5p
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon

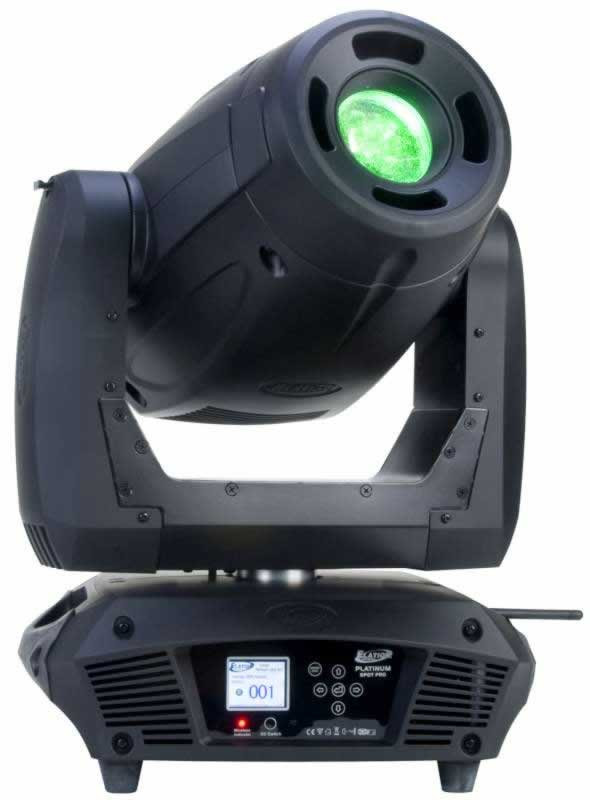

The Elation Platinum Spot 5R Pro offers double than just your regular CMY Zoom Spot Moving Head. The Platinum Spot 5R Pro offers double the output of a 250 fixture and includes increased speed on all motors. This will be worth your investment.

Features Include:
. CMY Color Mixing System 16bit
. Variable Zoom ( 4 to 1)
. Comparable To 575 Fixture And
More Than The Lamp Life
. EWDMX Wireless DMX Receiver Built In
. Double the Output of 250 Fixture
. Increased Speed On All Motors
. Compact 1/2 The Size Of 575 Fixture
- 1/3rd Smaller Than A 250
. Less Weight 1/2 The Weight Of 575 Fixture
. Energy Efficient Less Than 1/2 The Power
Consumption Of A 575
. Superior Optics Flat / Even Light Field
And Improved Output
. Hybrid Technology - Spot / Wash
. Featuring New Philips MSD Platinum 5R Lamp

Specifications Include:
• CMY 16bit Color system
• 8 Dichroic Colors
• 22 Gobos
• 8 Rotating Replaceable Rotating / Indexing Gobos
• 14 Static Gobos
• Gobo Size 14mm OD / 8mm ID
• 3 Facet Rotating Prism
• Motorized Iris
• 11 to 42 Variable Zoom Beam Angle
• Variable Frost Filter (Hybrid Effect for Wash)
• Motorized Focus
• Variable speed Shutter / Strobe
• Mechanical Dimmer 0-100%
• EWDMX Wireless DMX receiver built in
• Pan/Tilt: 540/630 x 265
• 23/21/34 3 x DMX Channel Modes
• 3-pin & 5-pin DMX
• Power: 305W MAX / 120v-240V 50/60hz
• Lux 6,350 / 590 fc @ 16'
• 42 lbs
• 14.6" x 14.5" x 18.4"Size
• Lamp: MSD Platinum 5R Philips 2,000hr

Additional Information

ManufacturerElation Professional
Product ConditionNew - On Clearance
