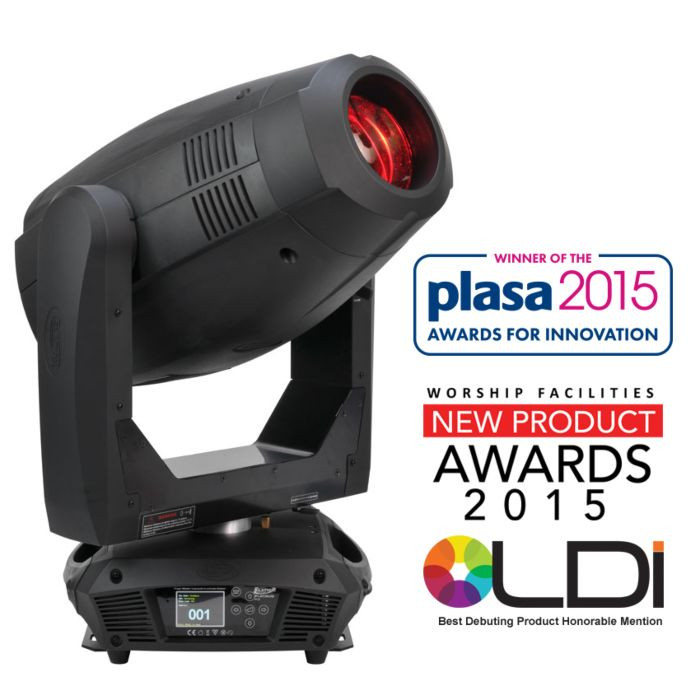

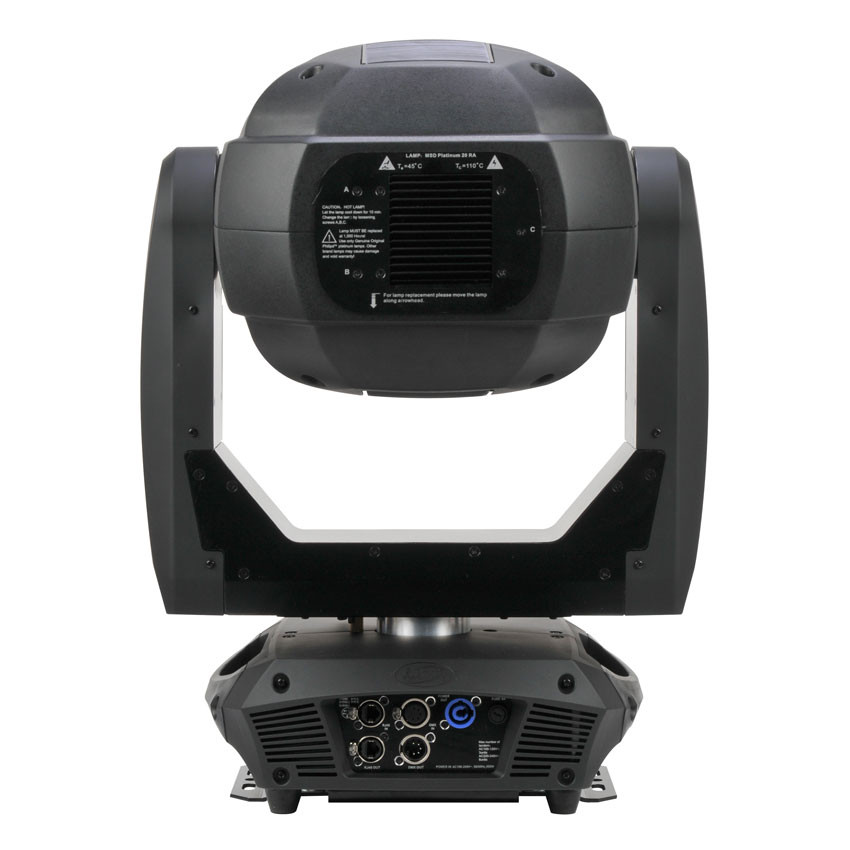

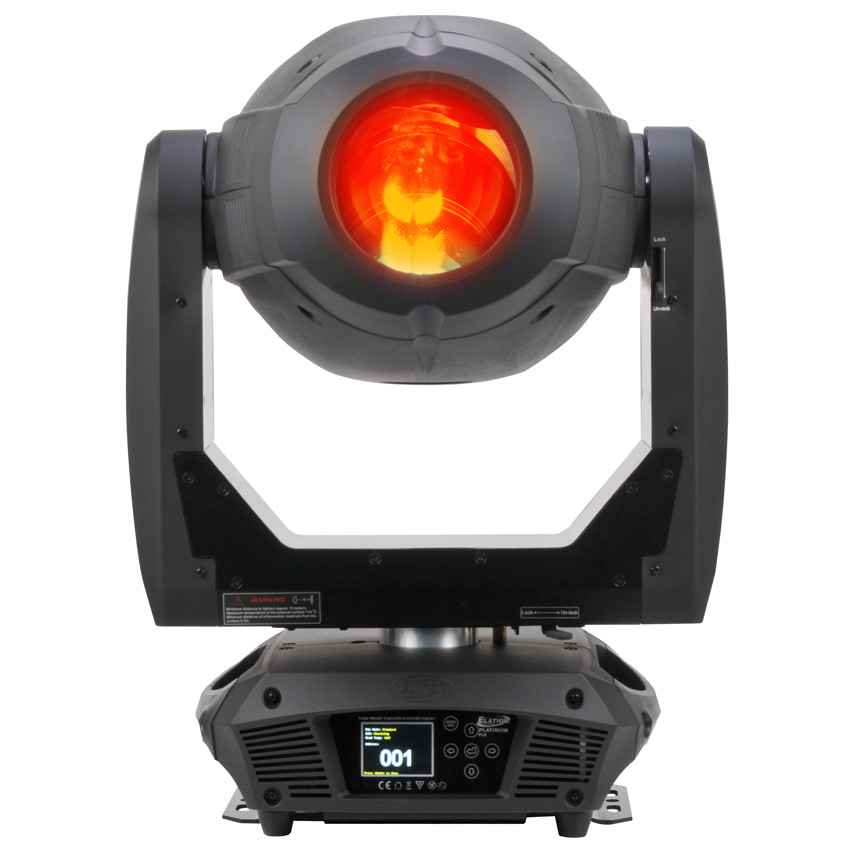

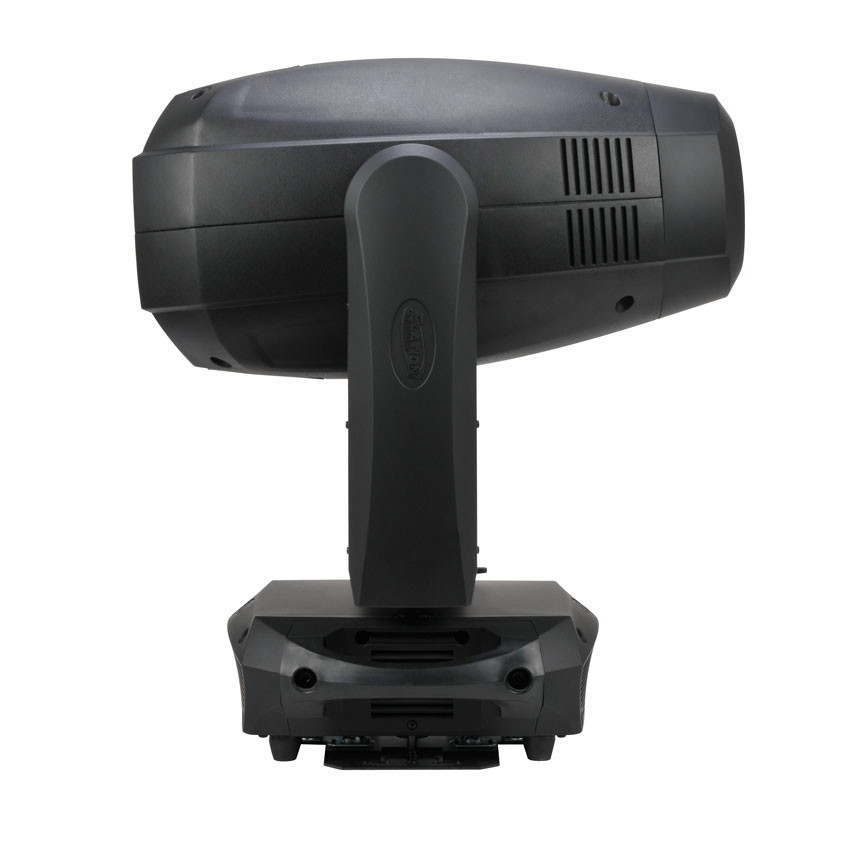

Elation PLATINUM FLX 470W Platinum 20R Spot, Beam, CMY Moving Head

Features
• Patent Pending 3-in-1 Beam, Spot, and Wash Luminare
• Comparable Output to 700-1,200W Fixtures
• Minimal Lux Loss in Spot Mode
• 1.8 - 18 Beam and 2.9 - 25 Spot Zoom
• 6 - 42 Zoomable Wash / Frost Filter
• 6-Way Linear and 8-Facet Rotating Prisms
• Bi-Directional Animation and Zoomable Wash / Frost Effects
• Full CMY Color Mixing and Linear CTO Color Correction
• RDM, Art-NET and sACN (DMX Over Ethernet)

Specifications
SOURCE
Philips' MSD Platinum 20R 470W Lamp
23,000 Total Lumens, 7,800K, 80CRI
1,500 Hour Average Lamp Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
19,133 Lumens Beam Mode / 11,262 Lumens Spot Mode
360,000 LUX 33,444 FC @32.8' (10m) (1.8 Beam)
165,500 LUX 15,375 FC @32.8' (10m) (2.9 Spot)

EFFECTS
6-Way Linear and 8-Facet Rotating Prisms
Bi-Directional Animation Effect
6 - 42 Zoomable Wash / Frost Filter
Strobe and Dimming

COLOR
Full CMY Color Mixing
Linear CTO Color Correction
10 Dichroic Colors Including UV and CTB

GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Gobos
(6) Static-Stamped Gobos (Indexing Wheel)

CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 26 / 37)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180 Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET, sACN)
powerCON Power In

SIZE / WEIGHT
Length: 18.3" (466mm)
Width: 20.9" (532mm)
Vertical Height: 30.0" (762mm)
Weight: 75.0 lbs. (34.0 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
740W Max Power Consumption
14F to 113F (-10C to 45C)

APPROVALS / RATINGS
CE | cETLus | IP20

California Prop 65 - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
