The new Platinum Profile 35 PRO features the MSR Platinum 35, 800-watt lamp from Phillips', 16-bit resolution on all motor functions, 4 Blade Framing system w/ rotation, 2 gobo wheels with a total of 6 interchangeable, rotating, and indexing glass gobos, 3 fixed indexing gobos and a 160 animation effect, variable CMY color mixing and CTO, a static color wheel with 8 dichroic colors including UV and CTB, 3 facet rotating / indexing prism, frost filter, motorized focus / zoom system with an 8 to 50 beam angle, motorized 4 blade framing, pan/tilt lock, built-in EWDMX wireless DMX receiver, 3 and 5pin DMX connections, full color 180 reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).
VIDEO
FEATURES
• 1200-Watt Comparable Lumens Output
• Motorized 8 - 50 Zoom + 4 Blade Framing system w/ rotation
• Built-In EWDMX Wireless DMX Receiver
SOURCE
• Phillips' 800-Watt MSR Platinum 35
• 750 Hour Average Life
PHOTOMETRIC DATA
• 20,101 Lumens, 7,400K, >60CRI
• 18,750 LUX @10M 8 Min Zoom
• 812 LUX @10M 50 Max Zoom
EFFECTS
• 4 Blade Framing system
• 160 Animation Effect
• Frost Filter
• 3-Facet Prism and 16 Prism Macros
• Strobe and 5% - 100% Iris
• Mechanical Dimming: 0% - 100%
COLOR
• Variable CMY Color Mixing & Variable CTO
• 8 Interchangeable Dichroic Colors Including UV + CTB
GOBOS
• 2 Gobo Wheels
• 6 Interchangeable / Rotating / Indexing Glass Gobos
• 3 Fixed / Indexing Gobos
• Size: OD 29mm / ID 24mm

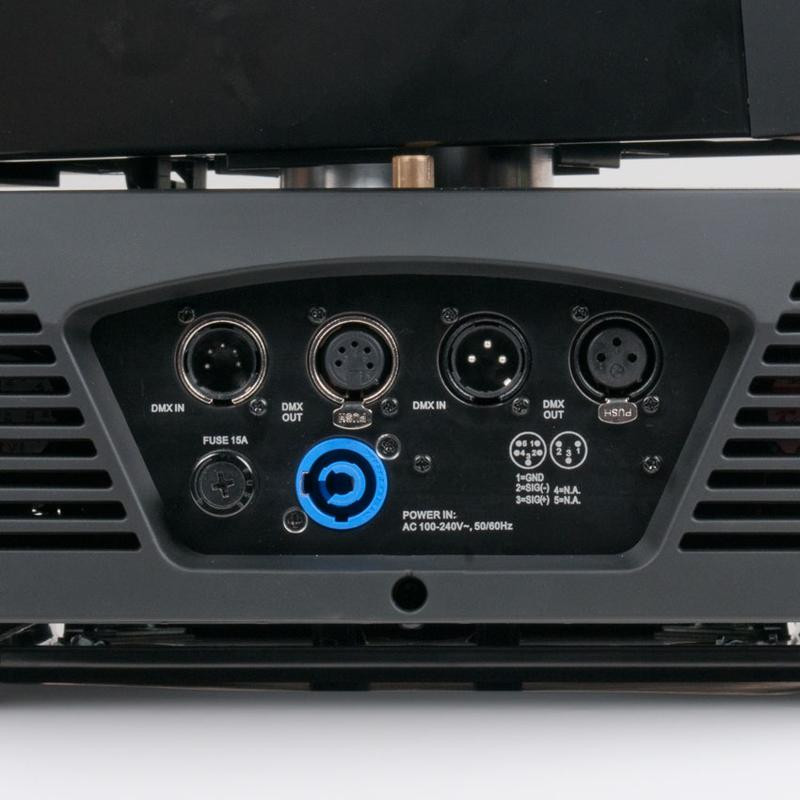

CONTROL / CONNECTIONS
• 3 DMX Channel Modes (37/39/60)
• 3pin & 5pin DMX In/Out

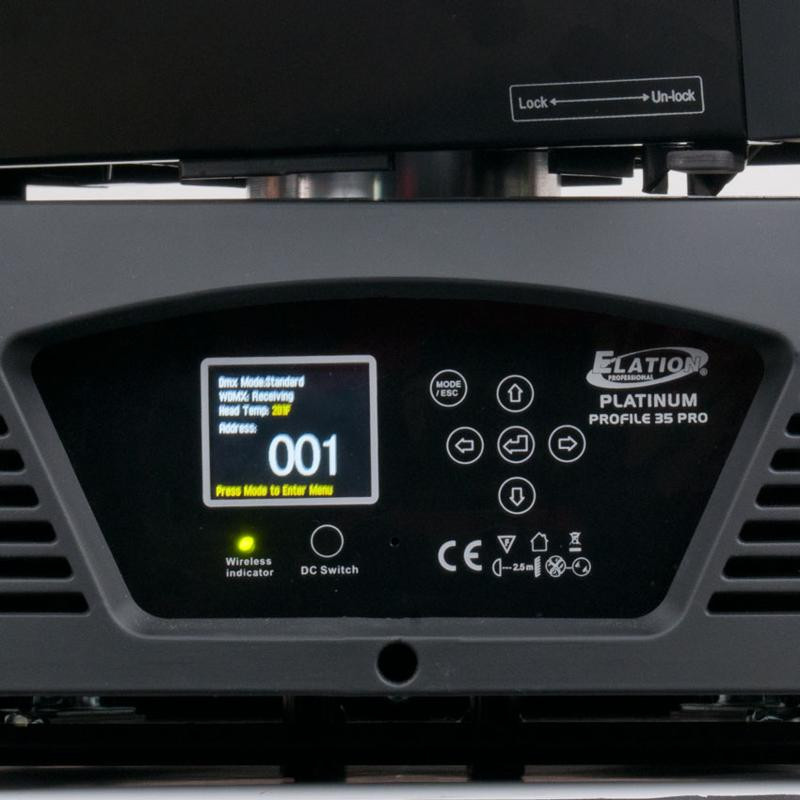

• 6 Button Touch Control Panel
• Full Color 180 Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement
• powerCON Power In
SIZE / WEIGHT
• Length: 19.9" (506.5mm)
• Width: 17.6" (447.3mm)
• Vertical Height: 28.6" (726.5mm)
• Weight: 88.2 lbs. (40kg)
ELECTRICAL / THERMAL
• AC 100-240V - 50/60Hz
• 1044W Max Power Consumption
• -13F to 113F (-25C to 45C)
APPROVALS / RATINGS
• CE Approved
• cETLus Approved
• IP20 Rated
INCLUDED ACCESSORIES
• powerCON Cable
• Safety Cable
• 3pin DMX Cable
